Home > Products > DC converter module > Battery charger DIY 3.3V to 5 dc converter module

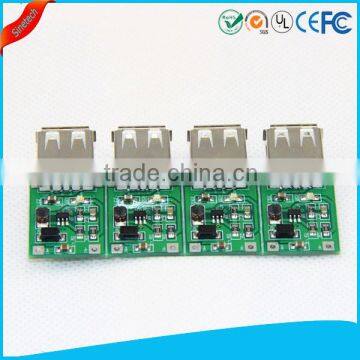

Battery charger DIY 3.3V to 5 dc converter module
- 500 Square Meter / Square Meters per Month
- Shenzhen
- T/T Credit Card
You May Like
-
LM2596S dc to dc step down power converter module adjustable
-
Adjustable dc buck power converter module with LM2596S chip
-
12V to 5V dc to dc converter module adjustable
-
Power supply adjustable dc to dc step down LM2596S converter
-
Boost DC-DC 0.9V~5V to 5V Adjustable Power Supply Module
-
DC-DC Converter Step Up Boost Module Power Supply 0.9V~5V to 5V with USB Output 600MA
Product Details
Place of Origin | Guangdong, China | Brand Name | SINETECH | |
Model Number | Converter-D011 | Output Power | 1 - 50W | |
Output Type | Single | Size | 54mm* 25mm* 18mm | |
Weight | 5g | Input Voltage | 0.9-5V | |
Output Voltage | 5V | Type | DC/DC Converters | |
Output Frequency | 50Hz/60Hz | Output Current | 600mA |
Product Description
Performance and features:
1),This module uses high-performance chip , performance is better than the general module .
2),Enter any 0.9V ~ 5V DC voltage output 5V DC voltage can be stable , with a single AA battery can deliver up to 200 ~ 300MA current , two AA batteries can be 500 ~ 600MA of output current, for your phone , camera , microcontrollers and digital products supply.
3),Industrial temperature range : -10 ℃ --- + 85 ℃
4),High conversion efficiency, up to 96%
5),With USB female seat , wide range of uses
6),The ultra-small size (PCB board 25mm * 18mm), with the installation of a variety of small equipment in
7),with working lights
Useage:
1),DIY mobile power: When you travel or travel always feel your cell phone, MP3, MP4, PDA, PSP is not enough electricity, and you have extra batteries, you can consider yourself DIY a mobile power; as long as this module plus your choice of [a section of lithium or 2-3 NiMH] can output 5V voltage for your phone, MP3, MP4, PDA, PSP charging.
2),Adjust voltage: If you need different voltage when the power in the product design, the device requires a 5V power supply, then choose this module will be your best choice.
3),Power Supply: When your power is very unstable, high and low, but when your device needs 5V supply, and that the choice of this module will be your best choice.
4),Are the power supply modules short-circuit protection? I accidentally entered a short-circuit when in use will burn it?
A: No short-circuit protection, but we can put self-recovery series fuse at the input end if you need to short-circuit protection.
Notes: Since some manufacturers for their own interests, will be added in MP3,MP4,mobile phones and other products in the identification resistor.So, if you find you can not use, please ascertain whether the addition of the identification resistor.
Data show:
Product details:
Certification:
