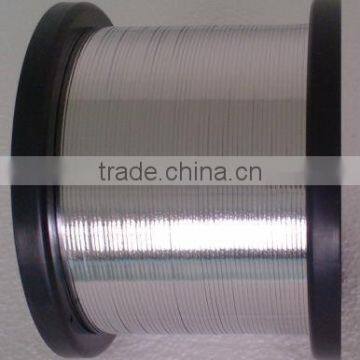

Solar Panel Raw Material Sn60Pb40 Tabbing Wire for Solar Cell Soldering
- TIANJIN
- T/T Credit Card
You May Like
-
Solar Material Tabbing Ribbon for Machine Automatic Solar Cell Soldering
-
Easy Soldering Tabbing Wire for Solar Panel Solar Cell Soldering Made in China
-
Top Quality Solar Material Tabbing Wire for Solar Panel Solar Cell Soldering Made in China
-
Sn60Pb40 Solar Panel Tabbing Wire for Solar Cell Soldering Made in Baoding
-
Solar Cell Tab Ribbon for Solar Panel Solar Cell Soldering Made in China
-
Tinned Copper Solar Cell Tab Wire for Solar Panel Made in Baoding
Product Details
| Place of Origin | Hebei, China | Brand Name | Edel | |
| Model Number | Sn60Pb40 |
Product Description
Specifications
1. Raw material TU1 Cu purity>99.99%2. Coating alloy: Sn/Pb 60/40
3. TUV approved tabbing wire
4.Yield strength<65MPa
Tabbing wire commonly connects the positive and negative sides of the solar cells in series.
Mechanical Property:
1,Elongation: E-Soft≥20% U-Soft≥20%
2,Tensile strength:≥170MPa
3,Side camber: L≤3mm/1000mm
4,Soldering tin melting point: 180−230°c
Core Copper of TU1 Off-Cu :
1,Copper Purity ≥99.97%, Oxygen≤10ppm
2,Resistivity:ρ≤0.0172Ω • mm2/m
Electrical Resistivity of Ribbon:
(2.1−2.5)X10-2 • mm2/m
Plated Thickness:
15-25um per side
Tabbing wire
| 0.20*1.5 | 0.28*1.5 | 0.25*1.6 |
| 0.22*1.5 | 0.30*1.5 | 0.18*1.8 |
| 0.23*1.5 | 0.23*1.6 | 0.20*1.8 |
| 0.25*1.5 | 0.18*1.6 | 0.23*1.8 |
| 0.26*1.5 | 0.20*1.6 | 0.18*2.0 |
1. 4.5kgs per spool with vacuum packing, 4 spools in a carton box with dustproof & moistureproof & shockproof &waterproof for long distance transportation. 2 Fix-length packing
Samples can be delivered within 3-5 workdays ; Design offer service; OEM service
Baoding Edel New Energy Corp.,Ltd is a high-tech enterprise which specializes in R&D, production and sales of photovoltaic products , main products are tabbing wire, bus wire, junction box and aluminum paste.
What is our payment trem?
1.TT30% in advance, balance before shipment. 2. LC at sight
