Prepainted Color Steel Corrugated Metal Roofing Sheet Roll Forming Machine Made in Hebei

Prepainted Color Steel Corrugated Metal Roofing Sheet Roll Forming Machine Made in Hebei

metal roof roll forming machine  Cold roll forming machine

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site

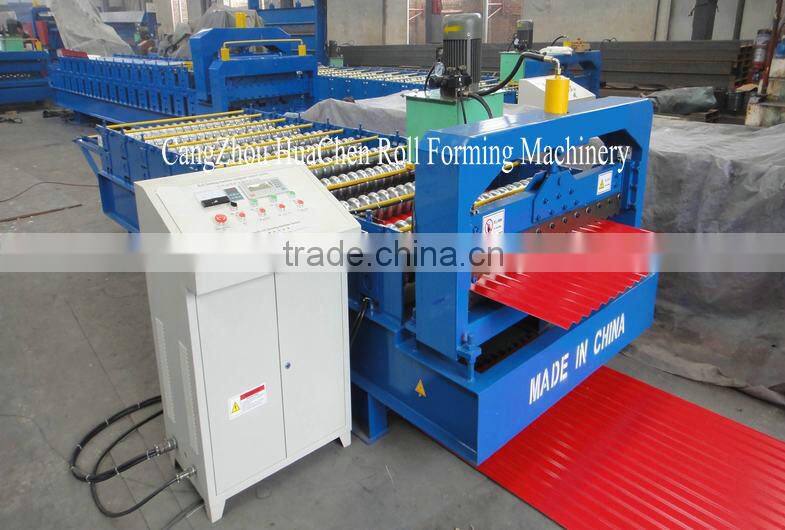

Corrugated Roofing Roll Forming Machine (Complete Machine Picture)

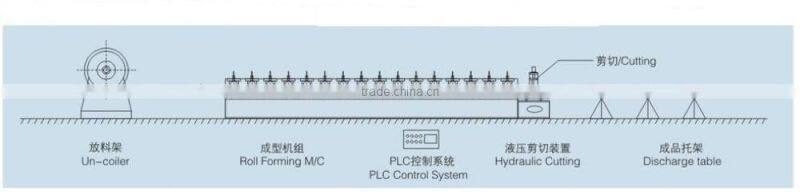

Roof Board,Wall Panel Series Producting Process Flow

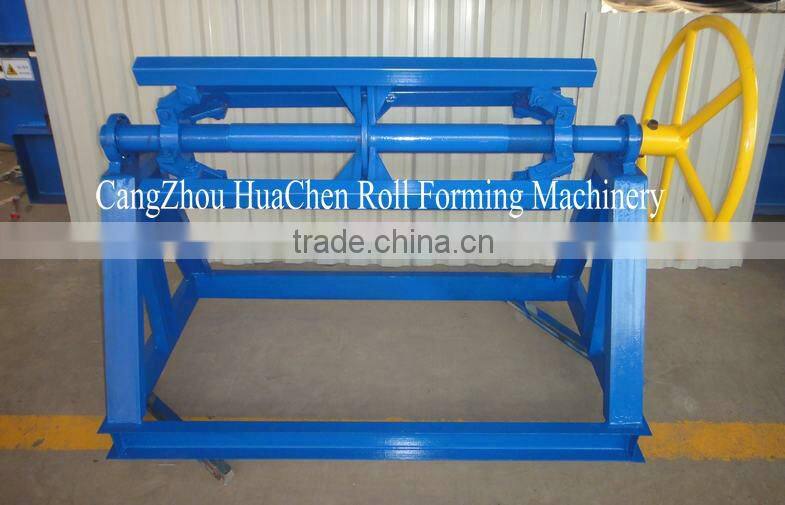

Corrugated Roofing Roll Forming Machine (Manual Uncoiler And Discharge Table)

1.The steel coil is uncoiled by hand. Loading capacity:5T  Inner diameter: 500-508mm

2. It adopts welded steel and supported roller to transmit the products

   Which is used to collect  the finished products.

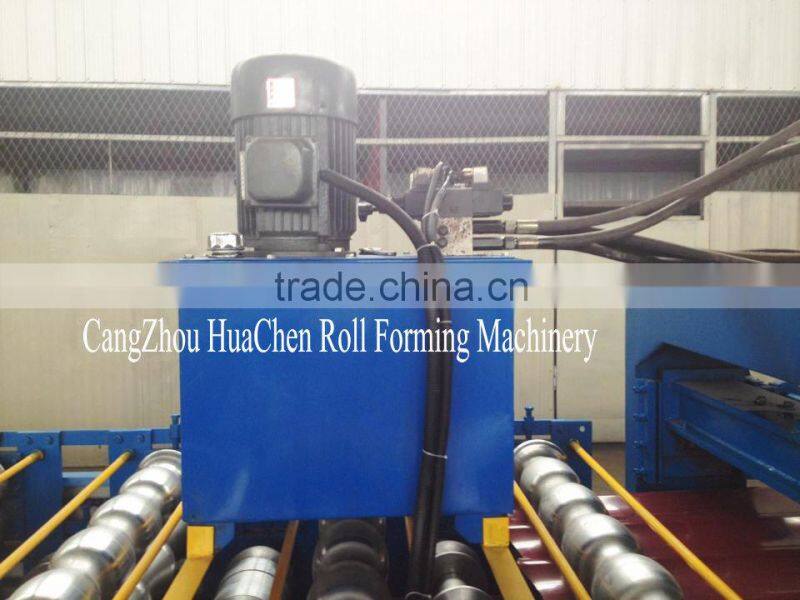

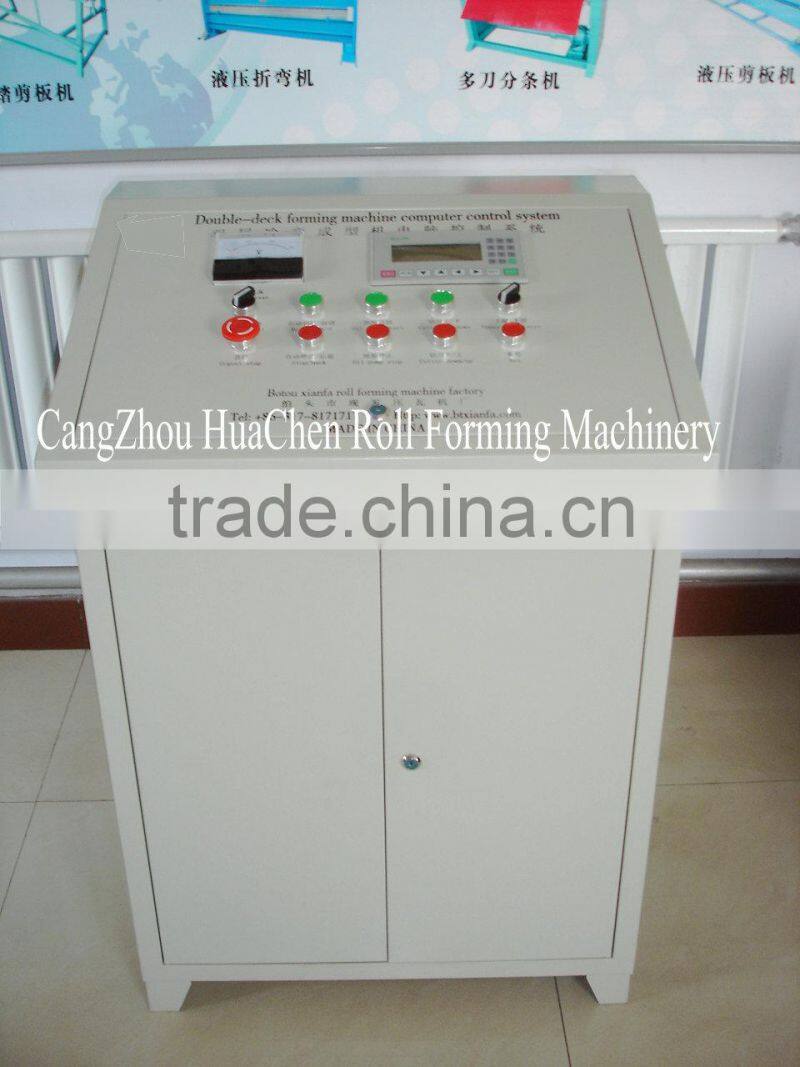

Corrugated Roofing Roll Forming Machine (Hydraulic Pump And Control Box)

1.Hydraulic Pump: 4KW. PLC: Brand Selectable

2.Computed mode has two modes: automatic and manual one

   The system is easy to operate and use

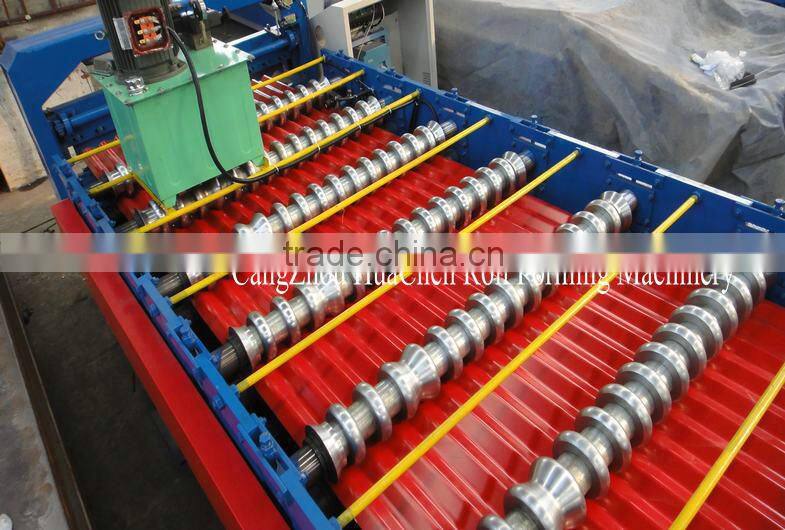

 Corrugated Roofing Roll Forming Machine(Roller )

1.Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

2.We have a professional design team
3.Can also design and manufacture according to customer's requirement.
