No

1

Suitable material

Colored steel plate, galvanized board , aluminum plate

2

Width of the raw material

1000mm

3

Thickness

0.3-0.6mm

4

Dimensions (L*W*H)

5690*1250*1510mm

5

Total power

Main motor power -4kw

Hydraulic station power-4kw

6

Rows of rollers

9 rows

7

Productivity

2-4m/min

8

Diameter of shaft

70mm

9

Voltage

380V 50Hz 3phases

No

Components

Technical Specification & Remark

1

Manual Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity:5T

Inner diameter: 450-508mm

2

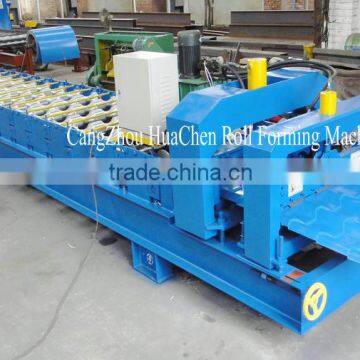

Main Roll Forming Machine

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

3

Hydraulic System

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Power:4kw

4

Computer Control Cabinet

The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use

PLC:EURA

5

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

6

Spare Parts

One box
