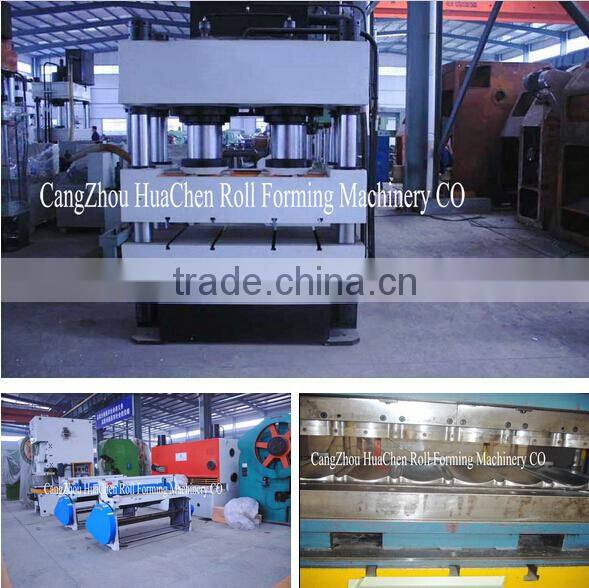

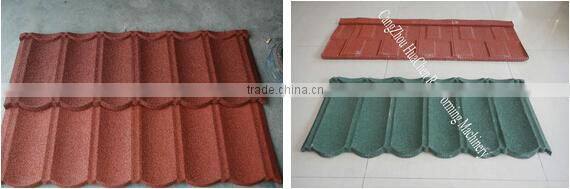

Color Stone Coated Steel Roof Tile Making Machine

NO

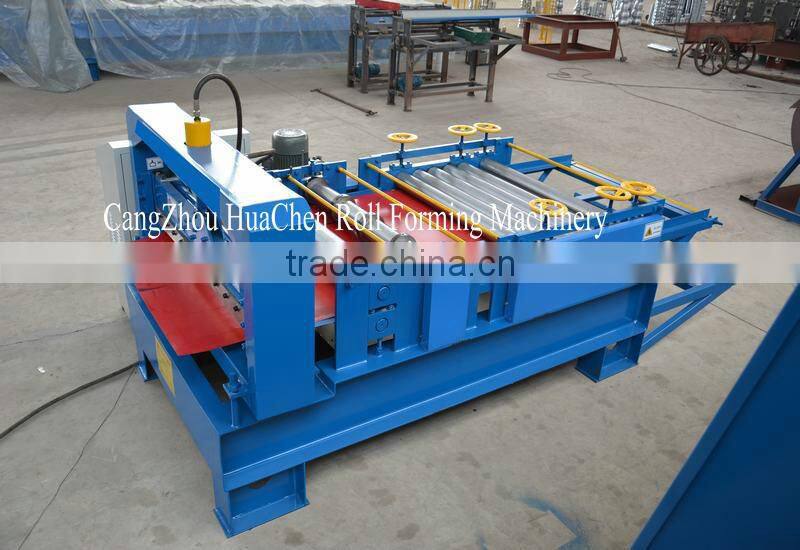

Main Parameter of  Leveling-Slitting-Cutting Machine

1

Slitting Strips

2-5 adjustable

2

Feeding material

1000-1250mm

3

Main motor

3KW

4

Cutting

PLC control the length and quantity

Working Process: Uncoil-Feeding-Leveling-Slitting-Cutting

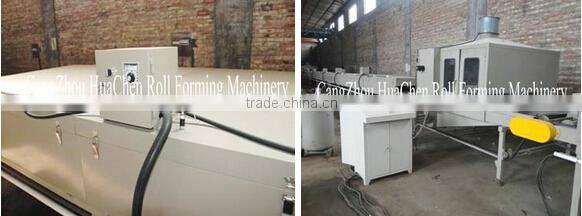

1.Closed automatic spraying glue system

2.Outside Dimension:4000*1350*850mm(L*W*H)

3.Structure:Channel steel ,welded

4.Conveying device:Reciprocating chain conveys

5.Adsorption of dust removal equipment:1 set

6.Air compressor: 1 set, 7.5kw, air output is 1m³/min

7.D46 high-pressure airless spraying system 1 set (German technology)

8.Automatic high-pressure airless spraying gun: 1 set (Japanese technology)

9.High-pressure airless manual spraying gun:1 set(Japanese technology)

10.Standard 15M German import high-pressure airless feed tube and it can support the maximum pressure is 20Mpa

100L stainless charging basket 1 piece

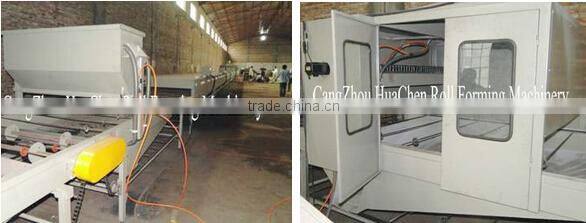

1.Outside Dimension :3000*1850*700mm(L*W*H)

2.Structure:Channel steel ,angle steel ,welded

3.Transmission:With glue spraying equipment compound chain transmit

4.Conveying device:Compound chain transmit

5.Air compressor: 1 set, 18.5kw, air output is 3m³/min

6.High-pressure sand suction system: 1 set, sand suction is 1T/hour

7.Sand hopper: 1 set, dimension:550*600*500

8.Automatic shaking sand system: one cylinder, the motor with 0.75kw, control: PLC

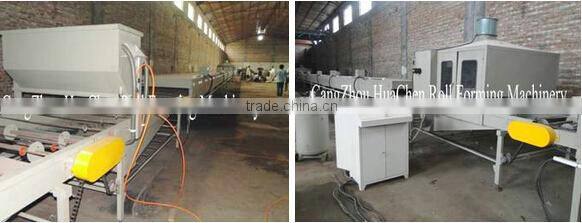

1.Outside Dimension:4000*1350*850mm(L*W*H)

2.Structure:Channel steel ,welded

3.Conveying device:Reciprocating chain conveys

4.Adsorption of dust removal equipment:1 set

5.Air compressor: 1 set, 7.5kw, air output is 1m³/min

6.D46 high-pressure airless spraying system 1 set

7.Automatic high-pressure airless spraying gun: 1 set

8.High-pressure airless manual spraying gun:1 set

9.Standard 15M German import high-pressure airless feed tube and it can support the maximum pressure is 20Mpa

10.100L stainless charging basket 1 piece

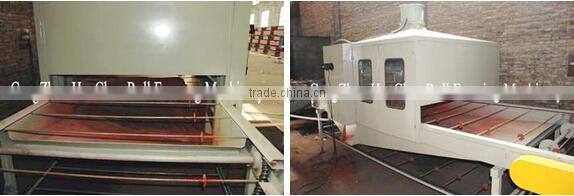

1.Outside Dimension :30000*850*700mm(L*W*H)

2.Structure:carbon steel welded

3.Frame insulation wall: 30 meters’ long, 1mm carbon steel plate bending forming filled with cotton insulation

4.Automatic temperature controller:2 sets,Range of adjustable temperature:0-160°

5.Infrared fluorescent tube:50 pieces

6.Conveying device: Reciprocating chain conveys 30m

7.Cooling device:1 set

8.Total equipment matches total control station 2 sets (Control system)

9.Productivity:3-6m/min Calculate as 1.2m per piece,eight hours,produce 1500pcs every day

10.Whole machine power:130kw
