No.

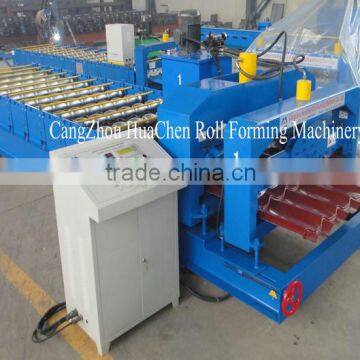

                                       HC24-183-1100 Glazed  Roll Forming Machine

1

Suitable material

Color steel sheet ,galvanized steel sheet, aluminium sheet

2

Width of material

1100/1220mm or as you required

6

Thickness of material

0.3-0.6mm or as your needs

2

Working speed

2-4m/min

3

Main motor power

4kw with cycloidal reducer

4

Hydraulic station power

4kw

5

Electrical control system

PLC control system

7

Shaft diameter

70mm

8

Roller station

182rows  Depends on profile drawing

10

Dimension

6920x1500x1510mm

11

Weight

About 2.5 T

12

Voltage

380V 3phase 50HZ or as the customer's requirements

13

Material of roller

High grade 45# forged steel plated with hard chrome plating

14

Material of cutting

Cr12 mould steel with quenched treatment

15

Working time

Can be 24 hours

16

Workers

1-2 only

No

 pictures

Technical Specification & Remark

1

Manual Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity:as you want

Inner diameter: 450-508mm

2

Main Roll Forming Machine

Material of rollers:45# steel,roller surfaces polishing, hard plating . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

3

Hydraulic System

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Power:4kw

4

Computer Control Cabinet

The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

PLC:EURA

5

Press Form

Material of blades: Cr12,quenching treatment

6

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

7

Spare Parts

One box
