Galvanized Steel Floor Deck Forming Machine
- Tianjin New Port
 - T/T

You May Like
-


Galvanized Steel Floor Deck Cold Roll Forming Machine Made in China
 -


Hot Selling Steel Floor Deck Roll Forming Machine
 -


Floor Deck Rollforming Equipment Expertise
 -


Roll Forming Deck Line Machinery
 -


HC137 Full Automatic Steel Profile Floor Deck Cold Roll Forming Machine
 -


High Quality HC161 Metal Floor Deck Roll Forming Machine

Product Details
| Condition | New | Type | Other, Tile Forming Machine, automatic | |
| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 8-10m/min | Place of Origin | Hebei, China | |
| Brand Name | HC | Model Number | HC137 | |
| Power(W) | 33+7.5kw | Voltage | 380V | |
| Dimension(L*W*H) | 11.9*1.86*1.51 | Weight | 28T | |
| Certification | CE ISO | Warranty | 12months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introducation:
Machine consist of uncoiler and its base, coil sheet guiding equipment, roll forming system, post cutting equipment, pressing equipment, post-cutting system,hydraulic station, controlling system, supporter table.
Machine Feature:
1.Precise forming
2. High-solid forming stand guarantees the goods and uniform high quality of final productd
3. The operation automatically minimizes the tolerance of cutting length
Products Feature:
1. A stylish and attractive design, giving the apperance of a traditional roof tile.
2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.
3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.
Main Parameters:
No.  | steel floor deck roll forming machine  | |
1  | Suitable material  | Color steel sheet ,galvanized steel sheet, aluminium sheet  |
2  | Width of material  | 1500mm or as you required  |
6  | Thickness of material  | 1.5mm or as your needs  |
2  | Working speed  | 8-10m/min, can be 20m/min  |
3  | Main motor power  | 33kw with cycloidal reducer  |
4  | Hydraulic station power  | 7.5kw  |
5  | Electrical control system  | PLC control system  |
7  | Shaft diameter  | 100mm  |
8  | Roller station  | 26 rows Depends on profile drawing  |
10  | Dimension  | 11900x1860x1510mm  |
11  | Weight  | About 28 T  |
12  | Voltage  | 380V 3phase 50HZ or as the customer's requirements  |
13  | Material of roller  | High grade 45# forged steel plated with hard chrome plating  |
14  | Material of cutting  | Cr12 mould steel with quenched treatment  |
15  | Working time  | Can be 24 hours  |
16  | Workers  | 1-2 only  |

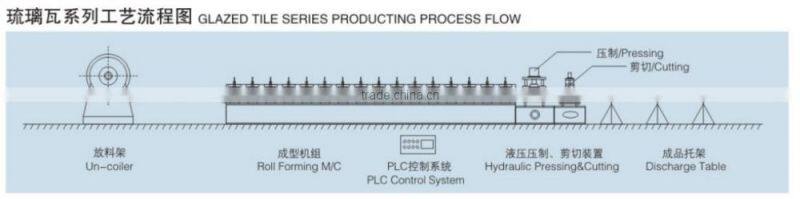

The Chart of Process Flow:
manual uncoiler - roll forming machine - computer control system - hydraulic control system - cutting system - output table
Components and Technical Specification
1. Manual Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T
Inner diameter: 500-508mm
2. Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3. Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
4.Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
PLC:EURA
5.Cutting System:
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment
6.Output Table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.

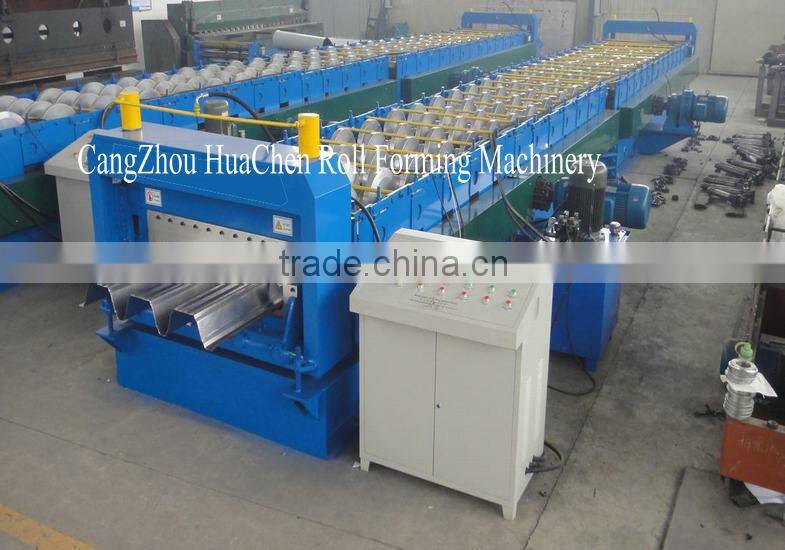

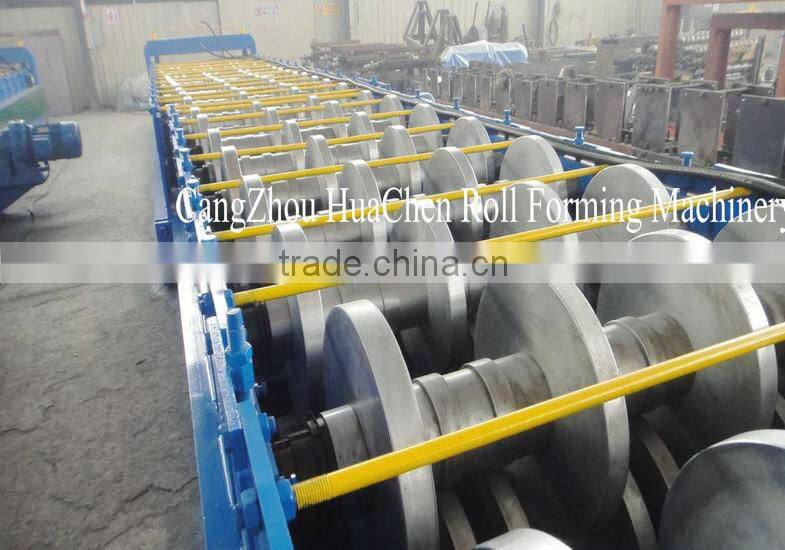

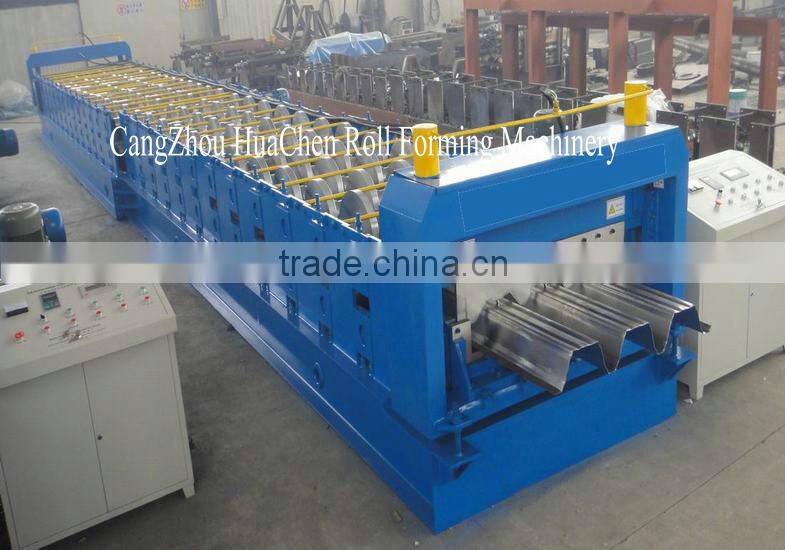

7.Main Roll Forming Machine:
Established in 1996, Cangzhou Huachen Roll Forming Machine Co.,Ltd specializes in manufacturing roll forming machines. We have approved certifications of CE & ISO9001. The concept "control every process and perfect all products" is curved in our mind. Every product will go through the load carrying test before leaving factory, thus no problem machine will be delivered to our customers.
With years of exporting experience, we know very well about the different needs of foreign customers and are able to provide our foreign customers with satisfactory design plans.
Main product catagories  | color steel roll forming machine, classical glazed tile forming machine, double layer roll forming machine,C/Z purlin machine for light steel structure building, floor deck forming machine, sandwich panel production line,fast guardrail roll forming line and various kinds full-automatic cold bending roll forming equipment.  |
Professional  | Cangzhou Huachen Roll Forming Machine Co.,Ltd , are professional manufacturer and exporter , specializing in designing, manufacturing, developing, sales and services in roll forming machine .  |
Experience  | We are proud of our own professional team with more than 17 years’ experience in customized design and manufacture, installation and test, technical solution and after services. All the machines are with international quality standards and great after-sales services.  |
Location  | We are located in Botou city,Hebei,near Beijing, with convenient transportation access. We have been establishing and keeping good business relationship with more than 70 countries of worthy clients all over the world, mainly locating in East Europe, Middle East, South and West Asia, Africa and South America.  |
Technology R&D  | We have R&D centers and innovative designing teams for different kinds of production lines.  |
Quality Control  | We have independent QC departments both in the company and factories which strictly control the quality of each process to enable our production lines to reach Chinese National Standards, even International Standards.  |
After Sale Service  | Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.  |
Inspected by the Sellers  | After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.  |
Inspected by the Buyers  | After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.  |
