China Glazed Tile Roofing Roll Forming Machine
- Tianjin New Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Cold Rolling Metal Roofing Sheet Glazed Tile Roofing Forming Machine
-
Pioneers in Metal Roof & Custom Roll Forming Machine Technology
-
Prepainted Color Steel Corrugated Metal Roofing Sheet Roll Forming Machine Made in Hebei
-
Corrugated Rolling Sheet Forming Machinery With Colored Steel
-
Model HC Duplex Roll Forming Machine
-
Bending Machine for Corrugated Sheet Roll Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Glazed Steel | Use | Roof | |
| Production Capacity | 2m/min | Place of Origin | Hebei, China | |
| Brand Name | HC | Model Number | HC28-207-1035 glazed tile roofing roll forming machine | |
| Power(W) | 4+4KW | Voltage | 380v (adjustable) | |
| Dimension(L*W*H) | 7000*1500*1510 | Weight | about 4t | |
| Certification | CE&ISO | Warranty | 1 year | |
| After-sales Service Provided | Overseas service center available |
Product Description
china glazed tile roofing roll forming machine
![]() | Huachen is FACTORY which manufacture machine and also do export. |
We have exported over 70 countries, and familiar with your require. | |
Suitable to GI, PPGI, aluminum and Zinc coil. | |
Free 1 year gurantee, and life long service. |
Intruduction:
Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:
This type of roofing sheet has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
1). The Main Parameter For glazed tile roofing roll forming machine
No. | main parameter of glazed tile roofing machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 1250mm |
3 | Roller | 12 rows |
4 | Dimensions | 7600*1550*1310mm |
5 | Power | 4+4kw |
6 | Thickness of the plate | 0.3-0.6mm |
7 | Productivity | 2m/min |
8 | Material of the cutting blade | Cr12 |
9 | Diameter of the roller | Φ70mm |
10 | Weight | About 3.5T |
11 | Voltage | 380V 50Hz 3phases |
14 | Control system | PLC control |

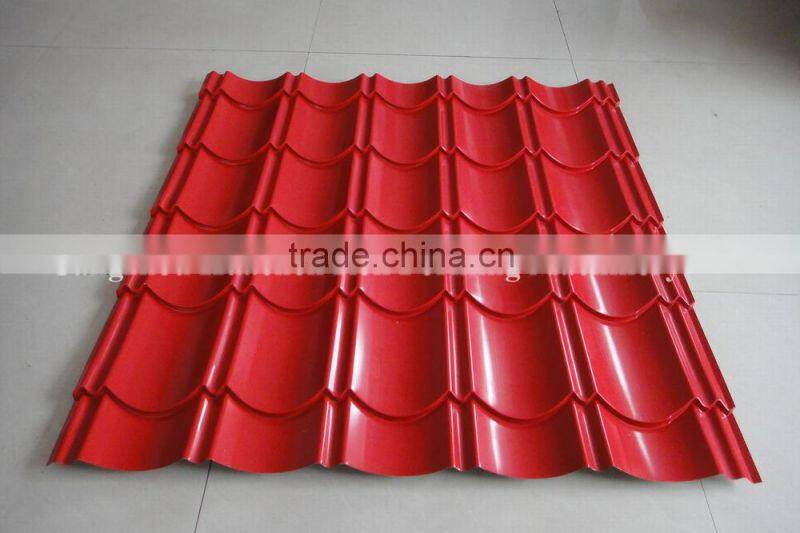

2). Check If glazed tile roofing machine Profile Suitable to You.

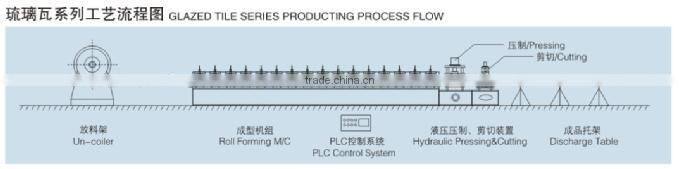

3). This is The Whole Line of glazed tile roofing machine
Manual Uncoiler—Glazed tile roofing Machine—Computer Control System—Hydraulic Control System— Pressing—Form Cutter
4). Components and Technical Specification
1. Manual Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T
Inner diameter: 500-508mm
2. Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3. Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
4.Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
PLC:EURA
5.Cutting System:
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment

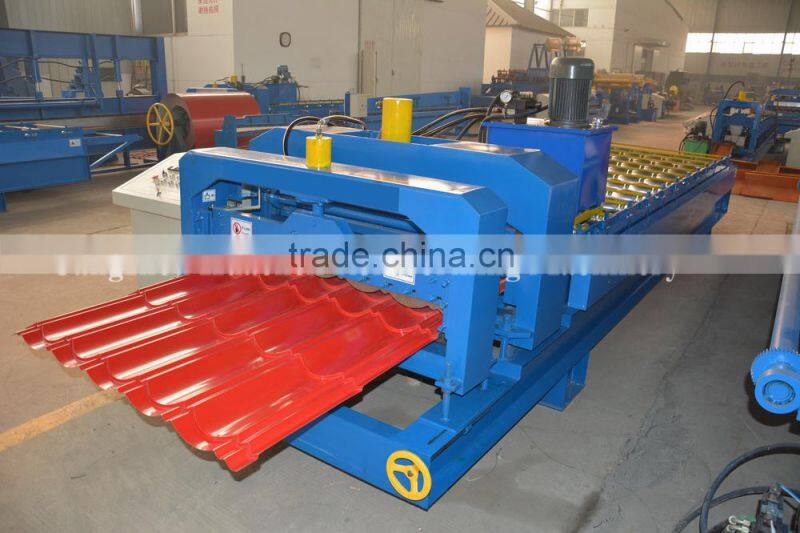

6.Main Roll Forming Machine:
7.Output Table
Detail Pics:
I Think You May Need These Useful Accessory.
Why Not Choose Some Hydraulic Device To Save Labours?
Roofing Sheet Making Machine Corrugated Sheet Making Machine Double Layer Roll Forming Machine
Glazed Tile Roof Machine Glazed Tile Forming Machine Glazed Tile Forming Machinery

Double Layer Roof Tile Machine Double Layer Step Tile Roof Machine Double Layer Roof Tile Machine
CE Double Layer Roof Machine IBR & Wave Forming Machine Double Roof Tile Forming Machine
Hydraulic Uncoiler Hydraulic Stacker Roof Sheet Ridge Cap Machine
U Type Gutter Machine Round Downpouts Machine K Type Gutter Machine
C Purlin Machine Metal Stud And Track Machine Steel Door Frame Forming Machine
We have CE certification and ISO certification.
