Mini 12v Electric Linear Actuator
- Shanghai or ningbo
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JDR | |
| Model Number | FY016 |
Product Description
Dual Motor for Electric Bed
The FY Seires linear actuators are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction bed, television movements counters, furniture and other movements.
Specifications of FY016 Dual Motor:
Name: Dual Motor Actuator
Model: FY016
Input Voltage: 110V or 230V AC
Max Load Capacity: 2 * 4500N
Speed: up to 5mm/s
Standard Stroke: 63mm, 74mm, 69mm, 87mm
Limit Switches: Inner
Type of duty: S2-10min
Operation Temperature: -26 Centigrade ~ 65 Centigrade
Protection Class: IP20
Installation Dimension: 581mm (more or less 2mm)
Certification: CE/EMC+LVD
Usage: Electric Bed, Massage Bed, etc..
It can connect 1 to 2 linear actuator, and 1 handset or massage motor

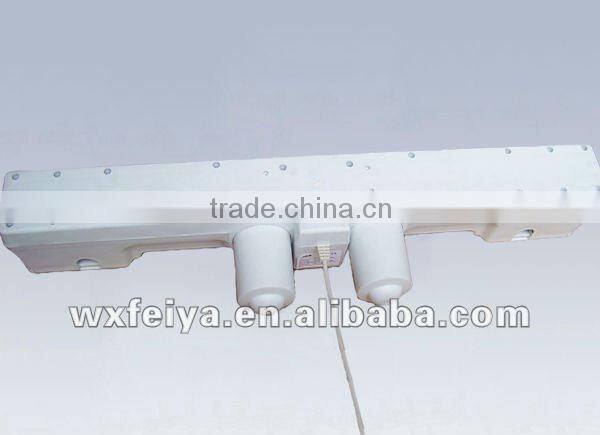

Dual Motor for Electric Bed, White Color

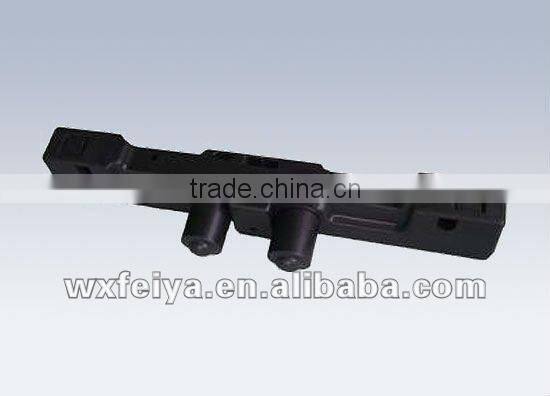

Dual Motor for Electric Bed, Black Color
Dual Motor for Electric Bed, Gray Color

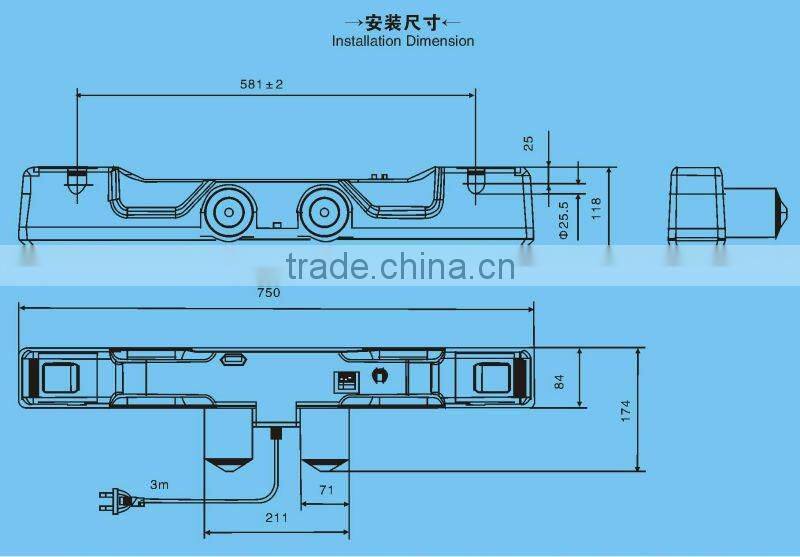

Installation Dimension of FY016 Dual Motor

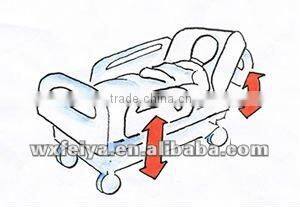

Application of FY016 Dual Motor
