Electric Linear Actuator Min Igh Torque 12v 24v dc Motor for Electric Recliner Chair

  hot selling 12v/24v dc linear actuator   :

It can be used in sofa and chairs, Raising or falling of the back of electric sofa is based on the raise and falling of its white slider.

Specifications :

       1) Thrust up to 6000N

       2) 12V / 24V DC input voltage

       3) Min Installation Dimension : S + 175mm

       4) Standard protection class, IP43

       5) High-strength plastic housing protecting motor and gears

       6) Black plastic parts and anodized aluminium profile

       7) Noise level, 48 dB, actuator not loaded.

       8) Elegant and compact design with small installation dimensions

       9) Colour, black plastic parts and natural anodiz ed Aluminium profile.

     10) Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use

Description :

This type linear actuators allow you to screw the sliding block to your device giving flexibility and can also come complete ready to plug in and play out of the control box , include hand controller and power supply .

specifications for hot selling 12v/24v dc linear actuator

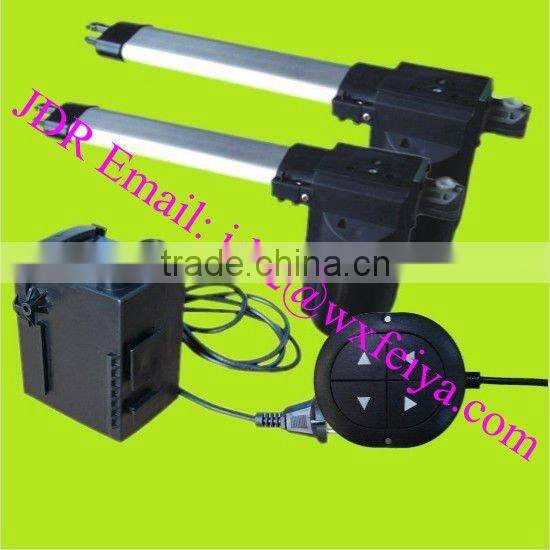

 picture for product  hot selling 12v/24v dc linear actuator

installation dimension hot selling 12v/24v dc linear actuator
