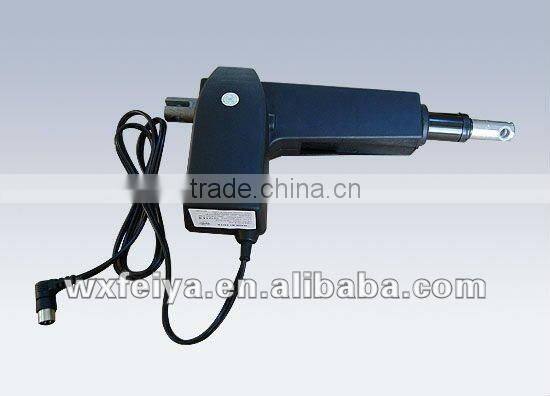

FY013 12v/24v DC Lift Toilet Linear Actuator
- Shanghai or ningbo
- T/T D/P D/A Credit Card
You May Like
-
FY013 12v 24v DC Toilet Lifter Linear Actuator
-
FY013 12v/24v DC Self-care Ability of Disabled Linear Actuator, Nursing Bed Linear Actuator, Medical Bed Actuator
-
FY011 Foot Massage Chair Use Linear Actuator
-
FY013 12v 24v DC Best Massage Chair Linear Actuator, Nursing Bed Linear Actuator, Medical Bed Actuator
-
CE Linear Actuator System Actuator Linear
-
Electric Linear Actuator for Home Bed , Electric Sofa , Chair and Recliner Mechanisms
Product Details
| Material | Metal | Metal Type | Stainless Steel | |
| Use | Chair | Place of Origin | Jiangsu, China | |
| Brand Name | JDR | Model Number | FY013 |
Product Description
Specifications
Input Voltage:12v/24v DC
Load Capacity: 8000N/6000N
Max Speed: 3mm/s(8000N) 4mm/s(6000N)
Stroke: 0~1000mm(option)
Type of duty: S2-10min
Limit switches: inner
Operation Temperature: -26--65 centigrade
Protection Class: IP54
Certification: CE/EMC+LVD,RoHS
type: furniture part
material: metal and plactic
Use:recliner chair,sofa,dental chair,massage chair,medical care bed.
place of origin: Jiangsu, China(mainland)
function: Driving
Shape: Linear
Power: DC
Product picture

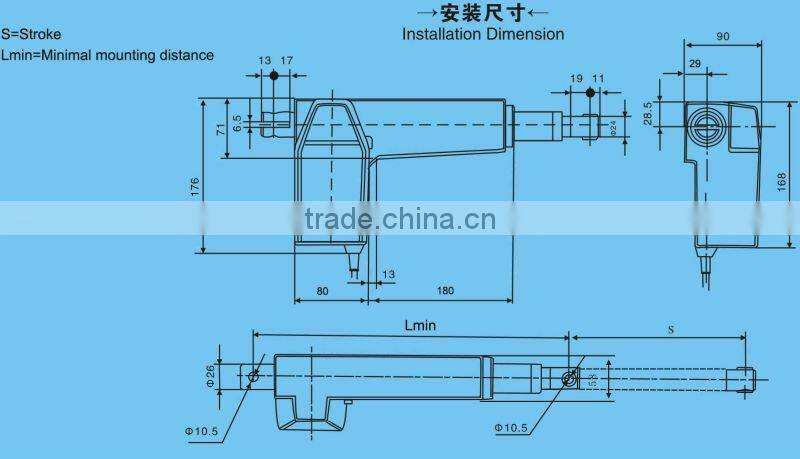

installation for the linear acutator FY012 and specifications

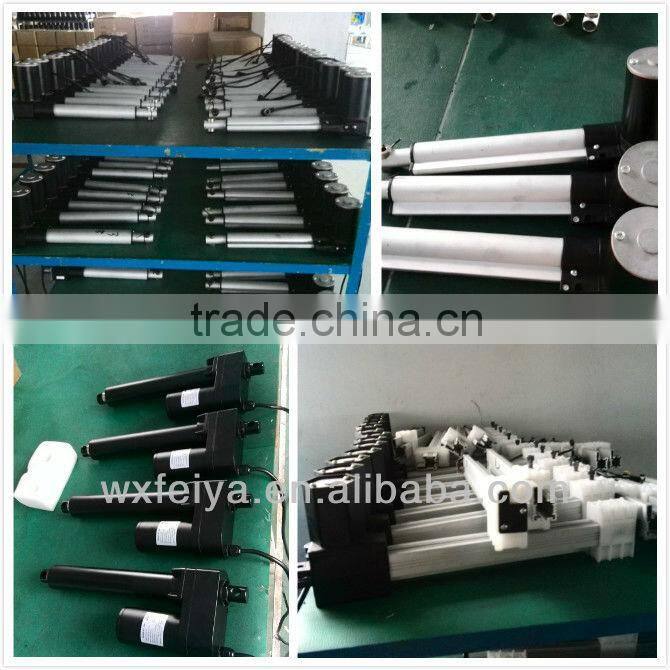

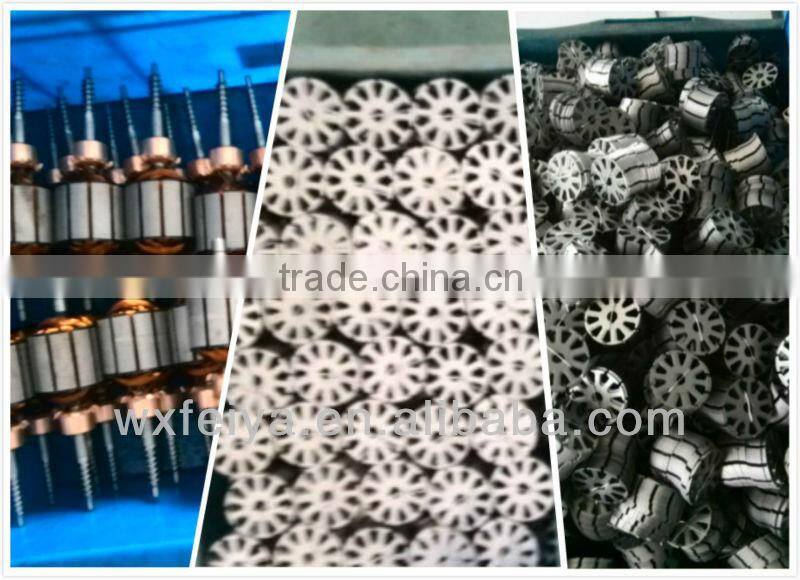

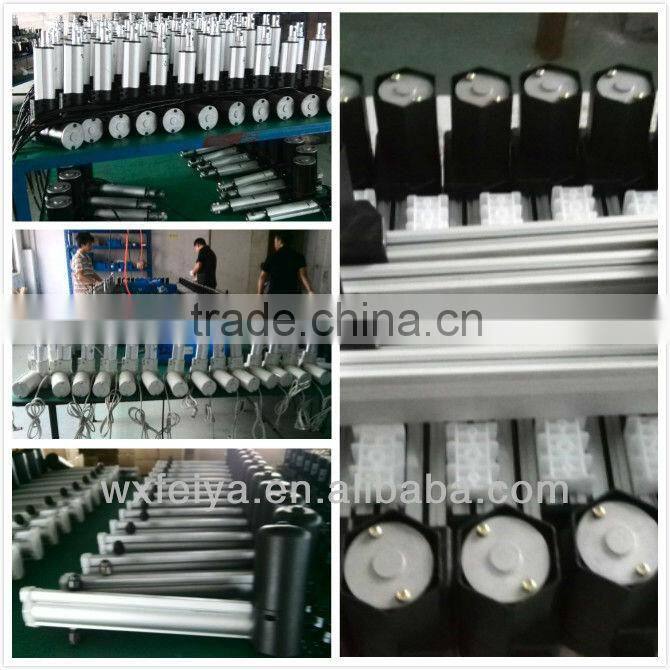

pictures for linear acutuator parts and factory product line
please contact with us if more problems
Name:Claudia Wang
Telephone:0086-18651580126
Email: Jdr2 at wxfeiya dot com
Skype: Claudia Wang11
