Product Details
Place of Origin | Jiangsu, China | Brand Name | SLMK | |
Model Number | M5 | Type | Insulating Ceramics | |
Material | Other, steatite |
Product Description

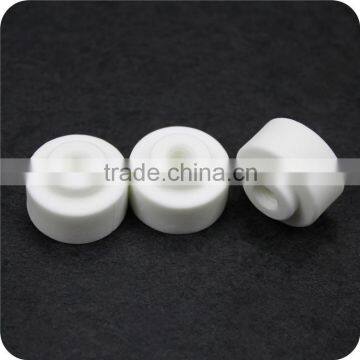

high heat resistance supper insulating steatite ceramic M5 infrared ceramic insulators head
1. Material: Steatite ceramic
Performance | |||||
Item | Index | Unit | Steatite ceramic | 95 Al2O3 | 96 Al2O3 |
Physical Characteristics | Bulk density | g/cm3 | 2.7 | 3.6 | 3.6 |
Water absorption | % | 0 | 0 | 0 | |
Mechanical Characteristics | Flexural strength | Mpa | 145 | 320 | 340 |
Hardness Vickers | Gpa | 5.7 | 12.2 | 13.5 | |
Elastic modulus | Gpa | 120 | 280 | 320 | |
Poisson’s ratio | - | 0.21 | 0.22 | 0.23 | |
Thermal Characteristics | Linear expansion coefficient | 20-5000C 10-6/0C | 7.9 | 7.1 | 7.2 |
Thermal conductivity | w/(m.k) | 2.5 | 16 | 24 | |
Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | |
Electrical Characteristics | Dielectric constant(1MHZ) | - | 6.2 | 9 | 9.4 |
Dielectric loss angle | *10-4 | 18 | 15 | 5 | |
Dielectric strength | *106V/m | 18 | 12 | 15 |
2. Advantages:
1). Excellent insulation, security.
2). Excellent high pressure resistance
3). Corrosion resistance
3. Main Applications:
1). Shaft, Plunger
2). High-pressure cleaning machines
3). Sealing structure
4). Auto mobile industry
5). Oil drilling equipment
6). Insulation parts in electrical equipment
7). Ceramic knife
8). Ceramic hair clipper spare parts
4. About us:
Jiangsu Sailamike Precision Ceramic is a worldwide leader in the development and production of advanced insulating ceramics. We provide a wide selection of advanced ceramics including Alumina ceramic, Zirconia ceramic, cordierite, steatite ceramic and mullite, which improves and extends the performance of your product, process, or system. Whether you need high temperature stability, high hardness and wear resistance surfaces, improved stiffness to weight radiations, anti-corrosive barriers or low thermal expansion rates - we can deliver. We can offer significant performance and cost advantages to meet your needs.
Welcome you contact us for more information.
5. FAQ:
6. Contact us:
Contact Us
- Jiangsu Sailamike Precision Ceramic Co., Ltd.
- Contact nameCherry Shi Chat Now
- Phone86-510-87448121
- AddressNo. 6, East Of Jiannan Road, Qianluo Ind. Zone, Dingshu Town
