Product Details
Place of Origin | Jiangsu, China | Type | Ceramic Parts | |
Application | Industrial Ceramic | Model Number | According to your drawing or samples | |
Brand Name | SLMK |
Product Description

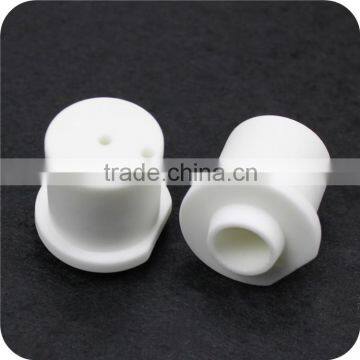

High temperature resistance insulating steatite ceramic H4 HID xenon lamp ceramic part
1. Raw material: Steatite ceramic
95% alumina ceramic is optional.
Performance | |||||
Item | Index | Unit | Steatite ceramic | 95 Al2O3 | 96 Al2O3 |
Physical Characteristics | Bulk density | g/cm3 | 2.7 | 3.6 | 3.6 |
Water absorption | % | 0 | 0 | 0 | |
Mechanical Characteristics | Flexural strength | Mpa | 145 | 320 | 340 |
Hardness Vickers | Gpa | 5.7 | 12.2 | 13.5 | |
Elastic modulus | Gpa | 120 | 280 | 320 | |
Poisson’s ratio | - | 0.21 | 0.22 | 0.23 | |
Thermal Characteristics | Linear expansion coefficient | 20-5000C 10-6/0C | 7.9 | 7.1 | 7.2 |
Thermal conductivity | w/(m.k) | 2.5 | 16 | 24 | |
Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | |
Electrical Characteristics | Dielectric constant(1MHZ) | - | 6.2 | 9 | 9.4 |
Dielectric loss angle | *10-4 | 18 | 15 | 5 | |
Dielectric strength | *106V/m | 18 | 12 | 15 |
2. Advantages:
1). Excellent insulation, security, long working life.
2). Precise grinding and polishing, the effect is better than others.
3). More environmental and energy-efficient.
4). High temperature resistance
5). Great aging resistant performance
3. Application
1) automobile lamp
2) Projector lamp
4. About us:
Jiangsu Sailamike Precision Ceramic is a worldwide leader in the development and production of advanced insulating ceramics. We provide a wide selection of advanced ceramics including Alumina ceramic, Zirconia ceramic, cordierite, steatite ceramic and mullite, which improves and extends the performance of your product, process, or system. Whether you need high temperature stability, high hardness and wear resistance surfaces, improved stiffness to weight radiations, anti-corrosive barriers or low thermal expansion rates - we can deliver. We can offer significant performance and cost advantages to meet your needs.
Welcome you contact us for more information.
