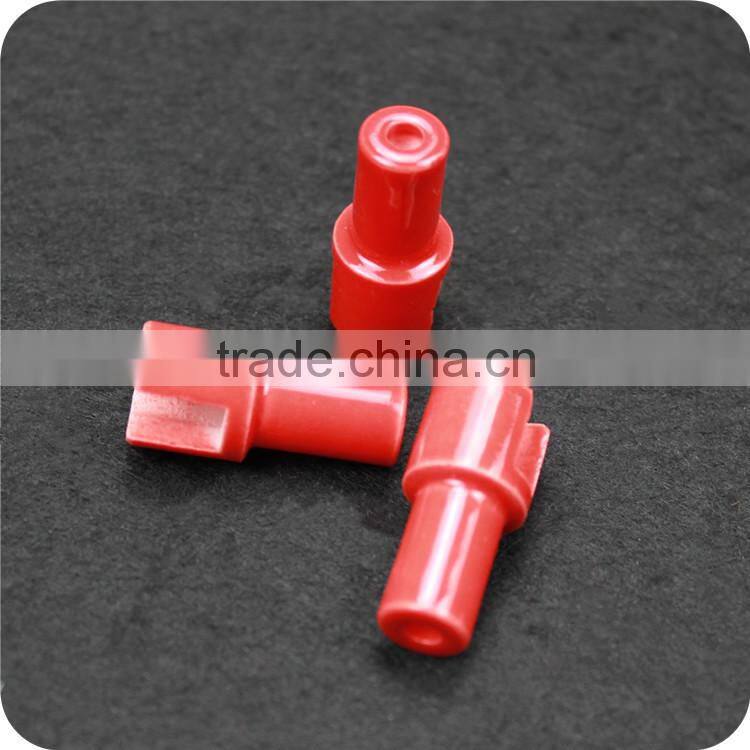

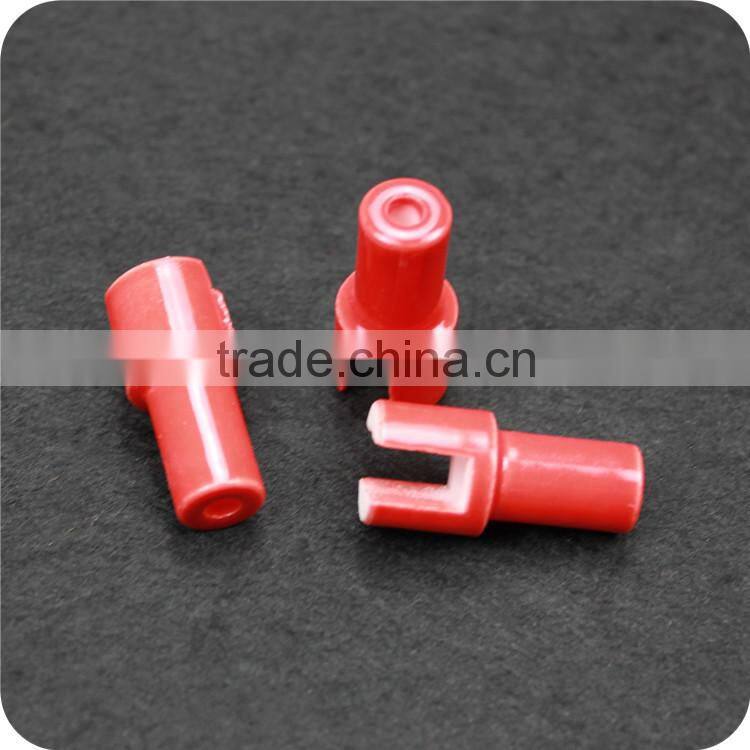

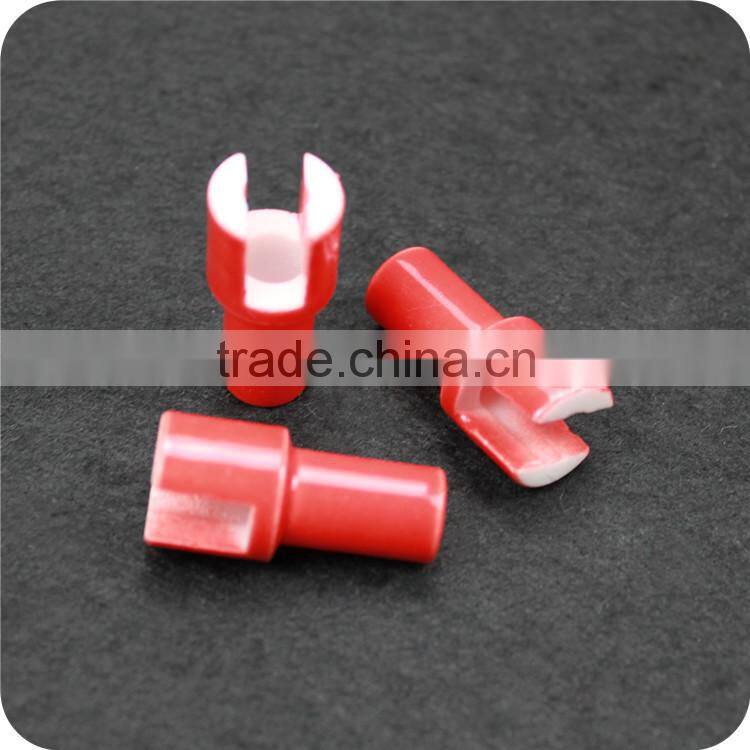

high quality best service UV curing lamp holder UV lamp cap steatite UV ceramic lamp base
- 60000 Piece / Pieces per Month
- Shanghai
- Credit Card
You May Like
-
high heat transfer ceramic cap projector lamp steatite ceramic socket
-
high temperature resistance supper insulating wear resistance steatite ceramic cover resistance ceramic
-
high temperature resistance supper insulating wear resistance ceramic quartz tube steatite structural ceramic
-
High temperature resistance insulating steatite ceramic mosquito heater element
-
High temperature resistance steatite insulator insulating high frequency ceramic
-
High temperature resistance insulating HID xenon lamp ceramic accessories
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SLMK | |
| Model Number | According to your drawing or samples | Material | Ceramic | |
| Certification | Other | Style | Other |
Product Description
high quality best service UV curing lamp holder UV lamp cap steatite UV ceramic lamp base
1. Material: Steatite ceramic
| Performance | |||||
| Item | Index | Unit | Steatite ceramic | 95 Al2O3 | 96 Al2O3 |
| Physical Characteristics | Bulk density | g/cm3 | 2.7 | 3.6 | 3.6 |
| Water absorption | % | 0 | 0 | 0 | |
Mechanical Characteristics | Flexural strength | Mpa | 145 | 320 | 340 |
| Hardness Vickers | Gpa | 5.7 | 12.2 | 13.5 | |
| Elastic modulus | Gpa | 120 | 280 | 320 | |
| Poisson’s ratio | - | 0.21 | 0.22 | 0.23 | |
| Thermal Characteristics | Linear expansion coefficient | 20-5000C 10-6/0C | 7.9 | 7.1 | 7.2 |
| Thermal conductivity | w/(m.k) | 2.5 | 16 | 24 | |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | |
| Electrical Characteristics | Dielectric constant(1MHZ) | - | 6.2 | 9 | 9.4 |
| Dielectric loss angle | *10-4 | 18 | 15 | 5 | |
| Dielectric strength | *106V/m | 18 | 12 | 15 | |
2. Advantages:
1). High dielectric strength
2). Excellent electrical resistance
3). Abrasion resistance
4). High electrical insulation
3. Application:
They are widely used for the halogen lamps, iodine-tungsten lamps, high and low pressure uv lamps, mercury lamps, uv lamp holders and all kinds of heating tubes.

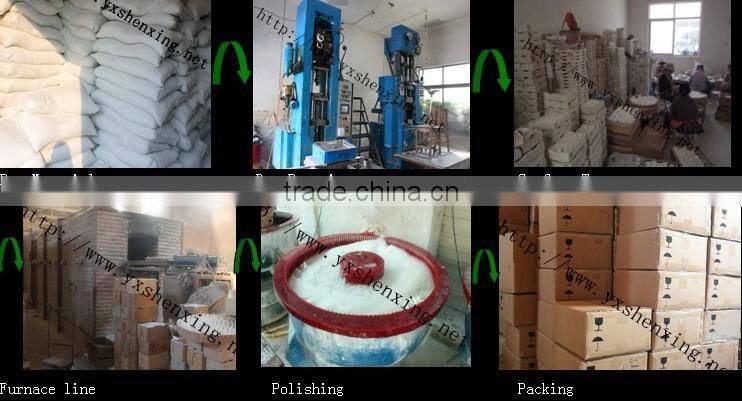

4. About us:
Jiangsu Sailamike Precision Ceramic is a worldwide leader in the development and production of advanced insulating ceramics. We provide a wide selection of advanced ceramics including Alumina ceramic, Zirconia ceramic, cordierite, steatite ceramic and mullite, which improves and extends the performance of your product, process, or system. Whether you need high temperature stability, high hardness and wear resistance surfaces, improved stiffness to weight radiations, anti-corrosive barriers or low thermal expansion rates - we can deliver. We can offer significant performance and cost advantages to meet your needs.
Welcome you contact us for more information.
5. FAQ:
6. Contact us:
Contact Us
- Jiangsu Sailamike Precision Ceramic Co., Ltd.
- Contact nameCherry Shi Chat Now
- Phone86-510-87448121
- AddressNo. 6, East Of Jiannan Road, Qianluo Ind. Zone, Dingshu Town
