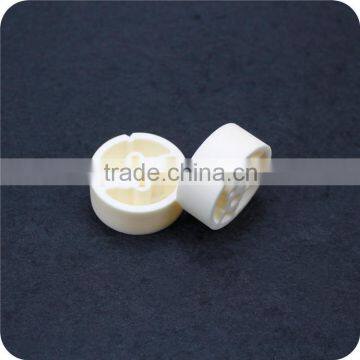

high precision wear resistant 99 al2o3 alumina ceramic valve body
- 200000 Piece / Pieces per Month
- Shanghai
- Credit Card
You May Like
-
Excellent insulating 99 al2o3 alumina ceramic eyelet yarn guide ceramic guides
-
high precision wear resistant 99 al2o3 alumina ceramic technical ceramic
-
high precision wear resistant 99% al2o3 alumina ceramic technical ceramic machinable ceramic
-
high heat resistance low voltage glazd ceramic wire connectors ceramic terminal blocks
-
High Resistance C799 99% al2o3 mirror polished Alumina Ceramic Machine Parts
-
High precision insulating 99% alumina ceramic car part 99 alumina plate
Product Details
| Place of Origin | Jiangsu, China | Model Number | According to your drawing or samples | |
| Material | ceramic |
Product Description
High precision wear resistant 99 al2o3 alumina ceramic valve body
1. Material: 99% alumina ceramic
Items | Unit | 95%Al2O3 | 99.5%Al2O3 |
Density | g/cm3 | 3.7 | 3.9 |
Flexural Strength | MPa | 313 | 340 |
Compressive Strength | MPa | 3400 | 3600 |
Modulus of Elasticity | GPa | 350 | 380 |
Impact Resistance | MPa·m1/2 | 4 | 5.1 |
Weibull Modulus | m | 10 | 10 |
Vickers Hardness | HV0.5 | 1800 | 1900 |
Thermal Conductivity | W/mk | 24 | 27 |
Highest Application Temperature | °C | 1600 | 1750 |
Volume Resistivity at 20°C | Ω.cm20 | >1014 | >1014 |
Dielertric strength | KV/mm | 20 | 25 |
Thermal expansion | X10-6/K | 5.0-8.3 | 5.4-8.3 |
2. Advantages:
1). Excellent insulation, security, long working life.
2). High temperature resistance
3). Resistance to electric breakdown
4). Stand wear and tear
5). High strength
6). Corrosion resistance
7). Good compactness
8). HIgh hardness
3. About us:
Jiangsu Sailamike Precision Ceramic is a worldwide leader in the development and production of advanced insulating ceramics. We provide a wide selection of advanced ceramics including Alumina ceramic, Zirconia ceramic, cordierite, steatite ceramic and mullite, which improves and extends the performance of your product, process, or system. Whether you need high temperature stability, high hardness and wear resistance surfaces, improved stiffness to weight radiations, anti-corrosive barriers or low thermal expansion rates - we can deliver. We can offer significant performance and cost advantages to meet your needs.
Welcome you contact us for more information.
