Product Details
| Place of Origin | Jiangsu, China | Type | Ceramic Parts | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Customer's Requirements | Brand Name | SLMK |
Product Description

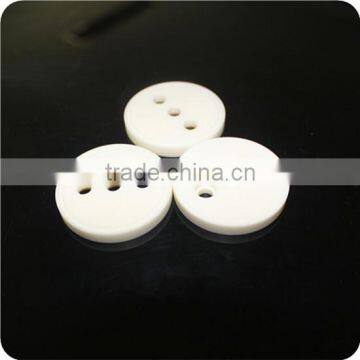

High precision insulating 99% alumina ceramic plate ceramic sheet ceramic disc
1. Material: 99% alumina ceramic
Items | Unit | 95%Al2O3 | 99.5%Al2O3 |
Density | g/cm3 | 3.7 | 3.9 |
Flexural Strength | MPa | 313 | 340 |
Compressive Strength | MPa | 3400 | 3600 |
Modulus of Elasticity | GPa | 350 | 380 |
Impact Resistance | MPa·m1/2 | 4 | 5.1 |
Weibull Modulus | m | 10 | 10 |
Vickers Hardness | HV0.5 | 1800 | 1900 |
Thermal Conductivity | W/mk | 24 | 27 |
Highest Application Temperature | °C | 1600 | 1750 |
Volume Resistivity at 20°C | Ω.cm20 | >1014 | >1014 |
Dielertric strength | KV/mm | 20 | 25 |
Thermal expansion | X10-6/K | 5.0-8.3 | 5.4-8.3 |
2. Advantages:
1). Excellent insulation, security, long working life.
2). High temperature resistance
3). Resistance to electric breakdown
4). Stand wear and tear
5). High strength
6). Corrosion resistance
7). Good compactness
8). HIgh hardness
3. About us:
Jiangsu Sailamike Precision Ceramic is a worldwide leader in the development and production of advanced insulating ceramics. We provide a wide selection of advanced ceramics including Alumina ceramic, Zirconia ceramic, cordierite, steatite ceramic and mullite, which improves and extends the performance of your product, process, or system. Whether you need high temperature stability, high hardness and wear resistance surfaces, improved stiffness to weight radiations, anti-corrosive barriers or low thermal expansion rates - we can deliver. We can offer significant performance and cost advantages to meet your needs.
Welcome you contact us for more information.
4. FAQ:
5. Contact us:
