Home > Products > 99 alumina ceramic > High precision insulating alumina insulator precision grinding 99 alumina ceramic tube

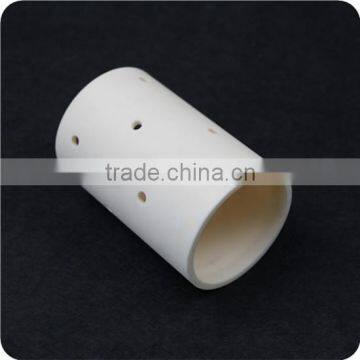

High precision insulating alumina insulator precision grinding 99 alumina ceramic tube
- Shanghai
- Credit Card
You May Like
-
High precision insulating 99% alumina insulator precision multi hole ceramic plate
-
high precision wear resistant multi hole technical ceramic 99% alumina ceramic
-
High precision insulating 99% alumina insulator precision machined ceramic industry
-
High precision insulating ceramic spool 99% alumina insulator bearing
-
High precision insulating ceramic pipe 99% alumina ceramic round tube
-
High precision insulating machined ceramic 99% alumina ceramic
Product Details
| Place of Origin | Jiangsu, China | Type | Ceramic Parts | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Customer's Requirements | Brand Name | SLMK |
Product Description
High precision insulating alumina insulator precision grinding 99 alumina ceramic tube
1. Material: 99% alumina ceramic
Items | Unit | 95%Al2O3 | 99.5%Al2O3 |
Density | g/cm3 | 3.7 | 3.9 |
Flexural Strength | MPa | 313 | 340 |
Compressive Strength | MPa | 3400 | 3600 |
Modulus of Elasticity | GPa | 350 | 380 |
Impact Resistance | MPa·m1/2 | 4 | 5.1 |
Weibull Modulus | m | 10 | 10 |
Vickers Hardness | HV0.5 | 1800 | 1900 |
Thermal Conductivity | W/mk | 24 | 27 |
Highest Application Temperature | °C | 1600 | 1750 |
Volume Resistivity at 20°C | Ω.cm20 | >1014 | >1014 |
Dielertric strength | KV/mm | 20 | 25 |
Thermal expansion | X10-6/K | 5.0-8.3 | 5.4-8.3 |
2. Advantages:
1). Excellent insulation, security, long working life.
2). High temperature resistance
3). Resistance to electric breakdown
4). Stand wear and tear
5). High strength
6). Corrosion resistance
7). Good compactness
8). HIgh hardness
3. About us:
Jiangsu Sailamike Precision Ceramic is a worldwide leader in the development and production of advanced insulating ceramics. We provide a wide selection of advanced ceramics including Alumina ceramic, Zirconia ceramic, cordierite, steatite ceramic and mullite, which improves and extends the performance of your product, process, or system. Whether you need high temperature stability, high hardness and wear resistance surfaces, improved stiffness to weight radiations, anti-corrosive barriers or low thermal expansion rates - we can deliver. We can offer significant performance and cost advantages to meet your needs.
Welcome you contact us for more information.
4. FAQ:
5. Contact us:
Contact Us
- Jiangsu Sailamike Precision Ceramic Co., Ltd.
- Contact nameCherry Shi Chat Now
- Phone86-510-87448121
- AddressNo. 6, East Of Jiannan Road, Qianluo Ind. Zone, Dingshu Town
