4GE + 2 voice port, support H.248 and SIP protocol ZTE F620 GPON ONU

Specification

1.with 4 ethernet and 2 voice ports;

2.GPON ONU apply to FTTH mode.

3. the setup interface is English version.

4.H.248 protocol

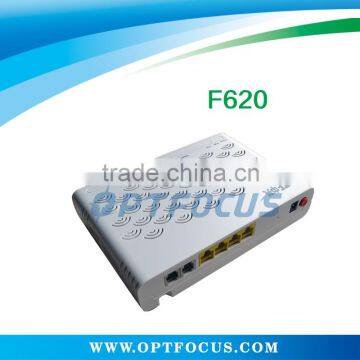

ZTE F620 GPON ONU 4GE+2POTS Bridge/Route+Voice

The F620  is an indoor optical network terminal (ONT) in ZTE FTTH  solution.  By  using  the  GPON  technology,  ultra-broadband access is provided for home and SOHO users. The F620  provides  two  POTS  ports,  four  GE/FE  auto-adapting Ethernet ports and one CATV port. The F620  features high-performance  forwarding  capabilities  to  ensure  excellent experience with VoIP, Internet and HD video services.

Highlights:

• Full GE Ports for Speeds 10x Faster than Fast Ethernet
• Comprehensive VoIP Services
• Quality of Service (QoS)
• Robust TR-069 Remote Management
• Backup Battery Solution
• GPON and XG-PON1 Coexistence

Technical Specifications:

• GPON Compliance
• ITU-T G.984.x GPON standards
• ITU-T  G.984.2  amd1,  Class  B+  and Class C+ with APD  receiver and DFB transmitter
• 1.244Gbps  burst  mode  upstream, 2.488Gbps downstream
• Upstream  1310nm,  Downstream 1490nm
• Laser safety feature
• VoIP
• SIP(RFC 3261)/H.248/MGCP
• DTMF Dialing /DTMF Digits /DTMF encoding by RFC 2833
• 5-REN, balanced ring, 55V RMS
• Codec: G.711 (μ-law and A-law), G.722, G.729
• 32 ms echo cancellation VAD/CNG  IN-BAND method  T.38/T.30 FAX
• Caller ID/ Call Waiting/ Call
• Forwarding/ Call Transfer/ Call Toggle/ Three Way Calling/ Distinctive Ringing
• DNS Client/Server
• Router: PPPoE  DHCP  SNTP  IGMP snooping WAN connection  IGMP V1/V2/V3
• Firewall/Security: Traffic filtering based on UNI port, VLAN ID, 802.1p,UNI+802.1p or VLAN+802.1p
• DOS attack defending MAC address filtering
• BUM(Broadcast, Unicast, Multicast) attack protection
• Limit MAC address per UNI port or per ONT
• Broadcast packages rate limit   AES-128
• Broadcast storm suppression
• Rate limitation
• Classifying upstream traffic into VLANs with various Ethernet priorities
• Marking Ethernet priority based on DSCP value
• Ingress rate limit/ Egress shaping
• SP/WRR/SP+WRR
• TR-069 remote management
• Local WEB and telnet management Local built-in diagnostic function
• Logs and statistics  Loop back function
• OMCI management

Hardware Specifications

• WAN: One SC/APC port for GPON
• LAN: Four RJ-45 ports for Gigabit Ethernet interfaces
• FXS: Two RJ-11 ports for VoIP
• CATV: One RF interface
• UPS: One RJ-45(reverse) port for UPS monitor
• Button:  Reset   Power ON/OFF
• LED Status indicators : Power, PON, LOS, ALARM, LAN1, LAN2, LAN3, LAN4, POTS1, POTS2,  BATTERY

Physical Characteristics

• Net weight: 361g
• Size: 199 (W) x 150(D) x 35(H)
• Operating temperature: -5°C ~ 45°C (23°F ~ 113°F)
• Humidity: 5% ~ 95% (non-condensing)
• Electrical Characteristics
• Power input: 12 VDC 1.5A
• Power consumption: Less than 8W

CE certification
