1*8 1260-1650nm Steel Mini Module Type,0.9mm Cable Dia. 1.5m Length,with SC/APC Connector FTTH PLC Splitter

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	OPTFOCUS
Model Number	OFS

1.LowInsertionloss
2.Low PDL
3. HighReturnLoss
4. UniformPowerSplitting
5.CE,ROHS certification

PLC Splitter 1×8

Key Features:

Apllications:

Optical Specifications:

Parameter	Unit	Specification (P Grade)
Operation Wavelength	nm	1260~1650
Channel Number		1X2	1x3	1X4	1x6	1X8	1x12	1X16	1x24	1X32	1X64	1x128
Insertion Loss (Max.)	dB	4.3	6.2	7.4	9.8	10.7	12.5	13.9	16.5	17.2	21.5	25.5
Uniformity (Max.)	dB	0.5	0.6	0.8	0.8	1.0	1.0	1.4	1.5	1.6	2.0	2.6
Polarization Dependent Loss	dB	0.2	0.2	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.5	0.8
Return Loss	dB	≥50
Directivity	dB	≥50

Note: All the data above does not include connectors.

UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.

Parameter	Unit	Specification (P Grade)
Operation Wavelength	nm	1260~1650
Channel Number		2X2	2X4	2X8	2X16	2X32	2X64	2x128
Insertion Loss (Max.)	dB	4.3	7.6	11.0	14.8	17.9	21.5	25.8
Uniformity (Max.)	dB	0.8	1.0	1.2	1.5	1.8	2.0	3.0
Polarization Dependent Loss	dB	0.2	0.3	0.3	0.3	0.3	0.5	1.0
Return Loss	dB	≥50
Directivity	dB	≥50

Note: All the data above does not include connectors.

UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.

Environmental Conditions:

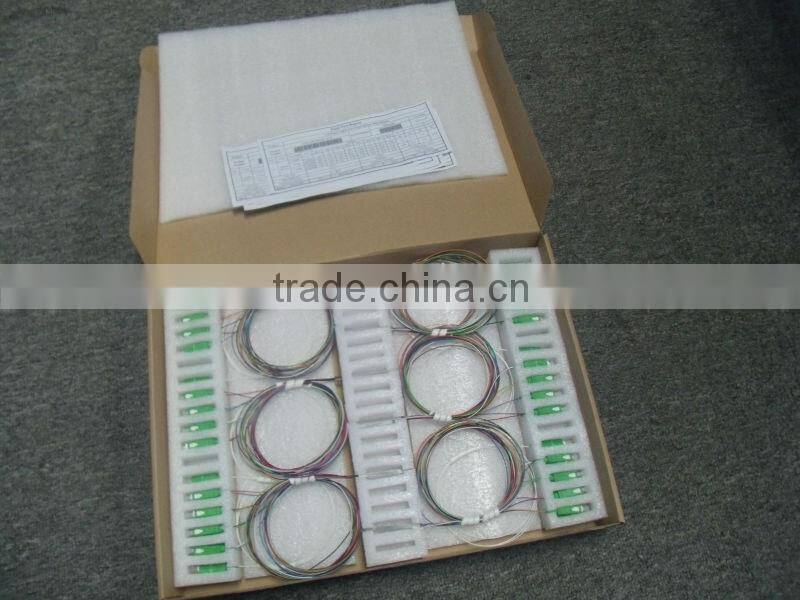

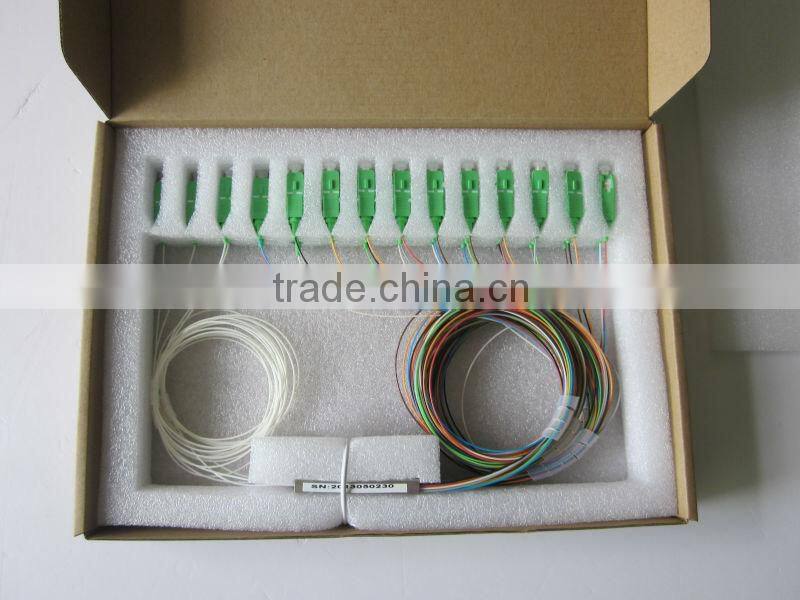

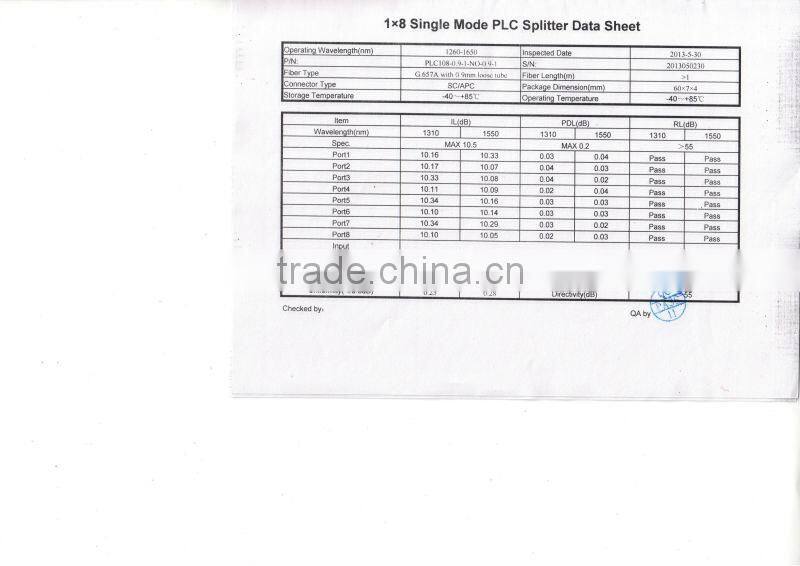

Photo:

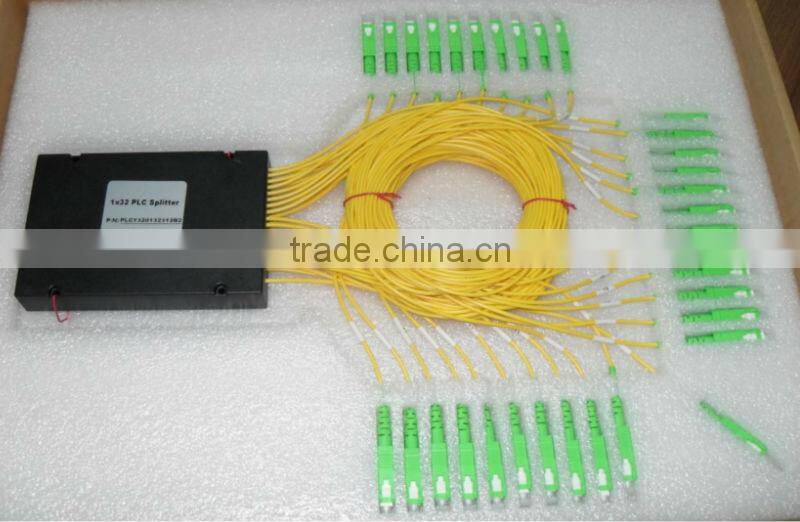

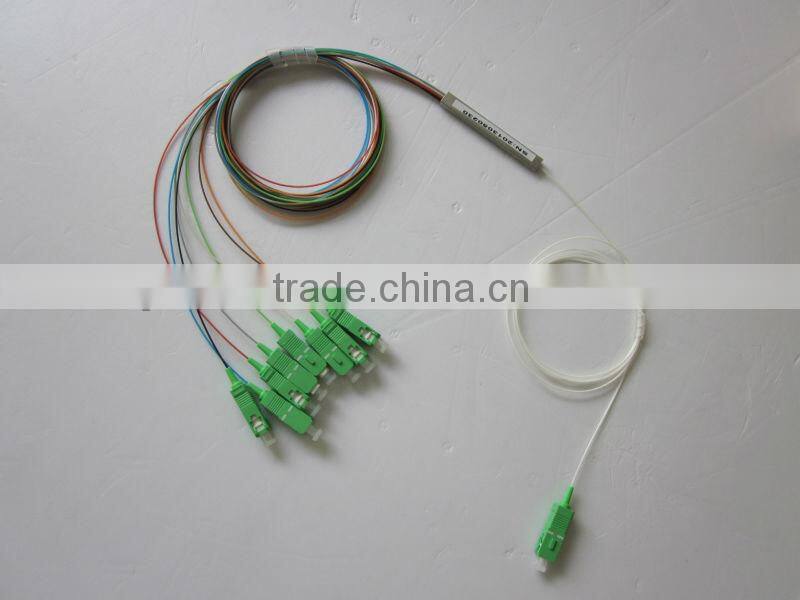

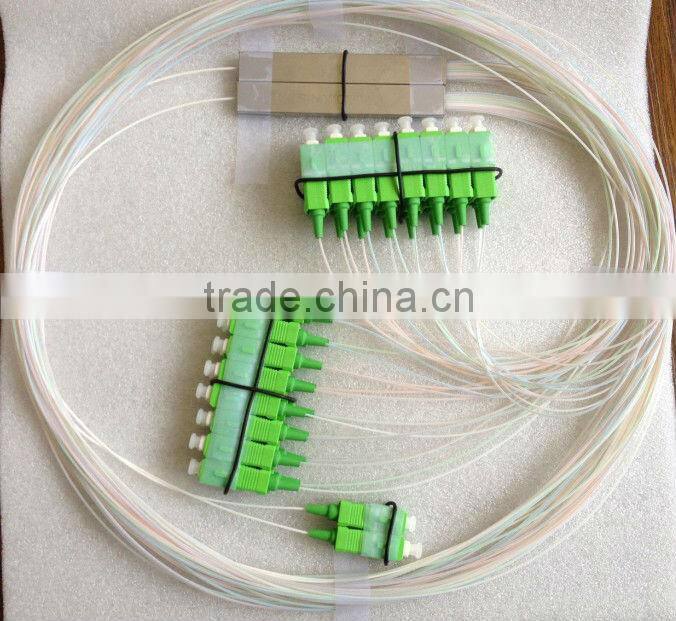

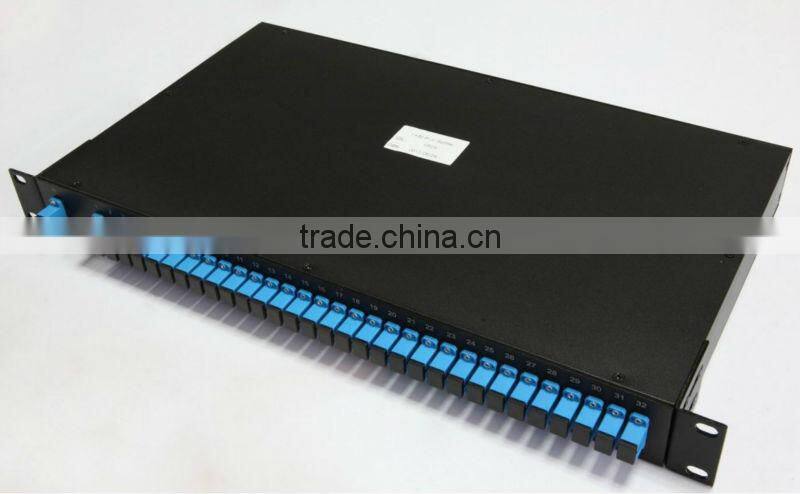

19’ RACK TYPE MINI MODULE TYPE ABS PLASTIC
