hdmi splitter to coaxial in optical fiber
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Optfocus |
Product Description
Specifications
SpecificationsFiber Optic PLC Splitter Low excess loss
Environmentally stable&reliable
PLC splitter meet Rohs and ISO9001
Specifications

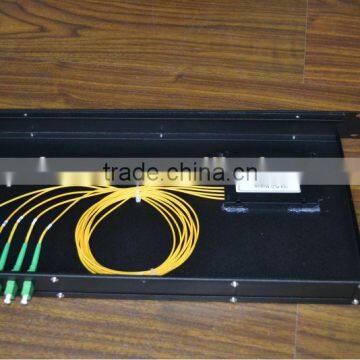

Rack mount 1*16 PLC splitter
Low Insertion loss&Low PDL
Uniform Power Splitting
Meet GR-1221&GR-1209 standard
PLC splitter rack mount type 1*16 :
Features:
Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Qualified Under Telcordia GR-1221 and GR-1209
Applications: 2x32 rack mount type optical PLC splitter
FTTX (FTTP, FTTH, FTTN, FTTC)
PON
LAN
CATV Systems
Performance Specifications:
Type | 1x2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2x2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | ||||||||
Operating wavelength(nm) | 1260-1650 | |||||||||||||||||||
Insertion loss (dB) | Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.5 | 20.5 | 4.0 | 7.3 | 10.5 | 13.5 | 17.0 | 20.5 | |||||||
Maximum | 3.8 | 7.2 | 10.7 | 13.9 | 17.2 | 22.0 | 4.2 | 7.6 | 10.8 | 14.0 | 17.5 | 22.0 | ||||||||
Uniformity (dB) | Typical | 0.4 | 0.5 | 0.6 | 1.0 | 1.0 | 2.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 | 2.0 | |||||||
Maximum | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2.5 | 0.8 | 1.0 | 1.5 | 2.0 | 2.5 | 2.5 | ||||||||
Polarization Dependent Loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | 0.2 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | |||||||
Maximum | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 | ||||||||
Wavelength dependent loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.3 | 0.3 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | |||||||
Maximum | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 0.2 | 0.2 | 0.2 | 0.3 | 0.5 | 0.5 | 0.5 | ||||||||
Return loss (dB) | Minimum | UPC:50 APC:55 | ||||||||||||||||||
Directivity (dB) | Minimum | 55 | ||||||||||||||||||
Operating temperature (°C) | -20 to 70 | |||||||||||||||||||
Storage temperature (°C) | -40 to 85 | |||||||||||||||||||
Optical fiber type | SMF-28e Or customer required | |||||||||||||||||||
Optical fiber length (m) | 1M or customize | |||||||||||||||||||
Remarks: | ||||||||||||||||||||
1 . Measured at room temperature and excludes connector loss. 2 . For devices with connectors insertion loss will be 0.3 dB higher. | ||||||||||||||||||||
