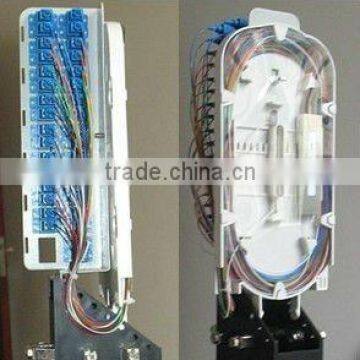

OFS-FTH-JM5 splitter closure

Item

Name

Quantity

Application

Remark

1

Cover

1 pc

Integrated protection of closure

2

Fiber splice tray

required

Fix the fiber, protect heat shrink tube, storage fiber and splitter

3

PLC splitter(2:32 in max)

2:32(1 pc)

2:16(2 pc)

Light splitting

Optional part

4

SC adapter

36 pcs

Connection

Optional part

5

SC-1.5m pigtail

32 pcs

Fusion with inlet cable

Optional part

6

Base

1 set

Fix the internal and external structure

7

Plastic hoop

1 set

Fix the base and cover

8

Sealing ring

1 set

Big sealing part for sealing cover and base, different small sealing parts for fiber sealing

9

Plastic plug

4 pcs

For non cable entry sealing

10

Valve

1 set

Gas-filled test air pressure and the sealing performance

Optional part

11

Earthling device

1 set

Leading the internal mental components to grounding

Optional part

Material

Application

Tape

Mark and temp fixation

Alcohol

Purity

Gauze

Purity

Tools

Application

Optical cable radial wire stripper

Ring peeling cable skin

Optical cable portrait wire stripper

Straight portrait peeling cable skin

Beam wire stripper

Peeling beam wire skin

Bare wire stripper

Peeling cable coating

Tapeline

Measure length

Tube cutting knife

Beam wire peeling

Electrician′knife

Wire-cutter

Cut metal core

Cross screw driver

Screw down belts

Scissors

Splice operations

Place products or tools

Instrument

Application

Heat sealing machine

Fiber connection

Optical time domain reflect meter(OTDR)

Test for connection result
