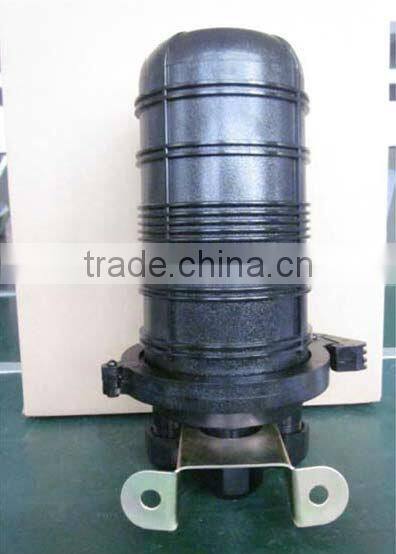

Calotte Mechnical Seal Split Joint Split Closure

Description

The OFS-FTH-SM4 is a small size specialized designed for FTTx application.

The product adopts fully-mechanical sealing structure. It can be used for Install PLC splitter application, as well as passive optical fiber distribution.

Features

ü  · Made from engineering plastic with high strength and anti-corrosion.

ü  ·Reinforce rebar on the body of closure make excellent performace under impact, pulling, tension etc

ü  ·Convenient to increase or reduce trays/ cassette for capacity requirement

ü  ·Spacious storing tray/ cassette for storing and maintainance

ü  ·3 fixing item/designs to prevent fiber cable from external effect

ü  ·Can be used from -40°C to +65°C temperature range

ü  ·Easy to re-enter without tools

ü  ·Intergrated seal, air tight and water proof, flame-retarded

ü  ·Exquisite small size design, convenience installation application

ü  · available 1 pcs of 1x8 or 1x16(LC duplex) splitter.

ü  · Suitable for wall-mounting or pole mounting application

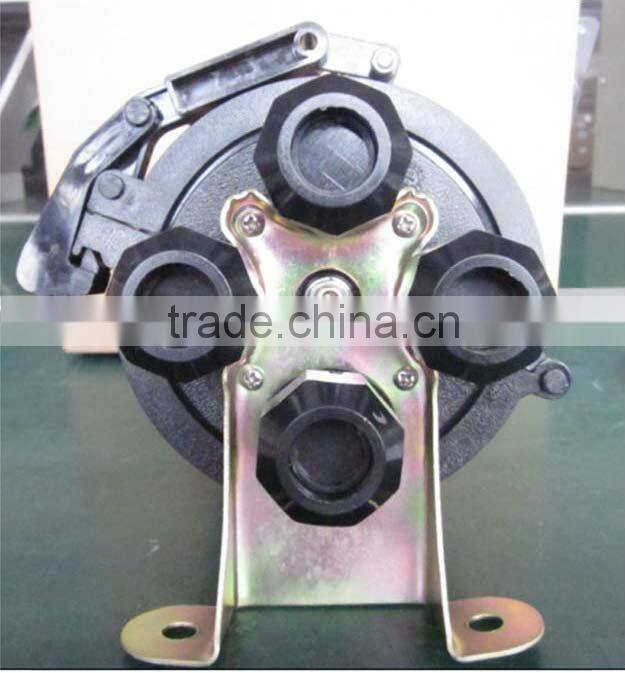

ü  ·4 pcs of small round port

ü  · suitable for mini module type of PLC splitter with SC connector or LC    connector, etc

ü  · Sealing method: mechanical sealing type

Application

ü  · FTTH, FTTB, FTTC

ü  · Telecommunication Network

ü  · CATV

ü  · Local Area Network

Standard Accessories: one set of wrench, metal hoop, earthing wire, nylon tie, labeling paper, splicing sleeves, sealing tape, insulation tape, emery cloth, wrench for reinforce core, 1M buffer tubeOptional Accessories: earthing device, air-pressure test valve

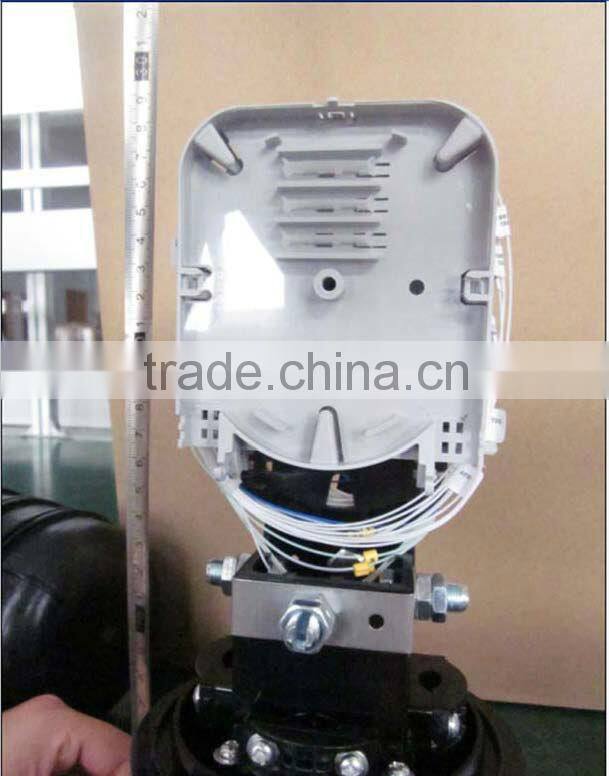

1,HHeight (295mmm)                                   2,IInside height(285mmm)

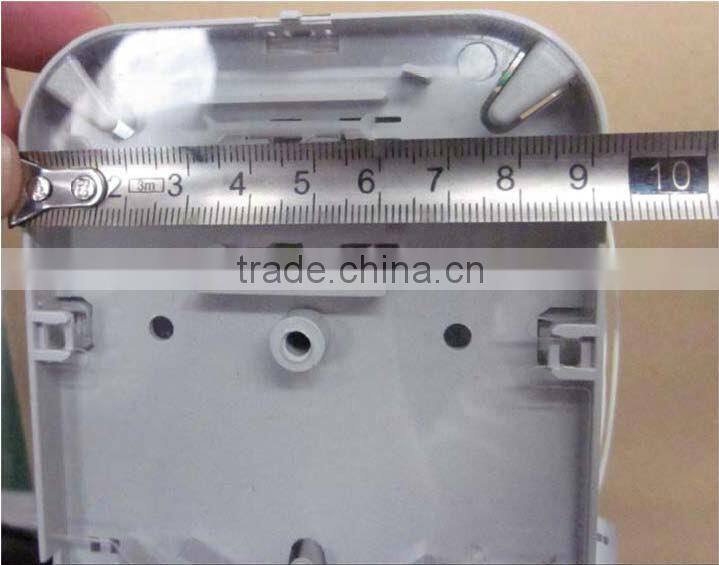

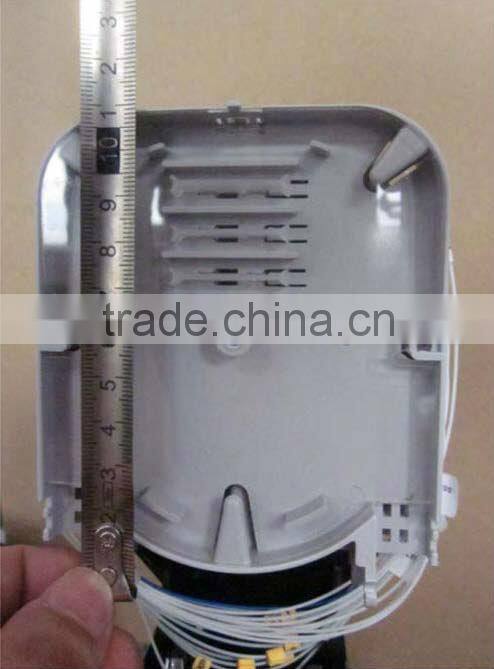

3,Splice tr ay width (91mm)           4,Splice tr ay height (1114mm)

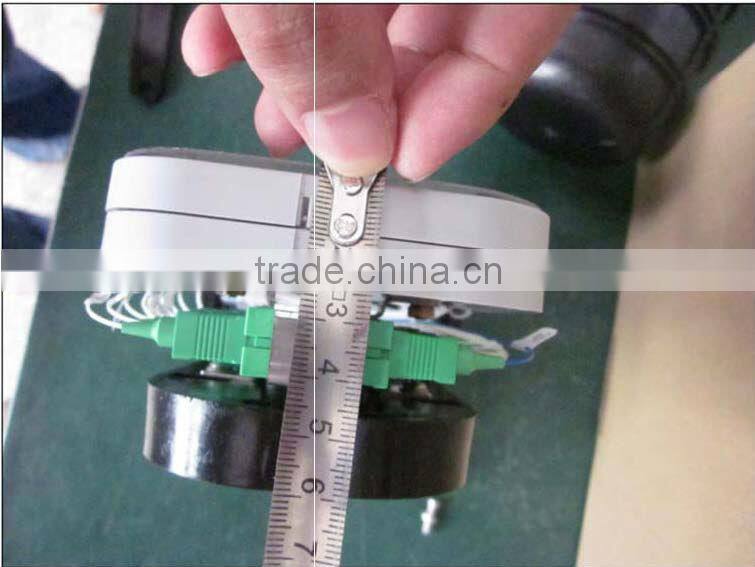

5,Inside deepth(60m m)                     6,IInlet hole(4ppcs φ5~φ18)
