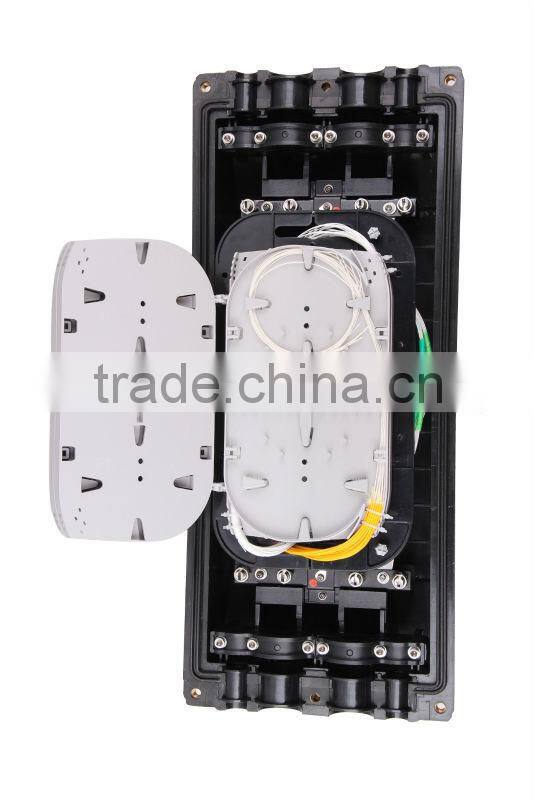

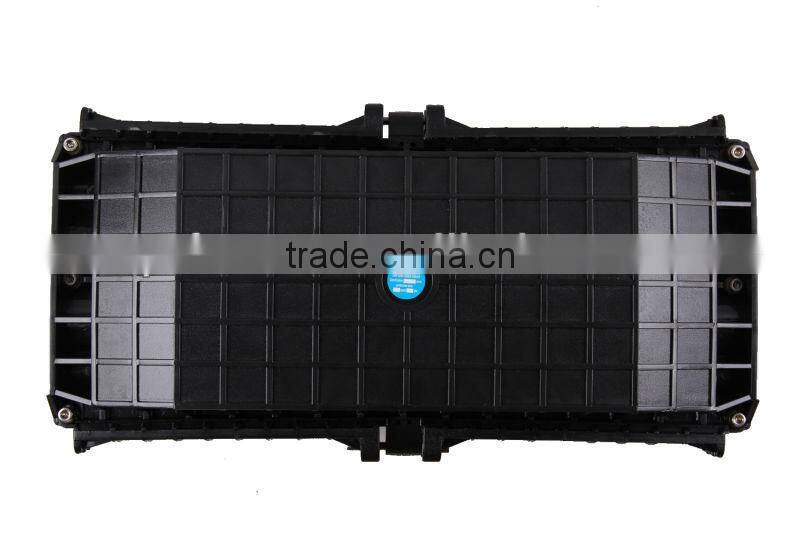

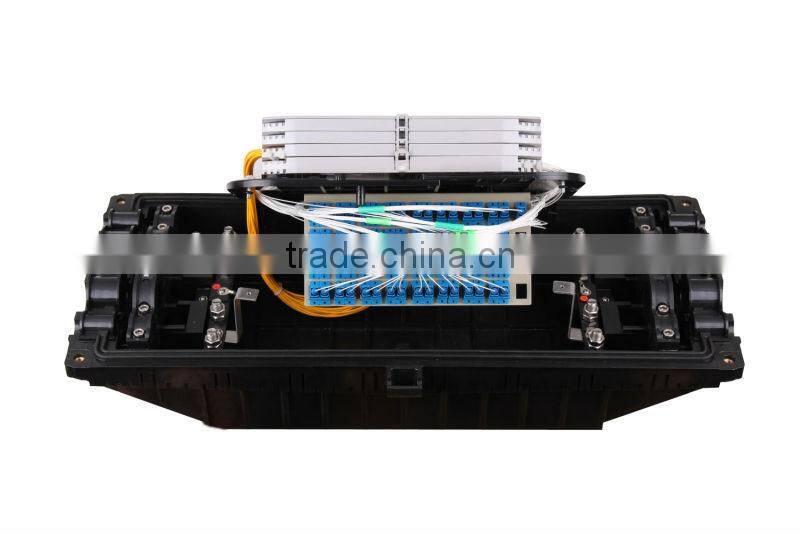

Horizontal Seal Splitter Splice Closure

Model No.

Size (mm) L×W×H

Core capacity

Cable Ports (max)

Max diameter of cable (mm)

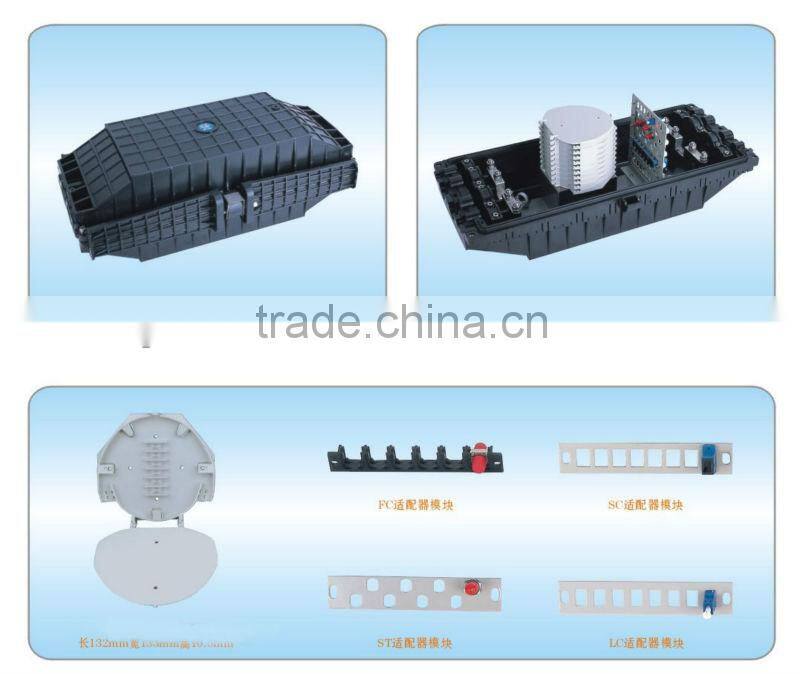

Adapter and holes of Front Panel

OFS-FTH-503

590x320x215

240

8

4×Ø41
4×Ø20

FC adapters:48PCS

SC adapters:96PCS

4×Ø26
4×Ø20

ST adapters:96PCS

LC adapters:96PCS

No.

Name of components

Quantity

Usage

Remarks

1

Housing

1 set

Protecting fiber cable splices in whole

Internal diameter:

500x205 (mm)

2

Insert plate

2 pairs

Fixing the housing

220x80x35(mm)

3

Fiber optic splice tray

(FOST)

Max 10 pcs (bunchy

Max 9 pcs (ribbon)

Fixing heat shrinkable protective sleeve and holding fibers

Suitable for:

Bunchy:24,36,48,72(cores) Ribbon:6,12,18 (pieces)

4

Fixing bracket

1 set

Fixing fiber cable and reinforced core

5

Foundation

1 set

Fixing FOST

6

Seal fitting

1 set

Sealing between FOSC cover and FOSC bottom

7

Port plug

8 pieces

Sealing empty ports

8

Pressure

testing valve

1 set

After injecting air, it is used for pressure testing and sealing testing

Configuration as per requirement

9

Earthing deriving device

1 set

Deriving metallic components of fiber cable in FOSC for earthing connection

Configuration as per requirement

No.

Name of accessories

Quantity

Usage

Remarks

1

Heat shrinkable protective sleeve

Protecting fiber splices

Configuration as per capacity

2

Nylon tie

Fixing fiber with protective coat

Configuration as per capacity

3

Insulation tape

1 roll

Enlarging diameter of fiber cable for easy fixing

4

Seal tape

1 roll

Enlarging diameter of fiber cable which fits in with seal fitting

Configuration as per specification

5

Hanging hook

1 set

For aerial use

6

Earthing wire

1 piece

Putting through between earthing devices

To put through as per actual requirement

7

Abrasive cloth

1 piece

Scratching fiber cable

8

Labeling paper

1 piece

Labeling fiber

9

Special wrench

3 pieces

Fixing bolts, tightening nut of reinforced core

10

Measuring paper

1 piece

To measure perimeter, of which the diameter is enlarged with seal tape

To measure perimeter with the corresponding measuring paper

11

Buffer tube

decided by customers

Hitched to fibers and fixed with FOST, managing buffer

Configuration as per requirement

12

Desiccant

1 bag

Put into FOSC before sealing for desiccating air.

13

Rubber hammer

1piece

Knocking in or knocking out inset plate
