Home > Products > Mining Cable (Flexible,Armoured,Shield,) > Cu /XLPE/ SWA/ PVC mining power cable
Cu /XLPE/ SWA/ PVC mining power cable
US$ 0.39 - 33.7
/ Meter
500 Meters(Min. Order)
- Guangzhou or according to your requirement
- T/T
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Hengfei | |
| Model Number | MYJV32,MYJV42 | Conductor Material | Copper | |
| Insulation Material | XLPE | Jacket | PVC | |
| Number of Conductors | Single core or multi-core | Application | Coal mining |
Product Description
Specifications
1.Standard:MT818.13-20092.Certificate:CQC ,3C,MA
3.Strict QC
4.99.95% purity copper conductor
5.Free sample

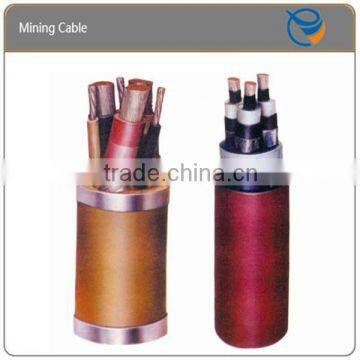

Cu /XLPE/ SWA /PVC mining power cable
Application
This series of product is applied to power transmission and distribution of central power switch room,electrical copper in
mining area ,mobile substations ,and comprehensive mechanized coal mining face,switchgears and so on
Construction
Technical data
The long-term working temperature of cable conductor is less than 90°C;
While short-citcuit the highest working temperature of cable conductor should be not more than 250 °C (5 seconds maximum
duration);
The enviromental temperature for laying cable should be not lower than 0 °C ;
While laying ,the minimum bending radius(D is the diameter):single core unarmoured is 20D,multi-core unarmoured is 15
D,single core armoured is 15 D,and multi-core armoured is 12 D.
