Mining Cable with XLPE Insulation PVC Sheath

FOB Price

US$ 0.36 - 33.5 / Meter

500 Meters(Min. Order)

Port Guangzhou or according to your requirement
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	Hengfei
Model Number	MYJV,MYJV22	Conductor Material	Copper
Insulation Material	XLPE	Jacket	PVC
Number of Conductors	Single core or multi-core	Application	Coal mining

Product Description

Specifications

1.Standard:MT818.13-2009
2.Certificate:CQC ,3C,MA
3.Strict QC
4.99.95% purity copper conductor
5.Free sample

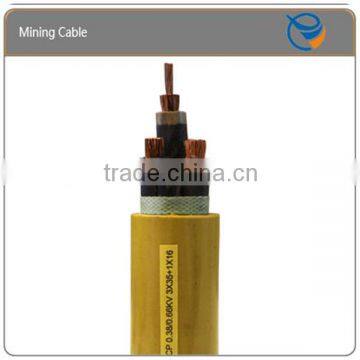

Mining Cable with XLPE Insulation PVC Sheath

Application

This series of product is applied to power transmission and distribution of central power switch room,electrical copper in

mining area ,mobile substations ,and comprehensive mechanized coal mining face,switchgears and so on

Construction

Technical data

The long-term working temperature of cable conductor is less than 90°C;

While short-citcuit the highest working temperature of cable conductor should be not more than 250 °C (5 seconds maximum

duration);

The enviromental temperature for laying cable should be not lower than 0 °C ;

While laying ,the minimum bending radius(D is the diameter):single core unarmoured is 20D,multi-core unarmoured is 15

D,single core armoured is 15 D,and multi-core armoured is 12 D.
