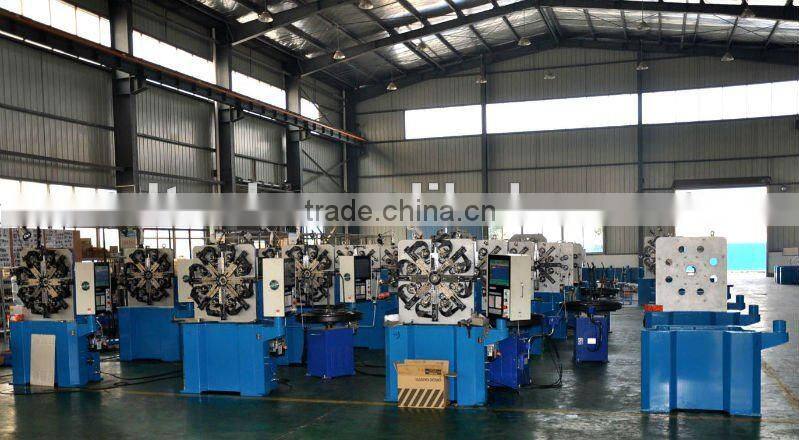

CNC Spring MachineGH-CNC35

Specifications

1. GH-CNC35 cam axis CNC spring coiling machines features:

   • GH-CNC35 spring machine is a  4/6-axis computerized spring machine consisting of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets of group slide rails, the crank and the cam rotation axis. The crank and cam rotation have three mechanical action types: extruding, punching and molding.
   • The computerized cam rotation system can be set from 0.1~359.9". The wire feeding system is installed horizontally back of the machine.Every two wire feeding wheels is one group,there are three groups.
   • GH-CNC35 spring machine is equipped with ADT-CNC502 computer. The computer system can save 1000 material numbers. Axis location, feeding data, production speed and production output are displayed on the screen. The program data can be set and changed easily.
   • The rotation core system is installed on the axis. The axis can rotate leftwards and rightwards. The rolling axis is installed on the sliding house.The cam can rotate up to 360" and also can move left and right or do the fixed-point motion.
   • For various tension springs, like English type and German type, a secondary processing house is installed on the main machine. The secondary processing house can be driven by one 2kw servo motor. The cylinder arm can take the semi-finished tension springs manufactured by the main machine and pass them to such secondary processing house. The control programming and cam system of the secondary processing house can work independently, so the production speed can be improved.
   Optional accessories:
            Cutting tool, rolling axis, secondary processing machine, safety door

   Technical paremeters for GH-CNC35 cam axis CNC spring coiling machines



   Model	GH-CNC35
   Axis	4 or 6 Axis
   Diameter	0.8~3.5mm
   Max Feeding Dia	100mm
   Max Feeding Length	unlimited
   Max production speed	75RPM
   Probe	4set
   Cam Servo Motor	5.5kw
   Wire Feed Servo Motor	5.5kw
   Axis Servo Motor	1.0kw
   Coiling Axis (optional accessories)	1.0kw
   Power AC	three-phase 380V
   Dimension	1900 X 1005 X 1900mm
   Weight	1800kg
