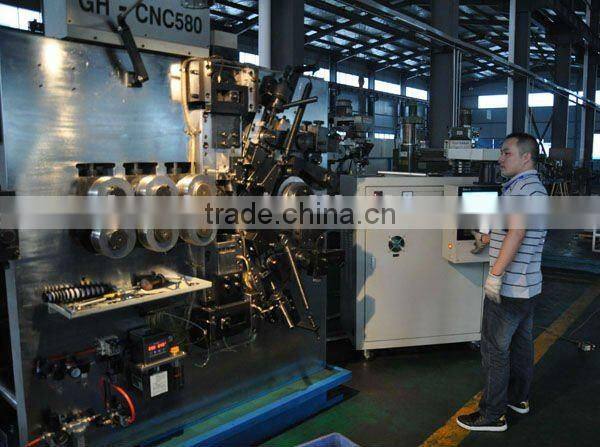

CNC Spring Coiler GH-CNC580

FOB Price

US$ 1 - 1 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	ADTECH
Model Number	GH-CNC580

1.GH-CNC580 is a 5 axes computerized compression spring machine,including wire feeding axis,outside diameter axis, space axis a

5 axes CNC spring coiling machine GH-CNC580 feature:

GH-CNC580 is a 5 axes computerized compression spring coiling machine,including wire feeding axis,outside diameter axis, space axis and cutting tool axis.
Wire feeding axis is controlled by a 25KW servo motor,can feed unlimited length,and tolerance is between 0.1mm.The highest feeding speed is 30meters/min.
The cutting tool axis has 2 sets 7kw servo motors,separatelly control the upper and lower blocks.
space axis is controlled by a 3.8KW servo motor,and it could gurantee high precisely pitch of screw by a ball screw.
outside diameter axis is controlled by a 2.7KW servo motor,through cam and planar lever to change it.

Technical paremeters for 5-axis cnc compression spring machine GH-CNC580:

Model	GH-CNC580
Axes Number	5
Wire size	3-8mm
Outer diameter	150mm
Max. Feeding length	unlimited
Wire feeding servo motor	25kw
Cutterservo motor	7.0kw
Outside diameter servo motor	3.8kw
Pitch servo motor	2.7kw
Power AC	380V 50Hz
Dimensions(LxWxH)	2500x1800x2250mm
Weight	8000kg
