Home > Products > Stepping/Servo Motor And Driver > Low Cost Panasonic 750w,2.3Nm,3000rpm,low Inertia ,20bit Incremental Encoder 3phase AC Servo Motor
Low Cost Panasonic 750w,2.3Nm,3000rpm,low Inertia ,20bit Incremental Encoder 3phase AC Servo Motor
US$ 1.00 - 1.00
/ Set
1 Set(Min. Order)
- Shenzhen port
- Credit Card
You May Like
Product Details
| Brand Name | Panasonic | Model Number | MSMJ082G1U | |
| Type | Servo Motor | Frequency | 50/60Hz | |
| Output Power | 200w | Protect Feature | Totally Enclosed | |
| Phase | Three-phase | Certification | CCC, CE, UL, VDE | |
| AC Voltage | 208-230 / 240 V | Place of Origin | Guangdong, China | |
| Efficiency | IE 4 |
Product Description
Product Description
| Model | MSMJ082G1U |
| Match driver | MADKT3520(1.Total function type and Only pulse function type) |
| Rated Powr(watt) | 750 |
| Rated torque(N.m) | 2.4 |
| Peak torque(N.m) | 7.1 |
| Rated speed(rpm) | 3000 |
| Max speed(rpm) | 4500 |
| Encoder feedback | 20bit incremental(Resolution: 1048576) |
| Rotor inertia (Kg.m2×10-4) | 0.87 |
| Weight (Kg) | 2.3 |
| Insulation grade | B |
| Rating | Continuous |
| Installation mode | 80mmX80mm |
| Ambient temperature and humidity | Working temperature: -20°C ~+65°C; relative humidity: 20~85% RH (no condensing) |

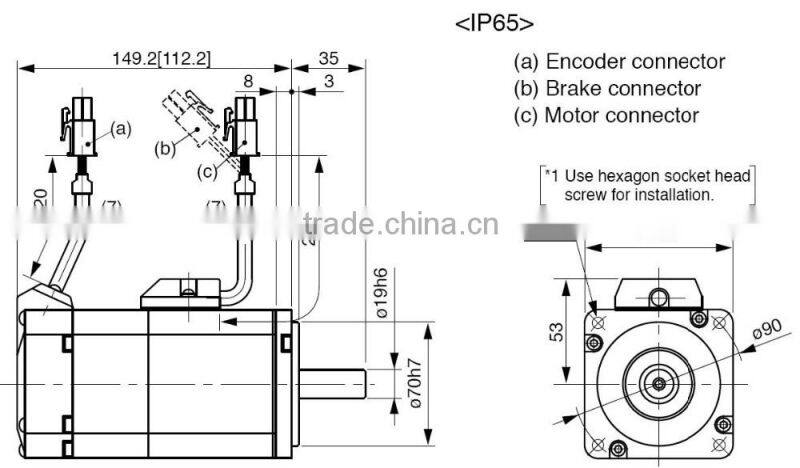

Drawing
