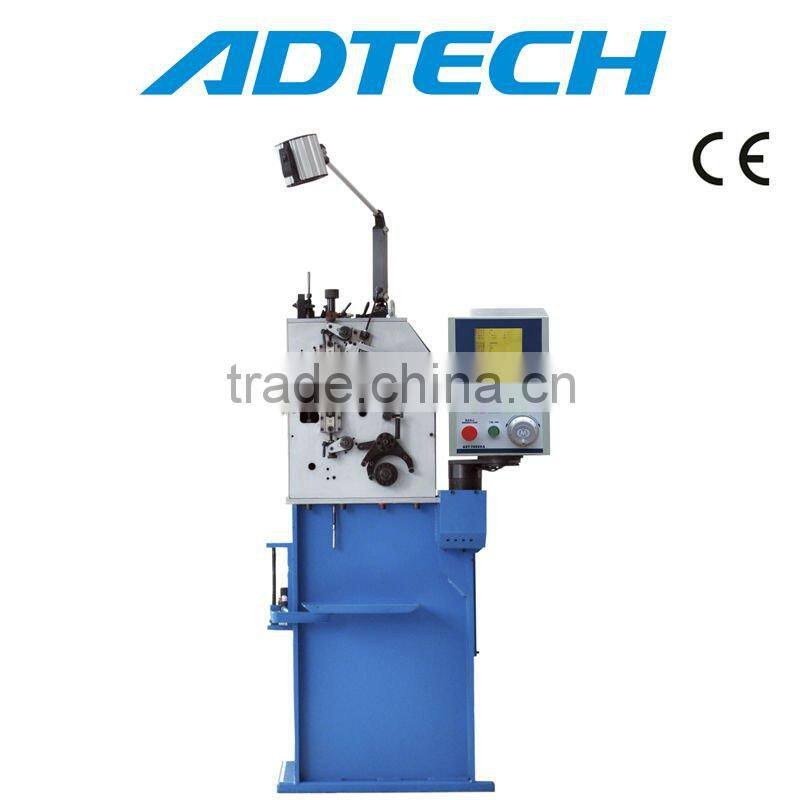

Compression Spring Making Machine GH-CNC2208

Specifications

1. GH-CNC2208 compression spring making machine Making Spring Example






   GH-CNC2208  compression spring making machine feature:

   1. GH-CNC2208 spring roll machine is a two-axis computerized spring roll machine consisting of wire feeding axis and cam axis. The two axes can work independently or synchronously by means of the program.
   2. The space, outside diameter and cutting tools are driven by the cam motor. The wire  feeding is driven by independent feeding motor.
   3. The cutting tools can be adjusted by the cabinet's inside and outside easily and quickly.
   4. This spring machine can manufacture various compression springs, oil seal springs, battery springs etc.



   Optional accessories:

            Torsion device, oil seal device, prize-up device, length gauge



   Purchase guidance:

   1. GH-CNC2208 high speed compression spring roll machine;
   2. GH-CNC2208L torsion and compression spring roll machine;
   3. GH-CNC2208Y oil seal compression spring roll machine.



   Technical paremeters for 2-axis  compression spring making machine GH-CNC2208:



   Model	GH-CNC2208
   Axis	2 Axis
   Diameter	0.15~0.8mm
   Max Feeding Dia	20mm
   Max Feeding Length	unlimited
   Max production speed	500RPM
   Probe	2set
   Cam Servo Motor	1.0kw
   Wire Feed Servo Motor	1.0kw
   Power AC	three-phase 220V
   Dimension	870 X 780 X 1600mm
   Weight	350kg
