GCJ02-50-I/IIBH Weighing type automatic liquid filling machine for paint
- 800 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
DGP-Z-6D PLC control paint filling machine
-
SL750F aerosol spray paint filling machine Quality Choice
-
SLF-80Z Metal Tube Filling and Sealing Machine
-
SLF-60Z Metal Tube Filling and Sealing Machine
-
GCJ04-06-IAQ Weighing Type Automatic Liquid Filling Machine ,plc control paint filling machine Quality Choice
-
GCJ01-50-I/IIBZ Weighing type semi-automatic liquid filling machine
Product Details
Condition | New | Application | Chemical | |
Packaging Type | Cartons | Packaging Material | Wood, Other, Wood, international sea freight package | |
Automatic Grade | Automatic | Driven Type | Pneumatic | |
Voltage | 380V | Power | 50HZ | |
Place of Origin | Jiangsu, China | Brand Name | SAILING | |
Model Number | GCJ02-50-I/IIBH | Dimension(L*W*H) | 2255X800X1430MM | |
Certification | ISO CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

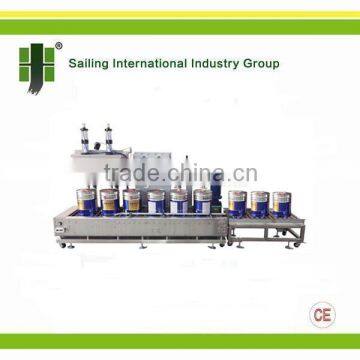

GCJ02-50-I/IIBH Weighing type automatic liquid filling machine, filling machine for paint
Main features:
This filling machine is suitable for the filling of small-opening barrels within 50 kg.
This machine is able to adapt to round and square barrels. It’s equipped with double heads cap pressing machine.
Suitable material: paint, printing ink, glue, curing agent, solvent.
Product standards: Q/320281ATB02-2013
Suitable material:
Coating, paint, ink, glue, curing agent, solvent, chemicals, detergent, pestiside, medicine, lubrication oil and all kinds of flowing liquid.
Main functions:
Manual barrels positioning, automatic double heads filling.
Barrels are pushed forward by motor, it is equipped with double cap pressing mechanism
Barrels positioning and cap placing can be done by one operator.
Round and square barrels, with small opening can be adapted.
I is the hopper type, II is top filling type filling head.
Thefilling head of filling machine can enter into the barrel before filling, when the filling head is not in the right position, it will return automaticlly.
Double heads filling and single head filling choosable
Automatic alarm when filling error exceed setting limit.
A is normal model, B is explosion proof model.
Explosion proof grade: EXD IIBT6.
The machine has the common fuctions of weighing type filling machine.
Main Technical Parameter
Weighing scope(kg)
| ≤50 | Filling accuracy(g)
| ≤±10 | Power source | AC380V50HZ /0.75KW |
Filling heads | 2 | Filling speed (can/min | 6-8 | (Mpa/m3/min) | 0.5/0.3 |
Division value(g)
| 5 | Barrel Dimension(mm)
| ≤dia.350×h370 | Outside dimension(mm)
| 2255×800×1430 |
TESTING REPORT | YES. Always provide official test report before delivery. | ||||
OEM SERVICE | YES | ||||
CERTIFICATE | BV PRODUCT CERTIFICATE. CE | ||||
COLOR | WHITE, BLUE OR OPTIONAL | ||||
PRICE | |||||
PAYMENT | T/T, L/C, | ||||
PORT | SHANGHAI, SHENZHEN,GUANGZHOU | ||||
MOQ | 800SETS/YEAR | ||||
DELIVERY TIME | 30 DAYS FOR STANDARD MACHINE | ||||
NOTE | |||||
We will offer you price referring to your detail request, so please kindly inform us of the material, viscosity, density, etc, and other requirements you prefer, and the special offer will be given. The pictures are above just for your reference. | |||||
ABOUT US | |||||
Sailing International Trading Co., Ltd. is the main supplier of coating machines in China. Sailing International Industry Group Limited is mainly engaged in manufacturing and global marketing of chemical machinery and auto parts. Our group has the following subsidiary companies, namely Nantong Sailing International Trading Co., Ltd., Shanghai Sanhuan Ink Equipment Engineering Technique Co., Ltd. and Sailing Auto Parts Factory. Our company has wide supply resources and enjoys good reputation both at home and abroad. We are one of the leading manufacturers and exporters of coating machines in China. Also, we act as an export agent for many key manufacturers of coating machines in China. Our company cooperates with multinational companies closely. We have a professional selling and after-sell services teams in Southeast Asia, Middle East Asia, and Eastern Europe. Our company provides professional and experienced export services for manufacturers in China. Our suppliers and distributors must have an opportunity to make a fair profit when they cooperate with us. We sincerely wish to cooperate with you. Please contact us at your convenience.
| |||||
CONTACT | |||||
ATTN | RICHARD SUN | ||||
TEL | 86-0513-85109830 | 86-0513-85109691 | 86-0513-85518153 | 86-0513-55013135 | |
EXTENSION NO. | MARKET | ASIA: 104, 105 EURO&AFRICA:118,119 AMERICA: 102 OTHERS: 101 | |||
TECHNIC& AFTERSALE | 107 | ||||
FAX | 86-85109939 | ||||
EMAL | SAILING at SAILING-INTL.COM | ||||
WEBSITE | WWW.SAILING-INTL.COM | ||||
| WWW.CHINACOATINGMACHINE.CN | ||||
Your inquiry will be answered within 24 hours. Wishing to be your long-term partner, please feel free to contact us. We will do our best for you. |
