DGP-Z-16D PLC Controlled Piston Filling Machine, Agrochemical Weighing Filling Machine Quality Choice

SAILING INTERNATIONAL INDUSTRIAL GROUP LIMITED

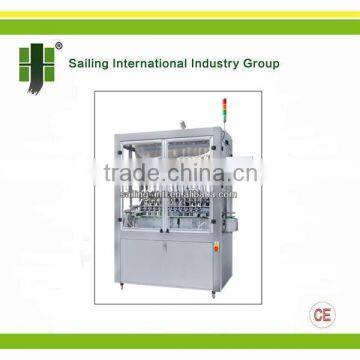

DGP-Z-16D PLC Controlled Piston Filling Machine, Agrochemical Weighing Filling Machine

Major Characteristics:
This type of machine is suitable for liquid and semi liquid without gas. It automatically count inlet bottles, quantifiably fill each bottle, and deliver outlet bottle. It is especially good for filling SL, EC, SC, Edible oil, lubrication. This filler is an idea choice for foodstuff, pharmacy cosmetic chemical, and pesticide factories.
1. This filler adopts PLC to control the filling process. Touch screen control panel makes it easy to set. It has wide application.
2. The filler takes advantage of the advanced Mechanic Electronics technology. You can change the packing specifications by changing parameter on the touch screen. Not only all the 16 filling heads can be regulated, but also each filling head can be regulated respectively.
3. Touch screen technology makes the machine more reliable and handy as a friendly man-machine interface. Photoelecticity sensor, approximate switch and other elements are of international famous brand, it ensures no bottle miss filling. It will alarm if the bottle is blocked.
4. It uses diving method to fill bottles; you can choose different sealing rings to meet different filling material.
5. It meets the GMP requirements, it is easy to disassemble, clean and maintain. And the parts which contact with the filling products are made of high quality stainless steel. The whole machine is safe, eco-friendly and sanitary. It adapts to several working places.

Main Performance Parameter:

1. Outline dimension (L×W×H):2000mm×1100mm×2200mm

2. Number of filling head: 16

3. Bottle application:

Diameter: 40mm~200mm

Height: 80mm~500mm

4. Diameter of bottle mouth:≥18mm

5. Suitable range: 500ml~2000ml

6. Production capacity: ≤3600 bottles/hour

7. Filling Error:≤0.5%

8. Voltage: 220V; 60HZ

9. Power of host machine: 1.5kw

10.Air consumption::0.55Mpa~0.65Mpa clean and stable compressed air

USAGE

Warranty

One year guarantee with 24 hours service.

Can extend to 5 years optional.

 Please ask for more details from us freely;

 Machine Standard optional.

Machine colors optional;

Can Made to order.

OEM

TESTING REPORT

YES. Always provide official test report before delivery.

OEM SERVICE

YES

CERTIFICATE

BV PRODUCT CERTIFICATE. CE

COLOR

WHITE, BLUE OR OPTIONAL

PRICE

PAYMENT

T/T, L/C,

PORT

SHANGHAI, NINGBO, SHENZHEN, GUANGZHOU

DELIVERY TIME

15DAYS FOR STANDARD MACHINE

NOTE

We will offer you price referring to your detail request, so please kindly inform us of the material, viscosity, density, etc, and other requirements you prefer, and the special offer will be given.

The pictures above are just for your reference.
