Mattress Foam Automatic Horizontal Continuously Making Machine Line
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Max Mattress Sponge Foam Horizontal Continuously Foaming Machine Line
-
Horizontal Automatic Continuous Foaming Machine for Mattress Sponge
-
PU Sponge Recycled Foaming Machine/with Steam
-
Automatic Horizontal Continuous Sofa Sponge Foaming Machine
-
New Type Automatic Continuous PU Sponge Foaming Production Line Quality Choice
-
Automatic Continuous PU Foaming Production Line Quality Choice
Product Details
| Condition | New | Type | Foaming Machine | |
| Plastic Type | Other, polyurethane foam machine | Product Type | Other, mattress foam making machine, Mattress foam making machine | |
| Automatic | Yes | Place of Origin | Guangdong, China | |
| Brand Name | QHAMCH | Model Number | QHF-2015 | |
| Voltage | 380V | Power(W) | 120KW | |
| Weight | 35tons | Dimension(L*W*H) | L86m*W4m*H3m | |
| Certification | CE Certificate | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

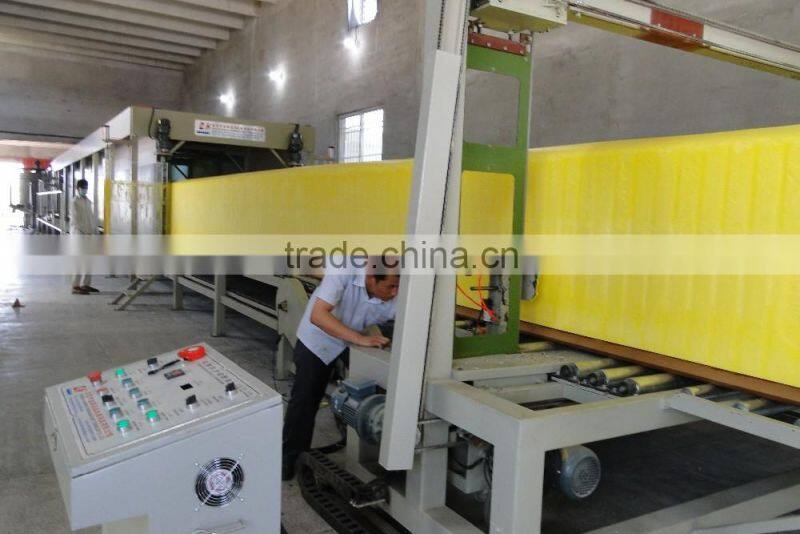

mattress foam automatic horizontal continuously making machine line
This is the automatic horizontal continuously foam making machine for make the foam in mattress sofa shoes and also car or other industiral use. It was automatic control by the PLC with the touch screen. It can save the formular automaticly and make different density and color without the stop of the machine.
Main specifications
Max.Output Capacity: | 200~350kg/min(Continuous Type) |
Mixer Total Power: | 37kw |
Max.Mixing Speed: | 2500~6000r/min |
Foaming Type: | Trough & Sprayer |
Standard Material Q.T.Y.: |
13 Groups. |
Foaming Size: | W2300mm*H1300mm(Width Adjustable) |
Control System: | PLC Digital Touch Screen |
PPG Tank: | 5Ton*1Set. |
POP Tank: | 5Ton*1Set. |
TDI Tank: | 5Ton*1Set. |
MC Tank: | 2Ton*1Set. |
Caco3 Tanks | 5Ton*1Set |
T-9/Amine/Color 1ABCD/ Silicone /Water Tanks | 180L*8Sets |
Side Wall Size: | L16m*H1200mm |
Fallplate: | L8.5m*W0.98~2.4m(Adjustable) |
Foaming Platform: | L2000mm*W3000mm*H700mm |
Conveyor Line: | L16.9m |
Side/Bottom Paper Feed & Rewind System: | 2Sets. |
Walkway: | W500mm*L15m |
Air Valves | U.S. Standard |
Chiller(Both Cooling & Heating System): |
1Set*1.5HP |
R.S.Pulling System: |
1Set. |
Foaming Density Range: |
8~150kg/Cubicmeter. |
Match With Block Cutter: | 1Set. |
Total Motor Power: | Approx 125kw. |
Machine N.W.: |
Approx 30 Ton |
Floor Space Required: | L45m*W5m*H4.5m. |
Remark: The above only for reference. All the data is subjected to the sold production.

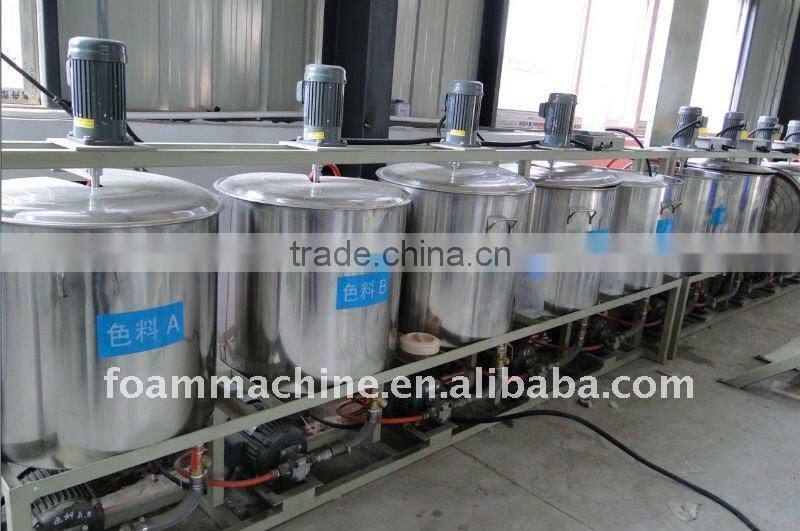

Material tanks

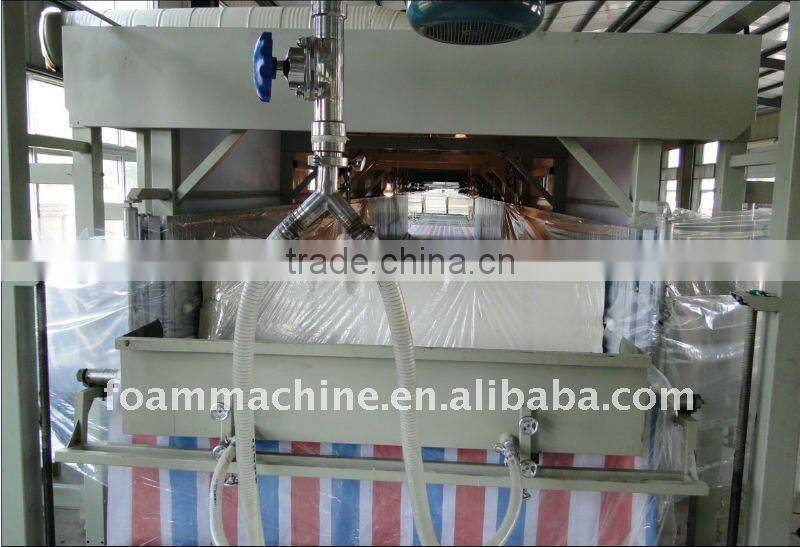

Spray way of foam

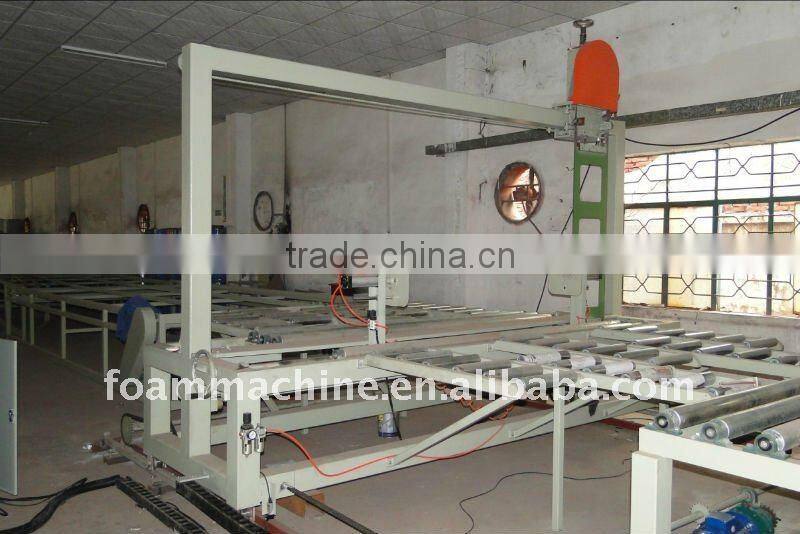

Blade block cutter

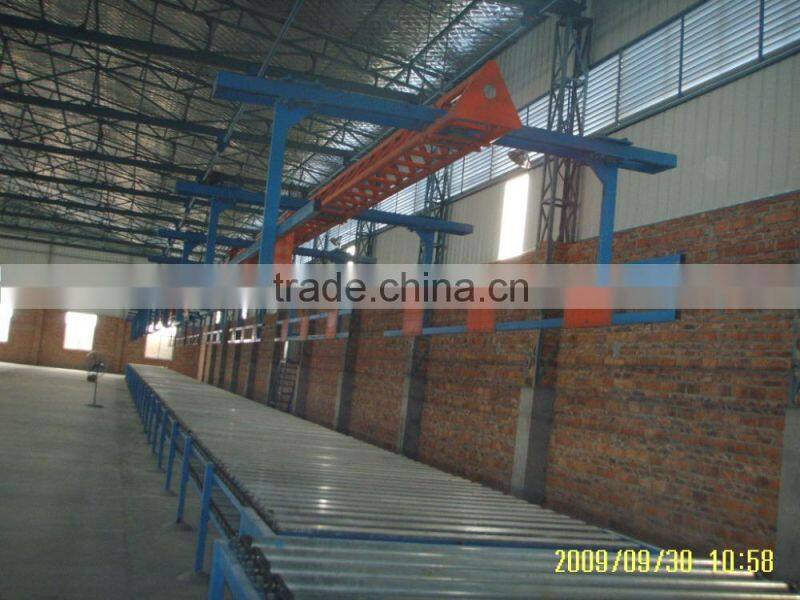

50m conveyer and clamp with crane
mattress foam automatic horizontal continuously making machine line
Flow meter for TDI WATER MC
continuous polyurethane foam production line
Dongguan Qianghui Foaming Machinery Technology Co.,Ltd is specialized in research and development and manufacture foam machines. Take the advance technology of some profession and improvement. Absorb the new originality strictly control the product quality full service tracking insist on manufacturing the high quality products. Our main products Horizontal Continuous Auto-foaming Production Line can make the foam for furniture industrial shoes industrial and so on. Our foam machines sales well in and out of China have an excellent public reputation. Our concept is “innovating, quality, service, dedication, thankful”. Try our best to be the No.1 in foam machine industries.
Superior service never ends here and your satisfactions is our goal. Choosing Qianghui work together and strive for the better.
How is the shipping for such a big machine?
The machine will be pack in nude packing just by some paper with plastic film and some small parts will be pack in wooden case.
How is the loading for the machine?
The machine will be load in 2*40HQ+1*20GP total three containers.
The seller will send 2-4 technicians to the buyer for the installing, and need the buyer send several employees for help and cooperation, and provide the water, electricity facilities and place for installing.
The seller should provide the operation manual and the routine maintenance guidance to the buyer’s engineer.
After the warranty period the seller should provide the lifelong paid service.
Q:If we have no knowledge about the foam can you help to give us all the details and teach our engineer?
A: During the install and the testing of the machine your engineer need to work together with our engineer then they can learn the foaming and the opearting of the machine.
After the testing we will also give you the best operation manual and formualtion abt the foam that you are going to make.
Q: We cant buy the raw material for foaming in our country ?
A: We can help to buy the best chemicals for the foam products that you are going to make and provided the best formular save the cost and make the best product then gain more market.
If you want to have more information about this just feel free to let us know.
