Horizontal Continuous polyurethane foam making machine
- 20 Set / Sets per Month
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
QH Dongguan low pressure polyurethane foam machine
-
QHFP-11/15A Horizontal Manul Foaming Macking Machine
-
Horizontal Continuous polyurethane Sponge foam making machine
-
PLC Control Semi-automatic Foaming Machine
-
Low Pressure Hard Polyurethane Foam Production Line
Quality Choice
-
QH Automatic Continuous PU Foam Making Machine
Product Details
| Product Type | Other, Horizontal Automatic Foaming Machine | Place of Origin | Guangdong, China | |
| Brand Name | QHMACH | Model Number | QHF-2016 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
continuous polyurethane foam production line
[Equipment features]
This machine is mostly used to produce large-scale continuously foaming production (density is about 6 to 100 kg/m3 ). It adopts the advanced touch screen and PLC Operation System, its automatization level is high, the production is low-cost and the quality fo foam is outstanding.
It is the most ideal equipment for large-scale foaming productions. Man-machine interface, non-stop the machine can change formulas, it can produce the British elevation high-slow rebound, electronic cotton, brassieres cotton, polyester cotton, yellow-resistant up to 3-5 level, add powder 10 to 200 parts, the lowest density 6-100, it also can produce on machine.
[Specifications]
Dimension | L33M×W4M×H3M |
Foaming width | 980mm~2250mm |
Foaming height | Under 1200mm |
Foaming density | 6kg/m3~100kg/m3 |
Foaming speed | 2000rpm~7000rpm |
| Oven Length | 18m | Inner Conveyer length | 18m |
| Foaming Height | 1.0-1.25m | Side Borar Adjustable Width | 0.98-2.3m |
| Foaming Width | 1.0-2.25m | Conveyer Belt Speed | 0-8m/min |
| Foaming Density | 6-100kg/m3 | Fall Plate | Six section adjustable |
| Total Power | 130KW | Total output | 100-300kg/min |
| Voltage | 380V | Dimension(L*W*H) | L33*W4*H3m |
(1)The whole machine parts specifications:
1.Foaming control Platform(standard) L3m×W2.52m×H0.7m
2.Oven declining board (standard) L9m×W0.98m~2.30m
3.Oven side links(standard) L18m×W2.3m×H1.2m
4.Oven machine frame(standard) L18m ×W4m×H3m
5.Oven inner conveyer line (standard) L18m×W2.3m×H0.83m
6.Foam block cutter machine (standard) W2.3m×H1.30m(saw/knife with cross type )
(2)Main technique specification
1.Total length 33m× width 4m×Height 3m
2.Foaming material Group: 13 groups, man-machine interface, automatically computer control.
3.Foaming width 980mm~2250mm
4.Foaming height Max 1300mm
5.Foaming density 6Kg/m³~100Kg/m³
6.Foaming speed 2000r/min~7000r/min
7.Max total output 300KG/min
| Motor | Guangdong brand |
| Pump | Viking pump & Chinese pump |
| Invertor | Siemens brand |
| PLC | Siemens |
| Temperature | Control system |
Remark:The above only for reference. All the data is subjected to sold products.

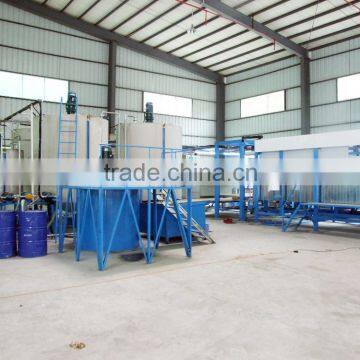

polyurethane foam production line
The frame of production line
polyurethane foam production line
The foam oven
polyurethane foam production line
Foaming control platform
polyurethane foam production line
Mixing head and material tanks
The Sponge
Warmly welcome you to come and visit our factory.
continuous polyurethane foam production line
Qianghui Machinery is specialized in research and development and manufacture foam machines. Take the advance technology of some profession and improvement. Absorb the new originality strictly control the product quality full service tracking insist on manufacturing the high quality products. Our main products QHF-2016 Horizontal Automatic and Continuous Foam Production Line can make the foam for furniture industrial shoes industrial and so on. Our foam machines sales well in and out of China have an excellent public reputation. Our concept is “innovating, quality, service, dedication, thankful”. Try our best to be the No.1 in foam machine industries.
We can make the high density foam and memory foam and own out brand name “ QH “ products sales well all over the worlds.
Superior service never ends here and your satisfactions is our goal. Choosing Qianghui work together and strive for the better.
How is the shipping for such a big machine?
The machine will be pack in nude packing just by some paper with plastic film and some small parts will be pack in wooden case.
How is the loading for the machine?
The machine will be load in 2*40HQ+1*20GP total three containers.
The seller will send 2-4 technicians to the buyer for the installing, and need the buyer send several employees for help and cooperation, and provide the water, electricity facilities and place for installing.
The seller should provide the operation manual and the routine maintenance guidance to the buyer’s engineer.
After the warranty period the seller should provide the lifelong paid service.
Q:If we have no knowledge about the foam can you help to give us all the details and teach our engineer?
A: During the install and the testing of the machine your engineer need to work together with our engineer then they can learn the foaming and the opearting of the machine.
After the testing we will also give you the best operation manual and formualtion abt the foam that you are going to make.
Q: We cant buy the raw material for foaming in our country ?
A: We can help to buy the best chemicals for the foam products that you are going to make and provided the best formular save the cost and make the best product then gain more market.
