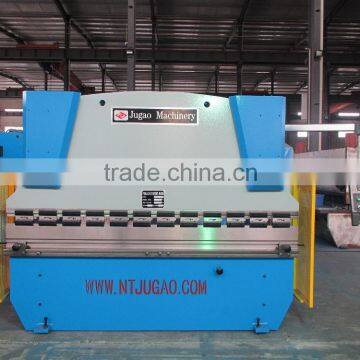

WC67K-63T/25000mm ,aluminum sheet bending machine, 2.5M metal plate press brake Quality Choice

FOB Price

US$ 6,000 - 7,000 / Acre

1 Acre(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	JUGAO	Model Number	WE67K
Machine Type	Roller-Bending Machine	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Carbon Steel	Power	Hydraulic
Automation	Automatic	Extra Services	Other, Prebending of both edges
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

We can talk on line now. Please click me.

Company Information

1.Company Name: Nantong Jugao Machinery Co Ltd

2.Machine Brand: JUGAO

3.JUGAO is leading manufacturer: bending machine, press brake, shearing machine, punching machine, power press, Ironworkers, rolling machine and hydraulic press etc.

4.Official Website:

Email: info(at)

Tel:008613222111178

5.JUGAO machine video:/user/gaohua616

Product Description

cnc machine rolling hydraulic bending machine steel bending machine profile rolling machine hydraulic bender

cnc profile rolling machine hydraulic bender steel pipe rolling machine stainless steel rolling pipe bending machine

W24Y Hydraulic stainless steel pipes tubes and profile and section rolling bending machine

Features

Rolls are hardened & made from high quality steel

Drive shafts are hardened and ground with double taper roller bearing support

Machine can be set up in horizontal or vertical working position

Roving foot pedal control with emergency stop

Hydraulic lateral angle guide rolls

Three rollers are powered . European quality. Can be used in both vertical and horizontal position

Compared with other machines. Advantages of the machine.

Perfectly complete pre-bending,rolled-up.Working principle: two down rollers as main driving roller.Triple geared drive,low voltage driver,low current consumption and high efficiency.

The two touch steel stick can permit the good finishing quality of asymmetric plate section bending.NC syterm,advanced and compact structure with full function.

The machine has six oil tanks(two big oil tanks,four small oil tanks),and the head is vertically.The yield strength bended profile with 320Mpa (Max.)

Both Horizontal and Vertical Working Positions.Double pinch hydraulic forming rolls.Hardened precision threadedx shafts.Dual adjustable lateral guidesRolls are driven via 3 separate hydraulic motorLower rolls hydraulic moveable up and down.

Perfectly complete pre-bending,rolled-up,roll calibrate.Working principle: two down rollers as main driving roller,or all three rollers as main driving roller,with upper roller fixed and two down rollers do up-and-town movement around one fixed center.

Triple geared drive,low voltage driver,low current consumption and high efficiency.Well hydraulic control,displacement liquid-crystal display with accuracy+_0.1mm.

Advanced technology

The two touch steel stick can permit the good finishing quality of asymmetric plate section bending.Advanced and compact structure with full function.

The machine has six oil tanks(two big oil tanks,four small oil tanks),and the head is vertically.The yield strength bended profile with 250Mpa (Max.).Full function,complicated structure,high precision and very stronger.

Digital Display Profile Bending Machine- W24S Serial
Model&spec.		W24S-6	W24S-16	W24S-30	W24S-45	W24S-75	W24S-100	W24S-140
Max bending modulus of section (cm3)		6	16	30	45	75	100	140
Bending speed(m/min)		5.5	5.5	5.5	5.5	5	5	5
yield limit of material (MPa)		245	245	245	245	245	245	245
inward bending of angle steel	The max cross section (mm)	50×5	80×8	90×10	100×10	120×12	140×16	150×16
	The min bending diameter (mm)	800	1000	1200	1500	2000	2500	2400
	The min cross section (mm)	20×3	30×3	35×3	36×5	38×4	40×5	50×5
	The min bending diameter (mm)	400	550	560	600	600	720	1000
outward bending of angle steel	The max cross section (mm)	50×5	80×8	90×10	100×10	120×12	140×16	150×16
	The min bending diameter (mm)	800	1000	1100	1300	1600	1800	2200
	The min cross section (mm)	20×3	30×3	35×3	36×5	38×4	45×5	50×5
	The min bending diameter (mm)	400	550	500	600	700	760	400
outward bending of channel steel	channel steel model	8	12	16	20	25	28	30
outward bending of channel steel	The min bending diameter (mm)	600	800	800	1000	1100	1100	1200
inward bending of channel steel	channel steel model	8	12	16	20	25	28	30
inward bending of channel steel	The min bending radius (mm)	700	900	1000	1150	1600	1700	1700
plane bending of flat steel	The max cross section (mm)	100×18	150×25	180×25	200×30	220×40	250×40	280×50
plane bending of flat steel	The min bending diameter (mm)	600	700	800	900	1000	1200	1300
vertical bending of flat steel	The max cross section (mm)	50×12	75×16	90×20	100×25	110×40	120×40	150×40
vertical bending of flat steel	The min bending diameter (mm)	500	760	800	1000	1100	1300	1500
bending of round pipe	The max cross section (mm)	42×4	76×4.5	89×5	89×8	114×5	159×5	168×6
bending of round pipe	The min bending diameter (mm)	500	750	900	900	1200	2000	2000
bending of round bar	The max cross section (mm)	38	52	62	75	85	90	100
bending of round bar	The min bending diameter (mm)	450	600	600	800	100	1100	1200
bending of square pipe	The max cross section (mm)	45×3	60×4	70×4	80×6	90×8	100×10	125×10
bending of square pipe	The min bending diameter (mm)	750	900	1000	1200	1600	2000	2500

Packaging & Shipping

Our Services

1.Standardization of Service “212"

2: response in 2 hours

1: provide solution in 1 day

2: solve complaint in 2 days

2.Installation Service

Installation Services are available with all Accurl machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel )

3.Training Service

Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

4.Quality Guarantee

We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.

We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

Machine warranty is 3 year. We offer flexible extended warranties if needed.

FAQ

1. How about your machine quality?We are worry about the quality.

RE:JUGAO is a mature brand in CHINA,through our 20 years research in technology,our design including

structure and detailed sercurity and precision has enhanced greatly,and can match all the

CE standard or more strict standard.Our machines distribute worldwide to about 50countries

where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

2. Whether the machine price can be more discount

RE:1.JUGAO always provide high quality machine,oversea market is more important and difficult than domestic

market because of communicationtime costing after sales,So always,our machine has enough

qaulity standard to make surethe machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
