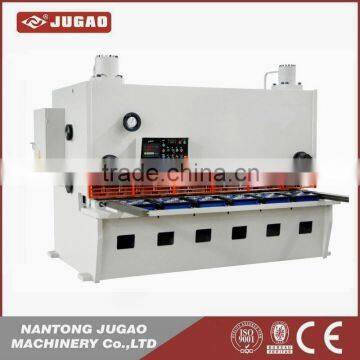

QC12K 6mm 10ft Hydraulic Steal Cutter with S NC Control sheet metal shearing machine
USD $4,000 - $7,000
/ Set
1 Set(Min.Order)
- 60 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
QC12Y 6mm 3200mm hydrolic cutter metal nc shearing machine from
-
QC12K 6*2500 swing beam hydraulic metal shear cutter , aluminum plate cutter
-
QC12K 6*2500 swing beam automatic shearing machine S
-
S control system QC12K 6*2500 cutting sheet metal hydraulic shearing machine price
-
2015 New Design cnc metal shearing machine 4mm,automatic cutter guillotine,bosch metal cutting machine
-
2015 New Design sheet metal shears machine,shearing machine specification,foot operated shear machines
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | JUGAO | Model Number | QC12K | |
| Voltage | 220V/380V | Rated Power | 7.5kw | |
| Dimension(L*W*H) | 3000*2000*1850 | Weight | 1000kgs | |
| Certification | CE | Warranty | 100% for one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
We can talk on line now. Please click me.
Company Information
| 1.Company Name: Nantong Jugao Machinery Co Ltd |
| 2.Machine Brand: JUGAO |
| 3.JUGAO is leading manufacturer: bending machine, press brake, shearing machine, punching machine, power press, Ironworkers, rolling machine and hydraulic press etc. |
4.Official website: Email: info(at) Tel;008613222111178 |
| 5.JUGAO machine video:/user/gaohua616 |
Product Description
cnc steel stainless plate sheet cut guillotine shearing machinery metal hydraulic shear metal shear machine qc11y/12y
| 1. Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping cylinders along full length of machine. |
| 2. Simplified blade gap adjustments to allow for a wide range of material types |
| 3. Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm. |
| 4.Totally European design,streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily. |
| 5.As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed. |
| 6.High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service. |
| 7.The machine by the European Union CE certification and ISO quality system certification |
| 8.Adopt integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box. |
| No | Model | Max cut thickness mm | Max cut length mm | Ram Stroke n/min | Cutting angle ° | Motor kw | Machine Szie mm |
| 1 | 4x2500 | 4 | 2500 | 20-40 | 0.5-1.5 | 5.5 | 3100x1600x1700 |
| 2 | 4x3200 | 4 | 3200 | 20-40 | 0.5-1.5 | 7.5 | 3800x1800x1700 |
| 3 | 6x2500 | 6 | 2500 | 16-35 | 0.5-1.5 | 7.5 | 3150x1650x1700 |
| 4 | 6x3200 | 6 | 3200 | 14-35 | 0.5-1.5 | 7.5 | 3860x1810x1750 |
| 5 | 6x4000 | 6 | 4000 | 10-30 | 0.51.5 | 7.5 | 4630x2030x1940 |
| 6 | 6x5000 | 6 | 5000 | 10-30 | 0.5-1.5 | 11 | 5660x2050x1950 |
| 7 | 6x6000 | 6 | 6000 | 8-25 | 0.5-1.5 | 11 | 6680x2200x2500 |
| 8 | 8x2500 | 8 | 2500 | 14-30 | 0.5-1.5 | 11 | 3170x1700x1700 |
| 9 | 8x3200 | 8 | 3200 | 12-30 | 0.5-1.5 | 11 | 3870x1810x1780 |
| 10 | 8x4000 | 8 | 4000 | 10-25 | 0.5-1.5 | 11 | 4680x1900x1860 |
| 11 | 8x5000 | 8 | 5000 | 10-25 | 0.5-1.5 | 15 | 5680x2250x2200 |
| 12 | 8x6000 | 8 | 6000 | 8-20 | 0.5-1.5 | 15 | 6800x2350x2700 |
| 13 | 10x2500 | 10 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
| 14 | 10x3200 | 10 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
| 15 | 10x4000 | 10 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
| 16 | 10x5000 | 10 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
| 17 | 10x6000 | 10 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
| 18 | 12x2500 | 12 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
| 19 | 12x3200 | 12 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
| 20 | 12x4000 | 12 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
| 21 | 12x5000 | 12 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
| 22 | 12x6000 | 12 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
|
|
|
Packaging & Shipping
Our Services
1.Standardization of Service “212" |
| 2: response in 2 hours |
| 1: provide solution in 1 day |
| 2: solve complaint in 2 days |
| 2.Installation Service |
| Installation Services are available with all Accurl machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel ) |
| 3.Training Service |
| Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines. |
| 4.Quality Guarantee |
| We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. |
| We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. |
| Machine warranty is 3 year. We offer flexible extended warranties if needed. |
FAQ
1. How about your machine quality?We are worry about the quality.
RE:JUGAO is a mature brand in CHINA,through our 20 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction. |
2. Whether the machine price can be more discount
RE:1.JUGAO always provide high quality machine,oversea market is more important and difficult than domestic market because of communicationtime costing after sales,So always,our machine has enough qaulity standard to make surethe machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients. |
