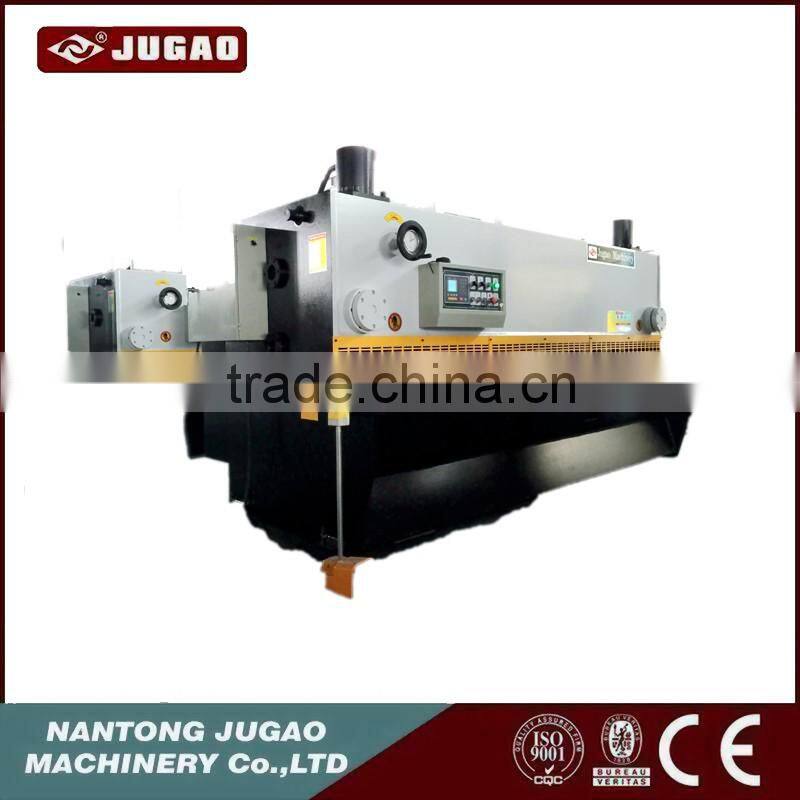

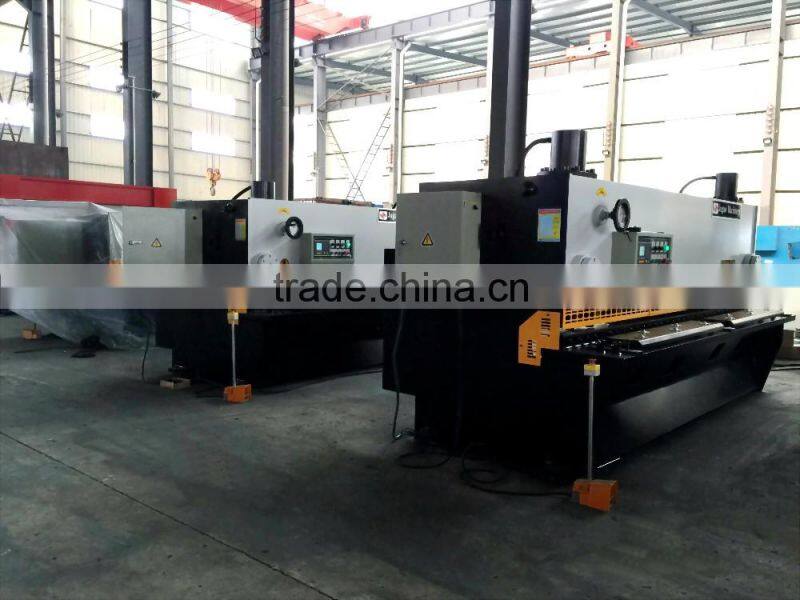

2015 New Design Cnc Hydraulic Aluminum Plate Cutting Machine,shearing Machine Sheet Metal,corte e Dobra

 We can talk on line now. Please click me.

 Metal hydraulic shear for metal shear for metal shear machine for metal sheet cutting machine

1. Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping  cylinders along full length of machine.

2. Simplified blade gap adjustments to allow for a wide range of material types

3. Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.

4.Totally European design,streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.

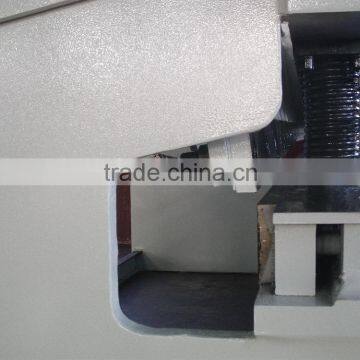

5.As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.

6.High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

7.The machine by the European Union c e certification and I S O  quality system certification

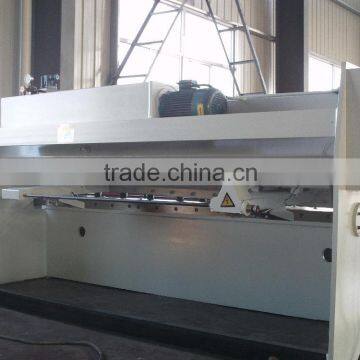

8.Adopt integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.

9.Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board.

10.All seals in cylinder is imported,the most famous brand,good quality and high performance

11.Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly

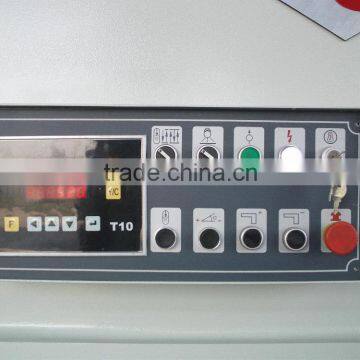

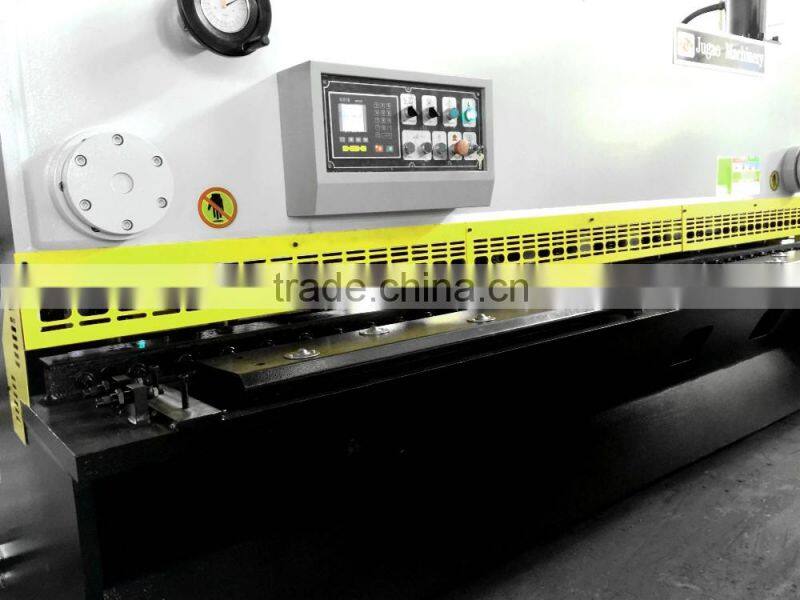

12.The cutting times of this machining tool is displayed on a Estun E10 NC and accurately show the cut after the block size and number display.

13.The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. The cut stroke and cut times also can be controlled.

14.Light alignment device eases drawing line for cutting, Standard front support sheet frame, A set of standard blades

15.System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.

16.Adopt handwheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting.

17.The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.

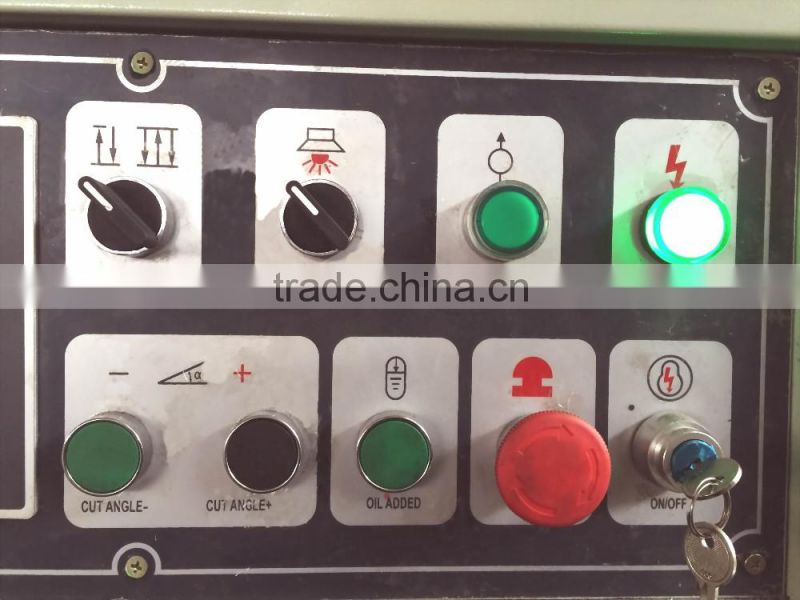

18. Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.

19.System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.

20.Optional:Holland Delem DAC350, DAC360, DAC310 or Estun E200 cnc controller automatically controls the backgauge, cutting stroke, cutting angle and the blades gap together the numbers of workpieces accurately.

21.European key electrics and Hydraulic Valves Advanced integral hydraulic system with good reliablity-Imported from Germany.

22.X axis back gauge clearance are controlled by E10s which ensures a higher cutting accuracy, Backgauge with Optional ball screw and line guide rail,, maximum stroke of backgauge can realize 1000mm.
