Home > Products > Bending machine > cnc hydraulic press brake machine Quality Choice

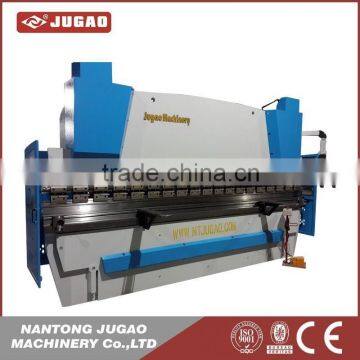

cnc hydraulic press brake machine Quality Choice
US$ 5000.00 - 5000.00
/ Set
1 Set(Min. Order)
- shanghai
- T/T
You May Like
-
cnc metal bending machinery
-
Pan brake NC sheet metal folding machine
-
NANTONG JUGAO_Best price with steady quality iron plank metal cutting shears
Quality Choice
-
iron planks electric metal shearing machine
-
KRRASS Back metal safe fence with CE standards 6mm stainless steel shearing machine aluminium sheet 3 metres cutting machine
-
Mechanical plate shearing guillotine machine JG11D type electric steel cutter
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | JUGAO | Model Number | WC67Y-160Ton/3200 | |
| Machine Type | Beading Machine | Raw Material | Other, Metal Sheet | |
| Material / Metal Processed | Other, Carbon and stainless steel | Power | Cnc | |
| Automation | Automatic | Extra Services | Other, 600 depth throat | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
We can talk on line now. Plese click me.
Company Information
| 1.Company Name: Nantong Jugao Machinery Co Ltd |
| 2.Machine Brand: JUGAO |
| 3.JUGAO is leading manufacturer: bending machine, press brake, shearing machine, punching machine, power press, Ironworkers, rolling machine and hydraulic press etc. |
4.Official website: Email: info(at) Tel:008613222111178 |
| 5.JUGAO machine video:/user/gaohua616 |
Product Description
cnc plate bender hydraulic steel plate bending machine steel sheet hydraulic bender machinery press brake with good price
| 1. Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder. Electronically controlled by ENC-18 Programmable digital controller assuring accurate repeatability.Parallelism is ensured by torsion bar that can be easily adjusted by clutch system. |
| 2. New style Digit type manual crowning conveniently mounted on the right side of the bed enabling operator to adjust simply by rotating the dial whilst the analogue digit system indicates the amount of movement |
| 3. Segmented heavy duty 86° offset top punch is segmented for return bend clearance and incorporates a safety key to stop punch dropping. |
| 4. Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment. |
| 5. Engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis. |
| 6. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany, |
Hydraulic system:
| -A complete electrolyte servo synchro CNC (Computer Numerical Control) controlled press brake. |
| -Adopt Bosch electrolyte servo system (from Germany) |
Mechanical system:
| - Two light rulers are installed at the two ends of the slide, making the slide movement be parallel to the working table |
| - Adopt the working table compensation structure. |
| - The CNC servo motor of the back gauge gives a high positioning accuracy. |
CNC system:
| - The DA65W computer imported from Holand Delem Co. |
| - Automatically calculate the working time and quantities of press brake actions. |
| - For single step operation, the user only needs to input the relevant data into the system, and then the system will check out the pressure needed for press brake and get every thing in order. |
| - When making several steps press brake actions on the parts, the user just needs to input the intended dimensions into the system, and then the system can make continuous press brake actions according to the requirements. |
| - Can store 25 press brake procedures. |
| - Give alarm signals on incorrect operations |
| - Automatically control the following datum: pressure discharge time, pressure keeping time, press brake pressure, press brake angle, the opening height of slide and etc. |
Synchro control system:
| -Two light rulers (Y1-Y2) have been installed at the two sides of the machine to measure the exact distances. |
| -The position data will be delivered to the CNC system and then it can check out the servo valve control signal (S2-S2). |
Transmission system:
| - High-precision ball screw and linear guide-way |
| - PANASONIC HINAS A4 series; AC servo motor and drive; |
Compensation System:
| -WILA deflection compensation; |
| -Automatic worktable compensation for wear and tear of the bed |
The deviation resistance ability of the machine tool:
| -The electrolyte servo system of this forging machine is an inner closing ring control system, which can check out the synchro discrepancies of the slide by the movement of the light ruler. |
| No | Model | Pressure KN | Bending Leng (mm) | Columns Distance (mm) | Open Height (mm) | Throat Depth (mm) | Slide Stroke (mm) | Motor Power (kw) | Machine Size (mm) |
| 1 | 40T/2500 | 400 | 2500 | 1900 | 210 | 200 | 110 | 4 | 2600x1270x1980 |
| 2 | 63T/2500 | 630 | 2500 | 1900 | 235 | 250 | 120 | 5.5 | 2600x1360x2050 |
| 3 | 63T/3200 | 630 | 3200 | 2600 | 235 | 250 | 120 | 5.5 | 3300x1360x2050 |
| 4 | 80T/2500 | 800 | 2500 | 1900 | 320 | 320 | 150 | 7.5 | 2600x1400x2380 |
| 5 | 80T/3200 | 800 | 3200 | 2600 | 320 | 320 | 150 | 7.5 | 3300x1400x2380 |
| 6 | 80T/4000 | 800 | 4000 | 3100 | 320 | 320 | 150 | 7.5 | 4100x1400x2380 |
| 7 | 100T/2500 | 1000 | 2500 | 1900 | 330 | 320 | 150 | 7.5 | 2600x1400x2380 |
| 8 | 100T/3200 | 1000 | 3200 | 2600 | 330 | 320 | 150 | 7.5 | 3300x1400x2380 |
| 9 | 100T/4000 | 1000 | 4000 | 3100 | 330 | 320 | 150 | 7.5 | 4100x1400x2380 |
| 10 | 100T/5000 | 1000 | 5000 | 4100 | 330 | 320 | 150 | 7.5 | 5100x1400x2380 |
| 11 | 125T/2500 | 1250 | 2500 | 1900 | 330 | 320 | 150 | 7.5 | 2600x1400x2380 |
| 12 | 125T/3200 | 1250 | 3200 | 2600 | 330 | 320 | 150 | 7.5 | 3300x1400x2380 |
| 13 | 125T/4000 | 1250 | 4000 | 3100 | 330 | 320 | 150 | 7.5 | 4100x1400x2380 |
| 14 | 125T/5000 | 1250 | 5000 | 4100 | 330 | 320 | 150 | 7.5 | 5100x1400x2380 |
| 15 | 160T/2500 | 1600 | 2500 | 1900 | 400 | 320 | 200 | 11 | 2600x1550x2580 |
| 16 | 160T/3200 | 1600 | 3200 | 2600 | 400 | 320 | 200 | 11 | 3300x1550x2580 |
| 17 | 160T/4000 | 1600 | 4000 | 3100 | 400 | 320 | 200 | 11 | 4100x1550x2580 |
| 18 | 160T/5000 | 1600 | 5000 | 4100 | 400 | 320 | 200 | 11 | 5100x1550x2580 |
| 19 | 160T/6000 | 1600 | 6000 | 4800 | 400 | 320 | 200 | 11 | 6100x1550x2580 |
| 20 | 200T/2500 | 2000 | 2500 | 1900 | 435 | 320 | 200 | 15 | 2600x1650x2900 |
| 21 | 200T/3200 | 2000 | 3200 | 2600 | 435 | 320 | 200 | 15 | 3300x1650x2900 |
| 22 | 200T/4000 | 2000 | 4000 | 3100 | 435 | 320 | 200 | 15 | 4100x1650x2900 |
| 23 | 200T/5000 | 2000 | 5000 | 4100 | 435 | 320 | 200 | 15 | 5100x1650x2900 |
| 24 | 200T/6000 | 2000 | 6000 | 4800 | 435 | 320 | 200 | 15 | 6100x1650x2900 |
| 25 | 250T/2500 | 2500 | 2500 | 1900 | 435 | 320 | 200 | 18.5 | 2600x1750x3070 |
| 26 | 250T/3200 | 2500 | 3200 | 2600 | 435 | 320 | 200 | 18.5 | 3300x1750x3070 |
|
|
|
|
|
|
|
Packaging & Shipping
Our Services
1.Standardization of Service “212" |
| 2: response in 2 hours |
| 1: provide solution in 1 day |
| 2: solve complaint in 2 days |
| 2.Installation Service |
| Installation Services are available with all Accurl machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel ) |
| 3.Training Service |
| Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines. |
| 4.Quality Guarantee |
| We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. |
| We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. |
| Machine warranty is 3 year. We offer flexible extended warranties if needed. |
FAQ
1. How about your machine quality?We are worry about the quality.
RE:JUGAO is a mature brand in CHINA,through our 20 years research in technology, our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50countries where there are metal plate industry , there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction. |
2. Whether the machine price can be more discount
RE:1.JUGAO always provide high quality machine,oversea market is more important and difficult than domestic market because of communicationtime costing after sales,So always,our machine has enough qaulity standard to make surethe machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients. |
