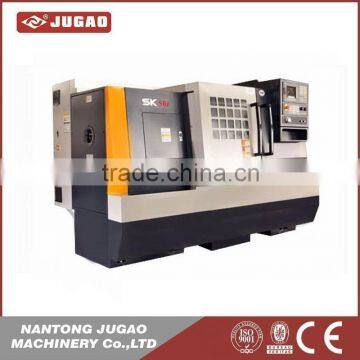

cnc lathe for steel stainless products making
- 60 Set / Sets per Month
- shanghai
- T/T
You May Like
-
CK615- simpleo peration automatic CNC lathe Price
-
Metal CNC lathe machine direct prices affordable
-
Large thickening high precision CNC lathe machine
-
X6325t - high precision high efficient wood CNC milling machine
-
X6325t - stable horizontal effective numerical control milling machine
-
X6325t - multi-function durable CNC milling machine
Product Details
Condition | New | Type | Horizontal | |
CNC or Not | Normal | Automatic Grade | Automatic | |
Max. Swing Diameter | 400MM | Place of Origin | Jiangsu, China | |
Brand Name | JUGAO | Model Number | JG | |
Voltage | 220V/380V | Power(W) | 5.5KW | |
Dimension(L*W*H) | 400CMX180CMX160CM | Weight | 3000KG | |
Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
We can talk on line now. Please click me.
metal lathe-machine lathe cnc machine lathe horizontal lathe machine heavy duty lathe machine turining lathe
cnc metal lathe-machine lathe cnc machine horizontal lathe machine heavy duty lathe machine turining lathe machinery
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Precision ground and supersonic frequency hardened bed ways
The spindle is supported with precision roller bearingsPrecision ground and supersonic frequency hardened bed ways.The spindle is supported with precision roller bearings.Headstock gears are made of high quality steel, ground and hardened.Spindle speed range 70-2000RPM.Sealed and easy operating feed box has various feeds and thread cutting functions.
Lathe Features
1- High rigidity spindle system, with absolute temperature rising no higher than 35°C.
2- The headstock, gear-box, apron and bed-ways are made of high quality cast iron, and are all cast with the resin sand foundry technology. The bed ways are induction-hardened, with hardness around HRC 55.
3- The spindle supported by 3-pointed high-precision bearings and all gears in headstock are precisely grinded, the spindle turns smoothly at high speed.
4- Rapid feed system to improve efficiency. Wide range of feed and pitch are available without changing gears.
5- When rapid feeding is on, the tool slide longitudinal travel handwheel will be automatically disfunctioned.
6- Reliable safety devices such as footbrake and emergency power-off switch are assembled. Adjustable overload protection device is also installed in the feed system.
7- The tool post adopts the structure of ratchet pawl, and can be relocked by turning the lever for just half a lap.
8- Tailstock are equipped with double-locked mechanism, smooth and effortless movement is ensured by the elastic scroll devices underneath.
9- With capacity of swing over bed 660mm, swing in gap 830mm, distance between centers 1000 – 5000mm, this lathe covers wide range of working pieces.
Specifications
Item | Unit | Parameter | |||||||
CS6140 | CS6150B | CS6166B | CQ6180B | CS6150C | CS6166C | CQ6180C | |||
Capacity | Max swing over bed | mm | φ400 | φ500 | φ660 | φ800 | φ500 | φ660 | φ800 |
Max swing over slide | mm | φ220 | φ300 | φ420 | φ560 | φ300 | φ420 | φ560 | |
Max workpiece length | mm | 750/1000/1500/2000/3000 | 750/1000/1500/2000/3000 | 2000/3000 | 1000/1500/2000/3000 | 2000/3000 | |||
Spindle | Spindle thru-hole | mm | φ52 | φ82 | φ82 | φ105 | |||
Spindle nose | CS6140:ISO 702/Ⅲ No.6 bayonet type; Others: ISO 702/Ⅱ No.8 cam-lock type | ||||||||
Spindle speed | r/min | 24 step 9-1600 | 24 step 8-1400 | 12 step 36-1600 | 12 step 30-1400 | ||||
Spindle motor | kW | 7.5 | |||||||
Tailstock | Quill dia./travel | mm | φ75/150 | φ90/150 | φ75/150 | φ90/150 | |||
Taper of center | MT | 5 | |||||||
Turret | Number of station/ Tool section | 4/25X25 | |||||||
Feed | Max X-axis travel | mm | 145 | ||||||
Max Z-axis travel | m/min | 320 | 310 | 320 | |||||
X-axis feed | mm/r | 93 sorts 0.028-6.43 | 65 sorts 0.063-2.52 | ||||||
Z-axis feed | mm/r | 93 sorts 0.012-2.73 | 65 sorts 0.027-1.07 | ||||||
Metric thread | mm | 48 sorts 0.5-224 | 22 sorts 1-14 | ||||||
Inch thread | t.p.i | 48 sorts 72-1/4 | 25 sorts 28-2 | ||||||
Module thread | πmm | 42 sorts 0.5-112 | 18 sorts 0.5-7 | ||||||
DP thread | t.p.i.π | 42 sorts 56-1/4 | 24 sorts 56-4 |
|
|
|
|
|
|
|
