Home > Products > Cutting Machine > QC11K-8X3200cnc hydraulic shearing machine

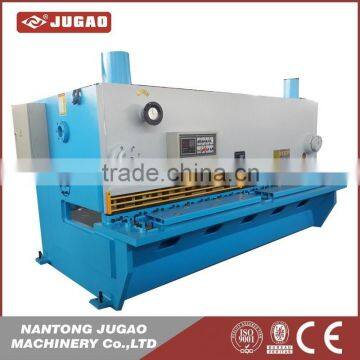

QC11K-8X3200cnc hydraulic shearing machine
US$ 6000.00 - 6000.00
/ Set
1 Set(Min. Order)
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | JUGAO | Model Number | QC11Y | |
| Voltage | By customer's demanding | Rated Power | 5.5kw | |
| Dimension(L*W*H) | 5000mm*2000mm*1600mm | Weight | 3000kg | |
| Certification | CE | Warranty | 100% for one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
We can talk on line now. Please click me.
Company Information
| 1.Company Name: Nantong Jugao Machinery Co Ltd |
| 2.Machine Brand: JUGAO |
| 3.JUGAO is leading manufacturer: bending machine, press brake, shearing machine, punching machine, power press, Ironworkers, rolling machine and hydraulic press etc. |
4.Official website: Company Email: info(at) Tel:008613222111178 |
| 5.JUGAO machine video:/user/gaohua616 |
Product Description
cnc steel stainless plate sheet cut guillotine shearing machinery metal hydraulic shear metal shear machine qc11y/12y
| 1. Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping cylinders along full length of machine. |
| 2. Simplified blade gap adjustments to allow for a wide range of material types |
| 3. Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm. |
| 4.Totally European design,streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily. |
| 5.As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed. |
| 6.High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service. |
| 7.The machine by the European Union CE certification and ISO quality system certification |
| 8.Adopt integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box. |
| 9.Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board. |
| 10.All seals in cylinder is imported,the most famous brand,good quality and high performance |
| 11.Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly |
| 12.The cutting times of this machining tool is displayed on a Estun E10 NC and accurately show the cut after the block size and number display. |
| 13.The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. The cut stroke and cut times also can be controlled. |
| 14.Light alignment device eases drawing line for cutting, Standard front support sheet frame, A set of standard blades |
| 15.System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise. |
16.Adopt handwheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting. |
| 17.The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality. |
| 18. Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal. |
| 19.System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise. |
| 20.Optional:Holland Delem DAC350, DAC360, DAC310 or Estun E200 cnc controller automatically controls the backgauge, cutting stroke, cutting angle and the blades gap together the numbers of workpieces accurately. |
| 21.European key electrics and Hydraulic Valves Advanced integral hydraulic system with good reliablity-Imported from Germany. |
22.X axis back gauge clearance are controlled by E10s which ensures a higher cutting accuracy, Backgauge with Optional ball screw and line guide rail,, maximum stroke of backgauge can realize 1000mm. |
| No | Model | Max cut thickness mm | Max cut length mm | Ram Stroke n/min | Cutting angle ° | Motor kw | Machine Szie mm |
| 1 | 4x2500 | 4 | 2500 | 20-40 | 0.5-1.5 | 5.5 | 3100x1600x1700 |
| 2 | 4x3200 | 4 | 3200 | 20-40 | 0.5-1.5 | 7.5 | 3800x1800x1700 |
| 3 | 6x2500 | 6 | 2500 | 16-35 | 0.5-1.5 | 7.5 | 3150x1650x1700 |
| 4 | 6x3200 | 6 | 3200 | 14-35 | 0.5-1.5 | 7.5 | 3860x1810x1750 |
| 5 | 6x4000 | 6 | 4000 | 10-30 | 0.51.5 | 7.5 | 4630x2030x1940 |
| 6 | 6x5000 | 6 | 5000 | 10-30 | 0.5-1.5 | 11 | 5660x2050x1950 |
| 7 | 6x6000 | 6 | 6000 | 8-25 | 0.5-1.5 | 11 | 6680x2200x2500 |
| 8 | 8x2500 | 8 | 2500 | 14-30 | 0.5-1.5 | 11 | 3170x1700x1700 |
| 9 | 8x3200 | 8 | 3200 | 12-30 | 0.5-1.5 | 11 | 3870x1810x1780 |
| 10 | 8x4000 | 8 | 4000 | 10-25 | 0.5-1.5 | 11 | 4680x1900x1860 |
| 11 | 8x5000 | 8 | 5000 | 10-25 | 0.5-1.5 | 15 | 5680x2250x2200 |
| 12 | 8x6000 | 8 | 6000 | 8-20 | 0.5-1.5 | 15 | 6800x2350x2700 |
| 13 | 10x2500 | 10 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
| 14 | 10x3200 | 10 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
| 15 | 10x4000 | 10 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
| 16 | 10x5000 | 10 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
| 17 | 10x6000 | 10 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
| 18 | 12x2500 | 12 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
| 19 | 12x3200 | 12 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
| 20 | 12x4000 | 12 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
| 21 | 12x5000 | 12 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
| 22 | 12x6000 | 12 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
|
|
|
|
|
|
|
Packaging & Shipping
Our Services
1.Standardization of Service “212" |
| 2: response in 2 hours |
| 1: provide solution in 1 day |
| 2: solve complaint in 2 days |
| 2.Installation Service |
| Installation Services are available with all Accurl machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel ) |
| 3.Training Service |
| Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines. |
| 4.Quality Guarantee |
| We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. |
| We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. |
| Machine warranty is 3 year. We offer flexible extended warranties if needed. |
FAQ
1. How about your machine quality?We are worry about the quality.
RE:JUGAO is a mature brand in CHINA,through our 20 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard. Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines. And where there are our machines,there are good reputation and terminal user satisfaction. |
2. Whether the machine price can be more discount
RE:1.JUGAO always provide high quality machine,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warrantyperiod.In this way,we will save a lot and think in advance for the clients. |
