Best Digital Storage Oscilloscopes UNI-T UTD5082C
US$ 2,742.9 - 2,880
/ Piece
1 Piece(Min. Order)
- shanghai ningbo
You May Like
-
Best Digital Storage Oscilloscopes UNI-T UTD5102C
-
Best Function Arbitrary Waveform Generators UTG2025A
-
Best Function Arbitrary Waveform Generators UTG2062A
-
Best Ultra Phosphor Oscilloscope UNI-T UPO2012CS
-
Best Ultra Phosphor Oscilloscope UNI-T UPO2162CS
-
Best Ultra Phosphor Oscilloscope UNI-T UPO2202CS
Product Details
| Place of Origin | Guangdong, China | Brand Name | UNI-T | |
| Model Number | UTD5082C |
Product Description
--------------------

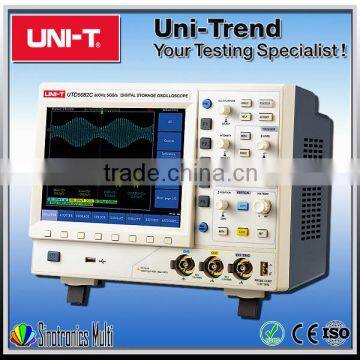

Product image
Product Description
1,30,000 wfms/s Waveform Acquisition Rate;
2,128Mpts Memory Depth;
3,800×600,8.4 inches LCD displays;
4,Special Print Scree Feature;
5,Edge, Video, Pulse and Alternate trigger functions;
6,24 automatic +2 advanced measurements;
7,Unique waveform recording and replay function;
8,Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
9,6 digital Trigger frequency counter.
Product parameters
| Specification | UTD5082C |
| Channels | 2 |
| Bandwidth | 800MHz |
| Sample Rate | 5GS/s |
| Rise Time | ≤438ps |
| Memory Depth | 128Mpts |
| Waveform Acquisition Rate | ≥30,000wfms/s |
| Vertical Sensitivity | 2mV/div~5V/div |
| Timebase Range | 500ps/div, 1ns/div ~ 40s/div |
| Storage | Setup, Wave, Bitmap, CSV |
| Trigger Modes | Edge, Pluse, Video, Alternate |
| Interface | USB Device, USB Host |
| General Characteristic | |
| Power | 100-240VAC, 45-440Hz |
| Display | 8.4 Inches 64K Color TFT LCD, 800×600 |
| Product Color | White and Gray |
| Product Net Weight | 3.7Kg |
| Product Size (W×H×D) | 330mm × 230mm × 200mm |
| Standard Accessories | 10:1 Probe×2, Power Cord , USB Cable,PC Software CD |
| Standard Individual Packing | Gift Box, English Manual |
| Standard Quantity Per Carton | 1 PC |
| Standard Carton Measurement (L×W×H) | 400mm×325mm×375mm |
| Standard Carton Cross Weight | 5.4 Kg |
| Optional Accessories* | |
| LAN Port | |
