Best Ultra Phosphor Oscilloscope UNI-T UPO2164CS

FOB Price

US$ 588 - 617 / Piece

2 Pieces(Min. Order)

Port shanghai ningbo

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	UNI-T
Model Number	UPO2164CS

Product Description

Product Overviews

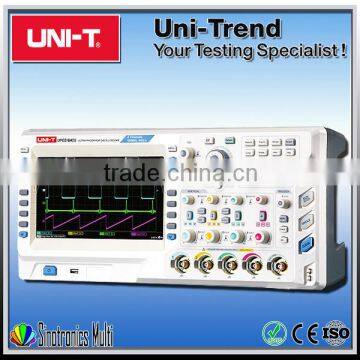

Product image

Product Description

1,Sample Rate up to 1GS/s;
2,Channels 2/4;
3,Bandwidth 100MHz,160MHz,200MHz;
4,Memory Depth 32Mpts(Standard);
5,Waveform Capture Rate up to 30,000wfms/s;
6,With 256 level intensity grading display;
7,Up to 65,000 frames for Waveform Record ,Replay;
8,Support serial bus trigger and decoding;
9,8 inches, TFT LCD,WVGA(800*480);
10,Interface:USB Host, USB Device, LAN, VGA, AUX OUT, 10MHz input/output.

Product parameters

Models	UPO2164CS
Bandwidth	160 MHz
Channels	4
Sample Rate	1GS/s
Max. Memory Depth	32Mpts
Waveform Capture Rate	30,000wfms/s
Time Base Scale	2 ns/div ~50 s/div
Input Coupling	(1MΩ± 1%)\|\|(13 pF± 3 pF)
Vertical Scale	1mV/div ~20 V/div(1 MΩ)
DC Gain Accuracy	±3%
Waveform Record	65,000 Frames
Trigger	Edge, Alternate, Runt, Super picture, Nth Edge, Delay, Duration, SetupHold, Pulse Width, Slope, Video, Pattern, RS232/UART,I2C,SPI, USB
Bus Decode	Standard:Parallel; Optional:RS232/UART,I2C,SPI, USB
Waveform Operation	A+B,A-B,A×B,A/B,FFT,Editable Advanced
Auto Measurement	Peak-Peak Value, Amplitude, Maximum, Minimum, Top Value, Bottom Value, Mean, Average, Root Mean Square Value, Overshoot, Preshoot, Frequency, Cycle, Rise Time, Fall Time, Positive Pulse, Negative Pulse, Positive Duty Ratio, Negative Duty Ratio, Delay 1->2, and Delay 2->1.
Number of Measurements	Display 5 measurements at the same time
Measurement Statistic	Average, Max, Min, Standard Deviation, Number of Measurements
Frequency Counter	Hardware 6 bits counter (Channels are selectable)
Standard Interface	USB-Host, USB-Device, LAN,10MHz Input/Output, AUX Output (TrigOut, Pass/Fail)
General Characteristic
Power	100V~240VACrms, 45Hz~440Hz
Display	8 inches, TFT LCD, WVGA(800×480)
Product Color	White and Gray
Product Net Weight	3.5 Kg ± 0.2 Kg
Product Size (W×H×D)	336mm × 163.8mm × 105mm
Standard Accessories	Probe×2/4(1×,10× switchable),Power Cord ,USB Cable, PC Software CD
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	2 PCs
Standard Carton Measurement (L×W×H)	550mm × 220mm × 325mm
Standard Carton Cross Weight	9.5 Kg

MOQ

We do not have MOQ, but we have MOV (Min order value) which is USD5000. If your order quantity is big enough, we will give you some discount.
