Best Function Generator UNI-T UTG9005C

FOB Price

US$ 86.3 - 101.9 / Piece

6 Pieces(Min. Order)

Port shanghai ningbo

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	UNI-T
Model Number	UTG9005C

Product Description

Product Overviews

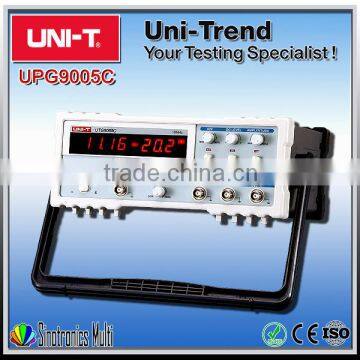

Product image

Product Description

UTG9000C series function generator can outputs sine, square,triangle, pulse, ramp, TTL single pulse etc. Its signal frequencyis up to 10MHz_ It can adjusts DC level, duty cycle. It displays the frequency with a 4-digits-LED meter, and displays the output amplitude with a 3-digits-LED meter. It also can be used as a 10MHz frequency counter.

Product parameters

Features	Range
Model	UTG90005C
Waveforms	Sine, Square, Triangle, Ramp, Pulse, TTL etc.
Amplitude
Range (no load)	from 1mVpp to 20Vpp
Accuracy	±5%
Resolultion	0.1mV
Frequency
Range	from 0.5Hz to 5MHz
Accuracy	±1%
Resolultion	1mHz
Output Power	2Wp-p
Output Impedance	50Ω
Attenuator	20dB + 40dB
DC Offset	from -10V to +10V
Display	Frequency: 4-digits-LED, Amplitude: 3-digits-LED
Duty Cycle	from 10% to 90%
Distortion of Sine	≤2% (at 1kHz)
Rise time of Square	≤35ns
VCF	≥100:1
Frequency Counter
Frequency Range	from 0.2Hz to 10MHz
Amplitude Range	from 0.5Vp-p to 5Vp-p
Input Impedance	10kΩ
General Characteristic
Power	AC 220V,50Hz
Product Color	White and Gray
Product Net Weight	2.5 Kg
Product Size	320mm×240mm×100mm
Standard Accessories	BNC to Alligator Clips,Power Cord
Standard Individual Packing	Gift Box,English Manual
Standard Quantity Per Carton	6 Pcs
Standard Carton Measurement	660mm×410mm×600mm
Standard Carton Cross Weight	18 Kg

MOQ

We do not have MOQ, but we have MOV (Min order value) which is USD5000. If your order quantity is big enough, we will give you some discount.
