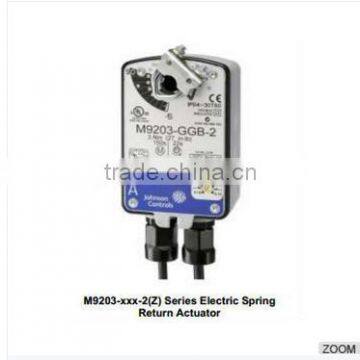

High-quality Best-price M9203-xxx-2(Z) Series Electric Spring Return Actuators

Specifications

Description

The M9203-xxx-2(Z) Series Electric Spring Return Actuators provide control of dampers in Heating, Ventilating, and Air Conditioning (HVAC) systems. All actuators in this series provide 27 lb·in (3 N·m) rated torque.A mechanical spring return system provides rated torque with and without power applied to the actuator. The series includes the following control options:
• On/Off, 24 V, 85 to 264 VAC power• On/Off and Floating Point, 24 V power
• Proportional, 24 V power, for 0(2) to 10 VDC or 0(4) to 20 mA Control Signal
These actuators are configured for direct mounting and do not require a damper linkage. Actuators can be mounted directly to a damper shaft from 1/4 to 1/2 in.(6 to 12 mm) diameter with a universal clamp. An accessory crankarm and remote mounting kit are available for applications where the actuator cannot be direct-coupled to the damper shaft. An optional line voltage auxiliary switch indicates an end-stop position or performs switching functions within the selected rotation range.Refer to the M9203-xxx-2(Z) Series Electric Spring Return Actuators Product Bulletin(LIT-12011674) for important product application information.

Features

• 27 lb·in. (3 N·m) rated torque

• direct-coupled design

• reversible mounting

• electronic stall detection

• double-insulated construction

• microprocessor-controlled brushless DC motor (-AGx and -GGx types)

• external mode selection switch (-AGx and -GGx types)

• integral cables with colored and numbered  conductors

• integral 1/2 in. (13 mm) threaded conduit connectors

• optional integrated auxiliary switch

• plenum rated models

• override control (proportional models only)

• Underwriters Laboratories Inc.® (UL), CE, and C-Tick compliance

• manufactured under International Standards Organization (ISO) 9001 quality control standards

• 5-year warranty
