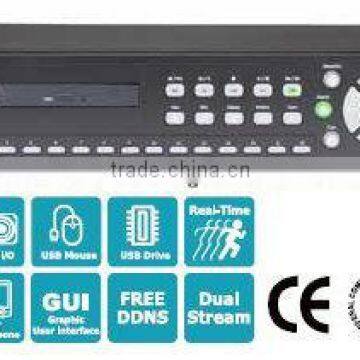

4,9 or 16 Channels Network H.264 Digital Video Recorder

Specifications

Features

• H.264 Compression format for efficient disk utilization and network bandwidth conservation

• Real-time recording rate and playback rate for all cameras

• Normal and event recording frame rate can be set independently for each camera

• Multiple Main Monitors: VGA (800x600, 1280X1024)/ BNC Main monitor outputs

• Call monitor: additional composite BNC output with multiplex and/or sequenced views

• Simultaneous recording at D1 or 2CIF with realtime streaming at CIF for remote web viewing to conserve bandwidth

• Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)

• Free EverFocus DDNS Service - static IP address is not required for reliable remote access

• User friendly GUI with graphical icons and visual indicators

• Supports eSATA Supports 3GPP for mobile monitoring

• Multiple Control Inputs: mouse / front panel / remote controller / EKB500 keyboard

• Built-in record time calculator for fast recording estimation

• Express Setup: A unique menu option for quick & easy installation

• Express Archive: Archive video instantly (to USB) while playing back

• Express Playback: Simply point, click and drag the playback bar to view desired recordings

• Express Search: Use the intuitive playback bar with simple drag & drop operations

• Smart Search: Directly catch the movement in the specified area

• Snapshot search: Show snapshots of the specified interval, help quickly find the interested scene

• Remote configuration support from the built-in web interface

• Gigabit Ethernet interface for remote network viewing and control

• On-screen PTZ control via mouse or front panel

• Support for up to 1 Hot Swappable HDD or 2 fixed internal HDD

• Built-in DVD burner (Optional)

• 2 USB 2.0 ports (1 located on front panel, 1 located on back panel) for video archive and mouse usage

• Multi-language support

• Watermark capabilities to identify intentional modifications to exported data

• 19” Rack mountable

• USB Mouse and IR remote control included
