Product Details
| Place of Origin | Shandong, China | Brand Name | HenryD | |
| Model Number | 300w-30kw |
Product Description
Wind turbine charge controller with dump load, wind generator charge controller, wind power off grid system charge controller

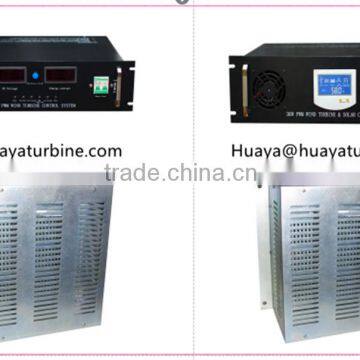

1. Normal controller for wind turbine, low cost
wind turbine auto-controller is special matched equipment with wind turbine. It commutates the AC that generated by wind turbine to DC and then charges to storage battery groups.
Auto-controller with a beautiful appearance, simplify indication, easy operation, has an auto-protection function in case of battery converse connection; auto-shunt in case of heavy wind (unload). The wind turbine shut down automatically when the battery group voltage get to 125%; and startup automatically when the voltage drop to 108%. The key component adopts the high-efficient chip control, the complete machines is intelligent. This system is running safely, steadily, and reliably, working efficiently and have a long work life, which is proved by a large number of experiments.
Wind power (W) | 300 | 300 | 500 | 500 | 500 | 1000 |
Solar panel power (Wp) | 50 | 100 | 100 | 100 | 100 | 150 |
Matching battery groups(V) | 12 | 24 | 12 | 24 | 48 | 48 |
Working method | Continuous | |||||
Function | Charge | |||||
Working Environment | Temperature: -10-40℃ Humidity ≤80% | |||||
Wind Turbine unload voltage (V) | 15±1 | 30±1 | 30±1 | 30±1 | 60±1 | 60±1 |
Wind Turbine Stop voltage (V) | 15±1 | 30±1 | 30±1 | 30±1 | 60±1 | 60±1 |
Wind Turbine restore charge voltage (V) | 13±1 | 26±1 | 26±1 | 26±1 | 54±1 | 54±1 |
Wire provide for oneself (mm²) | >6 | >4 | >10 | >4 | >4 | >4 |
Charge insurance (A) | 30 | 25 | 63 | 30 | 30 | 30 |
Wind power (W) | 2000 | 2000 | 3000 | 3000 | 5000 |
Solar panel power (Wp) | 100 | 500 | 150 | 200 | 200 |
Matching battery groups(V) | 24 | 48 | 48 | 120 | 240 |
Working method | Continuous | ||||
Function | Charge | ||||
Working Environment | Temperature: -10-40℃ Humidity ≤80% | ||||
Wind Turbine unload voltage (V) | 30±1 | 60±1 | 60±1 | 150±2 | 300±2 |
Wind Turbine Stop voltage (V) | 30±1 | 60±1 | 60±1 | 150±2 | 300±2 |
Wind Turbine restore charge voltage (V) | 26±1 | 54±1 | 54±1 | 135±2 | 270±2 |
Wire provide for oneself (mm²) | >16 | >10 | >16 | >4 | >4 |
Charge insurance (A) | 100 | 63 | 100 | 32 | 32 |
2. PWM charge controller with dump load spec
PWM Controller Characteristics
The product is manufactured according the JB/T6939.1-2004 industrial standard and GB/T 19115.1-2003 national standard also with users’ technical requirements.
- The big screen LCD display. Clearly present the working status of the wind turbine, solar panel, battery and controller.(Wind turbine voltage, current, power display ;solar voltage, current, power display, battery charging current, voltage, charging power, power display.)
- Two sets of control systems:PWM constant voltage system and three-phase dump load system.
- PWM constant voltage control is 120% of the rated power of the wind turbine . In case exceeding of PWM’s capacity, the three-phase dump load will automatically start immediately to ensure safe running of the overall wind turbine system.
- Under the circumstances of disconnecting or damage of the battery, the three-phase dump load will start automatically to avoid the idling for wind turbine and the occurrence of runaway accident.
- Under the strong or super-strong wind conditions PWM control to ensure battery charged by the wind turbine with constant voltage and current.
- The protection function of reverse connection, disconnection and damage-resisting of the battery will be applied.
- Over-charging protection of the battery: When the battery is full (the battery voltage getting 125% of the rated voltage), the controller will carry out three-phase dump load automatically to stop charging the battery.
- Auto recharging of battery: When the battery voltage reduces to 108% of the rated voltage,it stops three-phase dump load to recharge battery automatically.
- For the different wind turbine type, the controller can be equipped with mechanical yawing, furled empennage, mechanical or hydraulic, pneumatic, electric magnetic and other brake functions.
- The inside of the controller is equipped with surge arrester. Contain the over voltage into the wind turbine under the bearable voltage of the equipment or system. On the other way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment.
- Ammeter and voltmeter indication: Indicate the charging current and voltage of the battery.
- The controller is equipped with manual three-phase dump load switch. To using this switch, the wind turbine will carry out three-phase dump load forcibly.
- Optional communication Mode:RS232,RS485,GPRS,USB,RJ45 ect, Can monitor multiple devices running.
Type | 500W-24Vdc | 500W-48Vdc | 500W-12Vdc |
Wind turbine rated power | 500W | 500W | 500W |
Wind turbine max. power | 1KW | 1KW | 1KW |
Solar panel | 200Wp | 200Wp | 200Wp |
Battery | 24Vdc | 48Vdc | 12Vdc |
Function | Rectifier,charge, control | ||
Display mode | LCD | ||
Display content | Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current | ||
PWM constant pressure voltage | >28Vdc | >56Vdc | >14Vdc |
3-phase load voltage of the wind turbine | 29±1Vdc | 58±1Vdc | 15±1Vdc |
wind turbine Recovery charging voltage | 27±1Vdc | 54±1Vdc | 13.5±1Vdc |
Solar stop charge voltage | 29±1Vdc | 58±1Vdc | 15±1Vdc |
Solar pane Recovery charging voltage | <28Vdc | <56Vdc | <14Vdc |
Low-voltage of the battery | 20±1Vdc | 40±1Vdc | 10±1Vdc |
Self-provided connecting wire of the battery | >20mm² | >10mm² | >10mm² |
PWM fuse | 100A | 40A | 50A |
Solar fuse | 16A | 10A | 25A |
Charging fuse | 125A | 63A | 80A |
Work environment temperature | -30-60°C | ||
Relative humidity | <90% No condensation | ||
Noise (1m) | <40dB | ||
Degree of protection | IP20(Indoor) | ||
Cooling method | Forced air cooling | ||
*Communication interface (optional) | RS485/USB/GPRS/Ethernet | ||
*Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C | ||
Size of the controller (mm) | 480*360*23 | 480*360*230 | 480*360*230 |
Weight of the controller | 12Kg | 10Kg | 12 Kg |
Size of the load (mm) | 395*300*125 | 395*300*125 | 395*300*125 |
Weight of the load | 5.5Kg | 5.5 Kg | 5.5Kg |
1kw PWM controller spec:
Type | 1KW-24Vdc | 1KW-48Vdc | 1KW12V |
Wind turbine rated power | 1KW | 1KW | 1KW |
Wind turbine max. power | 2KW | 2KW | 2KW |
Solar panel | 300Wp | 300Wp | 300Wp |
Battery | 24Vdc | 48Vdc | 12Vdc |
Function | Rectifier,charge, control | ||
Display mode | LCD | ||
Display content | Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current | ||
PWM constant pressure voltage | >28Vdc | >56Vdc | >14Vdc |
3-phase load voltage of the wind turbine | 29±1Vdc | 58±1Vdc | 15±1Vdc |
Recovery charging voltage of the wind turbine | 27±1Vdc | 54±1Vdc | 13.5±1Vdc |
Solar stop charge voltage | 29±1Vdc | 58±1Vdc | 15±1Vdc |
Solar recovery charging voltage | <28Vdc | <56Vdc | <14Vdc |
Low-voltage of the battery | 20±1Vdc | 40±1Vdc | 10±1Vdc |
Self-provided connecting wire of the battery | >8mm² | >6mm² | >16 mm² |
PWM fuse | 63A | 25A | 100A |
Solar fuse | 16A | 10A | 40A |
Charging fuse | 63A | 32A | 125A |
Work environment temperature | -30-60°C | ||
Relative humidity | <90% No condensation | ||
Noise (1m) | <40dB | ||
Degree of protection | IP20(Indoor) | ||
Cooling method | Forced air cooling | ||
*Communication interface (optional) | RS485/USB/GPRS/Ethernet | ||
*Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C | ||
Size of the controller (mm) | 480*360*230 | 480*360*230 | 480*360*230 |
Weight of the controller | 12Kg | 11Kg | 12 Kg |
Size of the load (mm) | 395*300*125 | 395*300*125 | 395*300*125 |
Weight of the load | 5.5 Kg | 5 Kg | 5.5Kg |
2kw PWM controller normal spec:
Type | 2KW-24Vdc | 2KW-48Vdc | 2KW-96Vdc |
Wind turbine rated power | 2KW | 2KW | 2KW |
Wind turbine max. power | 4KW | 4KW | 4KW |
Solar panel | 600Wp | 600Wp | 600Wp |
Battery | 24Vdc | 48Vdc | 96Vdc |
Function | Rectifier,charge, control | ||
Display mode | LCD | ||
Display content | Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current | ||
PWM constant pressure voltage | >28Vdc | >56Vdc | >110Vdc |
3-phase load voltage of the wind turbine | 29±1Vdc | 58±1Vdc | 116±2Vdc |
Recovery charging voltage of the wind turbine | 27±1Vdc | 54±1Vdc | 108±2Vdc |
Solar stop charge voltage | 29±1Vdc | 58±1Vdc | 116±2Vdc |
Solar recovery charging voltage | <28Vdc | <56Vdc | <110Vdc |
Low-voltage of the battery | 20±1Vdc | 40±1Vdc | 80±2Vdc |
Self-provided connecting wire of the battery | >20mm² | >10mm² | >24mm² |
PWM fuse | 100A | 40A | 20A |
Solar fuse | 40A | 20A | 10A |
Charging fuse | 125A | 63A | 32A |
Work environment temperature | -30-60°C | ||
Relative humidity | <90% No condensation | ||
Noise (1m) | <40dB | ||
Degree of protection | IP20(Indoor) | ||
Cooling method | Forced air cooling | ||
*Communication interface (optional) | RS485/USB/GPRS/Ethernet | ||
*Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C | ||
Size of the controller (mm) | 480*360*23 | 480*360*230 | 480*360*230 |
Weight of the controller | 23 Kg | 16 Kg | 16 Kg |
Size of the load (mm) | 490*460*310 | 490*460*310 | 490*460*310 |
Weight of the load | 15.5 Kg | 15.5 Kg | 15.5Kg |
3kw PWM charge controller normal spec:
Type | 3KW-24Vdc | 3KW-48Vdc | 3KW-96Vdc |
Wind turbine rated power | 3KW | 3KW | 3KW |
Wind turbine max. power | 6KW | 6KW | 6KW |
Solar panel | 900W | 900W | 900W |
Battery | 24Vdc | 48Vdc | 96Vdc |
Function | Rectifier,charge, control | ||
Display mode | LCD | ||
Display content | Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current | ||
PWM constant pressure voltage | >28Vdc | >56Vdc | >110Vdc |
3-phase load voltage of the wind turbine | 29±1Vdc | 58±1Vdc | 116±2Vdc |
Recovery charging voltage of the wind turbine | 27±1Vdc | 54±1Vdc | 108±2Vdc |
Stop charge voltage of solar panel | 29±1Vdc | 58±1Vdc | 116±2Vdc |
Recovery charging voltage of solar panel | <28Vdc | <56Vdc | <110Vdc |
Low-voltage of the battery | 20±1Vdc | 40±1Vdc | 80±2Vdc |
Self-provided connecting wire of the battery | >30mm² | >12mm² | >6mm² |
PWM fuse | 125A | 80A | 32A |
Charging fuse | 160A | 100A | 50A |
Work environment temperature | -30-60°C | ||
Relative humidity | <90% No condensation | ||
Noise (1m) | <40dB | ||
Degree of protection | IP20(Indoor) | ||
Cooling method | Forced air cooling | ||
*Communication interface (optional) | RS485/USB/GPRS/Ethernet | ||
*Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C | ||
Size of the controller (mm) | 655*480*320 | 575*430*320 | 575*430*320 |
Weight of the controller | 27 Kg | 21Kg | 21Kg |
Size of the load (mm) | 495*460*320 | 495*460*320 | 495*460*320 |
Weight of the load | 16Kg | 16 Kg | 16 Kg |
5kw PWM controller normal spec:
Type | 5KW-48Vdc | 5KW-120Vdc | 5KW-240Vdc |
Wind turbine rated power | 5KW | 5KW | 5KW |
Wind turbine max. power | 10KW | 10KW | 10KW |
Solar panel power | 1.5KW | 1.5KW | 1.5KW |
Battery | 48Vdc | 120Vdc | 240Vdc |
Function | Rectifier,charge, control | ||
Display mode | LCD | ||
Display content | Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current | ||
PWM constant pressure voltage | >56Vdc | >135Vdc | >280 Vdc |
3-phase load voltage of the wind turbine | 58±1Vdc | 145±2Vdc | 290±5Vdc |
Wind turbine recovery charging voltage | 54±1Vdc | 135±2Vdc | 280±5Vdc |
Solar controller stop charging voltage | 58±1Vdc | 145±2Vdc | 290±5Vdc |
Solar restore charge voltage | 54±1Vdc | 135±2Vdc | 280±5Vdc |
Low-voltage of the battery | 40±1Vdc | 100±2Vdc | 200±5Vdc |
Self-provided connecting wire of the battery | >20mm² | >10mm² | >6mm² |
PWM fuse | 125A | 63A | 40A |
Solar fuse | 32A | 16A | 10A |
Charging fuse | 160A | 63A | 50A |
Work environment temperature | -30-60°C | ||
Relative humidity | <90% No condensation | ||
Noise (1m) | <40dB | ||
Degree of protection | IP20(Indoor) | ||
Cooling method | Forced air cooling | ||
*Communication interface (optional) | RS485/USB/GPRS/Ethernet | ||
*Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C | ||
Size of the controller | 500*440*290 mm | ||
Weight of the controller | 21 Kg | ||
Size of the load | 660*510*450 mm | ||
Weight of the load | 31 Kg | ||
10kw PWM Controller normal spec:
Type | 13KW-120Vdc |
Wind turbine rated power | 10KW |
Wind turbine max. power | 20KW |
Solar panel power | 3KW |
Battery | 120Vdc |
Function | Rectifier,charge, control |
Display mode | LCD |
Display content | Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current |
PWM constant pressure voltage | >138Vdc |
3-phase load voltage of the wind turbine | 145±2Vdc |
Recovery charging voltage of the wind turbine | 135±2Vdc |
Solar controller stop charging voltage | 145±2Vdc |
Solar restore charge voltage | 135±2Vdc |
Low-voltage of the battery | 100±2Vdc |
Self-provided connecting wire of the battery | >12mm² |
PWM fuse | 80A |
Solar fuse | 25A |
Charging fuse | 125A |
Work environment temperature | -30-60°C |
Relative humidity | <90% No condensation |
Noise (1m) | <40dB |
Degree of protection | IP20(Indoor) |
Cooling method | Forced air cooling |
*Communication interface (optional) | RS485/USB/GPRS/Ethernet |
*Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C |
Size of the controller | 550*400*230 mm |
Weight of the controller | 21Kg |
Size of the load | 760*510*430 mm |
Weight of the load | 34 Kg |
3. 20kw 30kw PWM controller normal spec, pls contact with us.
We provide customized service. We need wind turbine normal data: rated power/max power/rated working voltage/battery stop charging voltage/battery restart voltage...
300w-10kw controller with dump is packed with carton. Normally delivery by express/by sea or by air.
PLC controller
Contact Us
- Qingdao HenryD Wind Power Equipment Co., Ltd.
- Contact nameAron wang Chat Now
- Phone86-532-82903820
- AddressNo.803 Jin Shui Road, Qingdao, Shandong
Product Categories
| Battery, inverter, controller,tower | Fixed pitch wind turbine | New Products |
New Products
-
TOWER! Supporting Pole for Wind Turbine, Hydraulic Tower/free Standing Tower for Wind Generator Quality Choice
-
6m-18m Guy Wire Tower for Wind Turbine, Low Price Guy Mast for Wind Generator 300w-10kw, Roof Top Tower for Wind Turbine
-
HENRYD! Wind Turbine Tower With Guy Wire Tower,stand Alone Tower,tilting up Tower,hydraulic Tower
-
PROMO! Residential Rooftop 1kw Small Wind Turbine/Wind Generator, Windmill Generator 1kw Wind Power Generator, Aerogenerator
-
Horizontal Blades for Wind Turbine 300w-30kw Wind Power Generator Blades 2.2m-14m, Windmill Blades
-
FRB Blades for Wind Generator, Vertical Axis Wind Turbine Blades, Horizontal Wind Turbine Blades
-
HENRYD! IEC/CE Approved Horizontal 2000w Wind Turbine Generator 24V 48V Off Grid System, Easy Installation, Low Rpm 350rpm
-
HAWT! Horizontal Type 5KW Wind Turbine-generators, Wind Electric Generator 5kw @ 10m/s, 6m Blades Rotor Diameter PMA
-
Fixed Pitch Yawing Type 20kw Wind Power Generator/wind Generator for Home With Permanent Magnet Alternator
-
Low Noise Level, Best Performance 1.5kw Small Wind Turbine Generator With Mini Wind Power Generator for Home Use
-
POP ! 2kw Wind Generator Hybrid Wind Solar System for Home Use off Grid System , 2kw Wind Power Generator
-
POPULAR! 1kw Wind Turbine Generator 24v for Home Use, Wind Electric Generator 1kw Free Power Generator Low Rpm Pmg
-
SALES! 20KW Wind Turbine Generator, Low Rpm Permanent Magnet Generator 20kw, Wind Electric Generator 20k
-
FACTORY! 380v 20KW Wind Turbine Price for Home Farm, Free Energy Generator, Wind Power Generator
-
HENRYD! Low Price, Low Noise Horizontal Axis 20kw Wind Generation With Permanent Magnet Generator for on Grid Wind Power System
-
HOT SALES! 2kw Home Wind Turbine, Wind Electric Generator 2kw for Wind Solar Hybrid System 3kw 4kw 5kw
-
Wind Turbine FRB Blades, Wind Turbine Aluminum Blades, Wind Turbine Carbon Blades for 10w-60kw Wind Turbine Generator Quality Choice
-
Wind Turbine Generator Blades, Wind Power Generator Blades FRB/Carbon Fiber
-
5KW! Windkraftanlage 5KW Wind Power Permanent Magnet Generator
-
1500W! Micro Wind Turbine 1.5kw Aerogenerator, Turbine Eoliche/vindur Hverfla/Turbiny Wiatrowe/Wind Kraftanlagen
-
Low Noise, Low Rpm, Commercial FD14-30kw Wind Turbine With Permanent Magnet Generator, Wind Electric Generator
-
HOME WIND POWER! 3kw 5kw Wind Turbine Generator for Home Use, Free Energy Generator, Aerogenerator 3kw 5kw
-
5kw Windmill Generator, Wind Energy Generator 5kw for Home Use, 5kw Household Wind Power Generator 3 Phase Low Rpm
-
Low Noise, High Efficiency Horizontal Wind Turbine Generator FRB Blades for HAWT / VAWT,
Popular Searches
- power transformer
- distribution service
- current transformer
- high frequency transformer
- electrical transformer
- energy saver device
- step up converter
- ac drive converter
- frequency drive converter
- lightning conductor
- copper lightning rod
- electronic transformer
- toroidal transformer
- auto transformer
- current transformer inductor
- voltage transformer
- control transformer
- power supply transformer
- led lighting transformer
- waterproof transformer
- electric transformer
- low frequency transformer
- flyback transformer
- core transformer
- output inductor
- power distribution equipment
- power distribution transformer
- transformer substation equipment
- oil immersed transformer
- filter reactor
Recommended Products
- ABB 086387-001
- Allen Bradley MOX720-P4668D?80026-518-01
- Siemens 6SE6440-2UD21-5AA1
- Siemens 6SE6400-1PB00-0AA0
- Emerson 1C31205G01?
- Emerson 1P00028G01?
- Emerson 5X00502G01?
- Pepperl+Fuchs HIC2025
- Bently Nevada 190501-09-99-00
- Bently Nevada 330930-045-01-00
- Bently Nevada 330104-00-06-10-01-00
- Bently Nevada 330104-00-12-10-01-00
Find Similar Products By Category
- Electrical & Electronics > Power Transmission & Transformer > Transformer
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now-
Aron wang
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
