Product Details
| Place of Origin | China | Brand Name | HLD | |
| Model Number | 20kw | Type | Wind Power Generator |
Product Description
FACTORY! 380v 20KW wind turbine price for home farm, free energy generator, wind power generator
FD12-20kw KW WIND TURBINE MAIN BODY: US$7900.00/set.
( Including 3 pcs blades, nose cone, hub, generator, manual brake system, nacelle, tail rod, tail vane.)
PWM controller with dump load, inverter, tower price will provided seperately.
User can take whole system from us, also can take any part of the system from us.
1. 20kw Wind turbine model selection
Horizontal axis, directly drive, fixed pitch, auto furling wind turbine, FD10-20kw, FD12-20kw.
Permanent magnet generator, 3 phrase AC
3 pcs FRB blades, high efficiency, low noise
FD12-20kw wind turbine work in low average wind speed place lower than 6.5m/s;
FD10-20kw wind turbine work in normal average wind speed place 6.5m/s-8m/s.
New designed 20kw wind turbine, pitch controlled, auto eletric controlled by controller, tailless new model work in rich wind speed place.
2. 20kw Wind turbine spec
| Model: | FD12-20kw |
| Rotor Diameter: | 12m/s |
| Number of Blades: | 3pcs |
| Material of Blades: | Fibre glass expoxy |
| Cut-in wind speed: | 3m/s |
| Working wind speed: | 4-30m/s |
| Survival wind speed: | 50m/s |
| Rated wind speed: | 10m/s |
| Rated rotate speed: | 160r/min |
| Rated output power: | 20kw |
| Max output power: | 30kw |
| Type of tower: | Manganese steel independence tower |
| Type of generator: | Permanent-magnet 3 phrase AC |
| Speed regulation method: | Yaw |
| Stop method: | Brake by hand drag,controller auto brake protection |
| Working voltage: | DC240v-DC500V, optional |
| Tower height: | 15m-30m or special request |
| Wind turbine main body weight: | 1700kg |
| Measurement(CBM): | 6.5CBM (wind turbine main body and controller) |
| Life span: | 20 years; |
| Warranty: | 3 years |
| Working system: | on/off grid working system |
10m,12m blades rotor diameter optional
directly drive, hotizontal axis
3 pcs FRB blades with protection film
PWM on grid controller with dump load + Aurora power one grid tie inverter
500v working system
Stand alone tower, hydraulic tower, lattice tower (provide foundation drawing)
| Model: | FD10-20kw |
| Rotor Diameter: | 10m |
| Number of Blades: | 3pcs |
| Material of Blades: | Fibre glass expoxy |
| Cut-in wind speed: | 3m/s |
| Working wind speed: | 4-30m/s |
| Survival wind speed: | 50m/s |
| Rated wind speed: | 12m/s |
| Rated rotate speed: | 170r/min |
| Rated output power: | 20kw |
| Max output power: | 30kw |
| Type of tower: | Manganese steel independence tower |
| Type of generator: | Permanent-magnet 3 phrase AC |
| Speed regulation method: | Yaw |
| Stop method: | Brake by hand drag,controller auto brake protection |
| Working voltage: | DC240v-DC500V, optional |
| Tower height: | 15m or special request |
| Wind turbine main body weight: | 1700kg |
| Measurement(CBM): | 6.1CBM (wind turbine main body and controller) |
| Life span: | 20 years; |
| Warranty: | 3 years |
| Working system: | on/off grid working system |

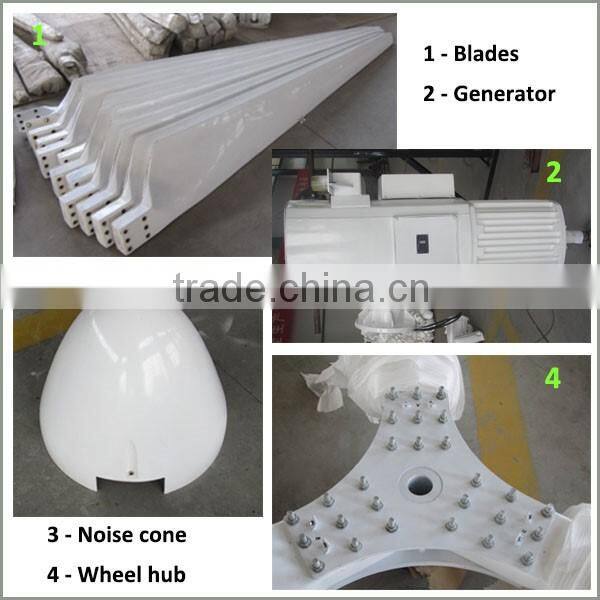

Blades, hub for the wind turbine
Wind turbine assembly
3. Output power data
| Power w | wind speed(m/s) | Rotation speed(r/min) | working voltage(V) | Output power(W) |
| 20000 | 3 | 57 | 158 | 773 |
| 4 | 83 | 207 | 1259 | |
| 5 | 103 | 235 | 3751 | |
| 6 | 124 | 290 | 7057 | |
| 7 | 141 | 338 | 12794 | |
| 8 | 158 | 367 | 15985 | |
| 9 | 172 | 419 | 19027 | |
| 10 | 191 | 490 | 21037 | |
| 11 | 209 | 520 | 22797 | |
| 12 | 220 | 550 | 23610 | |
| 13 | 235 | 575 | 25194 | |
| 14 | 249 | 590 | 26440 | |
| 15 | 268 | 600 | 27940 | |
| 16 | 268 | 600 | 27940 | |
| 17 | 268 | 600 | 27940 | |
| 18 | 268 | 600 | 27940 | |
| 19 | 268 | 600 | 27940 | |
| 20 | 268 | 600 | 27940 |
4. Wind turbine freatures
| 1. Blade: Manufacturing according to the airscrew structure principle and techniques. |
| Optimal wide TSR & High L/D ratio. With protection film on the edge, long work life. |
| Select blade type by wind tunnel testing. |
| With high efficiency, low noise. |
| 2. Blades rotor: Hub adopts casting molding; Blades rotor and generator adopt universal connection, directly driven. |
| Connection is reliable, durable, smooth operation without vibration. |
| 3. Generator |
| Rotor: Nd-Fe-B permanent magnet. Prefabricated tangential magnetic circuit rotor; High magnetic flux density, small |
| cubage, good manufacturing process and high performance. |
| Adopt SKF, NSK bearing. |
| Close transmission slip ring, the cable will not enlace. |
| 4. Speed regulation: yaw. Simple, reliable and safety. |
| 5. Anti-corrosion treatment: All the outside parts are designed to anti-salt, anti-fog, anti-atmospheric |
| anti-sandstorm corrosion design. |
| 6.Tower: guy wire tower, tilting up tower, standalone tower, hydraulic tower… It can be designed according to your request. |
| 7. 300w-2.5kw auto braking; 3kw-30kw auto braking system and manual braking system. |
| 8. Wind turbine design principle is simple, safety, reliable, maintenance free. |
| 9. Provide low wind place, rich wind place solution. Wind turbine OEM service. |
5. Working system

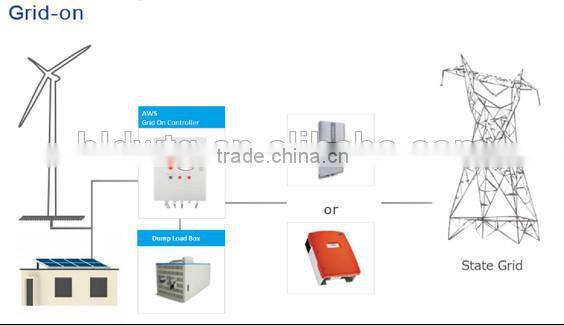

Wind turbine on grid system: wind turbine with tower + PWM on grid controller with dump load + grid tie inverter
Wind turbine off grid working system:
wind turbine with tower + PWM off grid charge controller with dump + battery group + inverter;
Wind solar hybrid off grid system, diesel or grid power as backup power
6. 20kw fixed pitch wind turbine advantage
Fixed pitch wind turbine including: 3 pcs blades, nose cone, hub, generator with manual brake part, nacelle, tail rod, tail vane
- Low/normal average wind speed wind turbine
- Fixed pitch,auto yaw, auto brake, manual brake protection system.
- Low cost, reliable and steady working system
- Low start up wind speed 3m/s, low rated wind speed 10m/s;(FD12-20kw)
- Low noise level, provide noise drawing chart
- High efficiency 3 phrase AC permanent magnet generator
- Vacuum mould blades with protection film, long worklife span in sand wind condition
- Wind turbine with antiseptic treatment, hot-galvanize tower. It can be work in sea side, island, lake...
- stand alone tower is easy to installation for sample order; Hydraulic tower is easy to install for bulk order.
- We provide completely on grid system kit

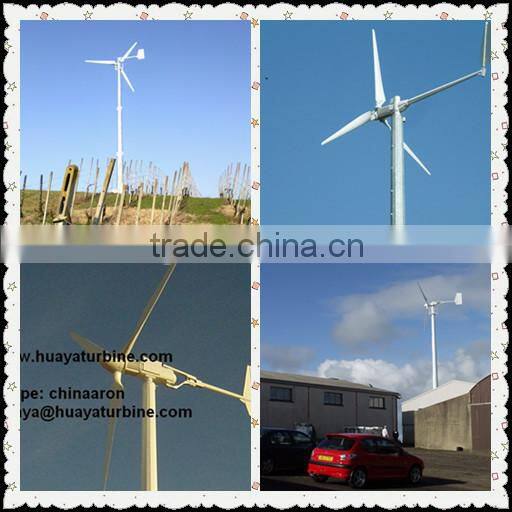

Home, farm, signal station, island, garden...

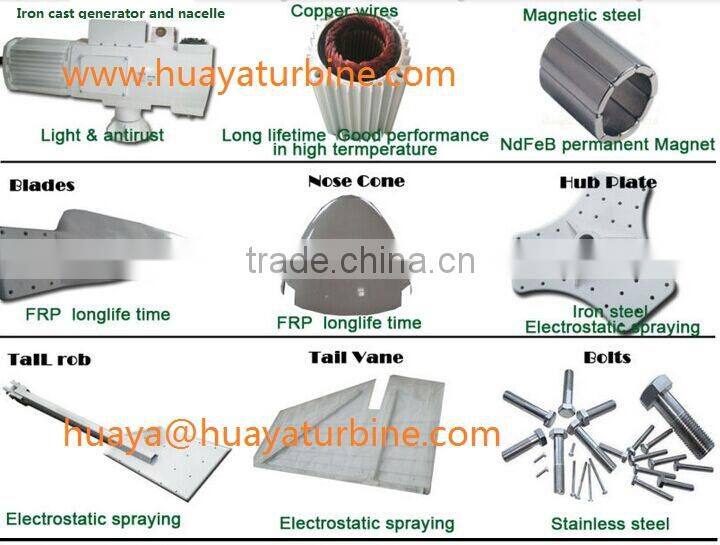

8. Blades,pma

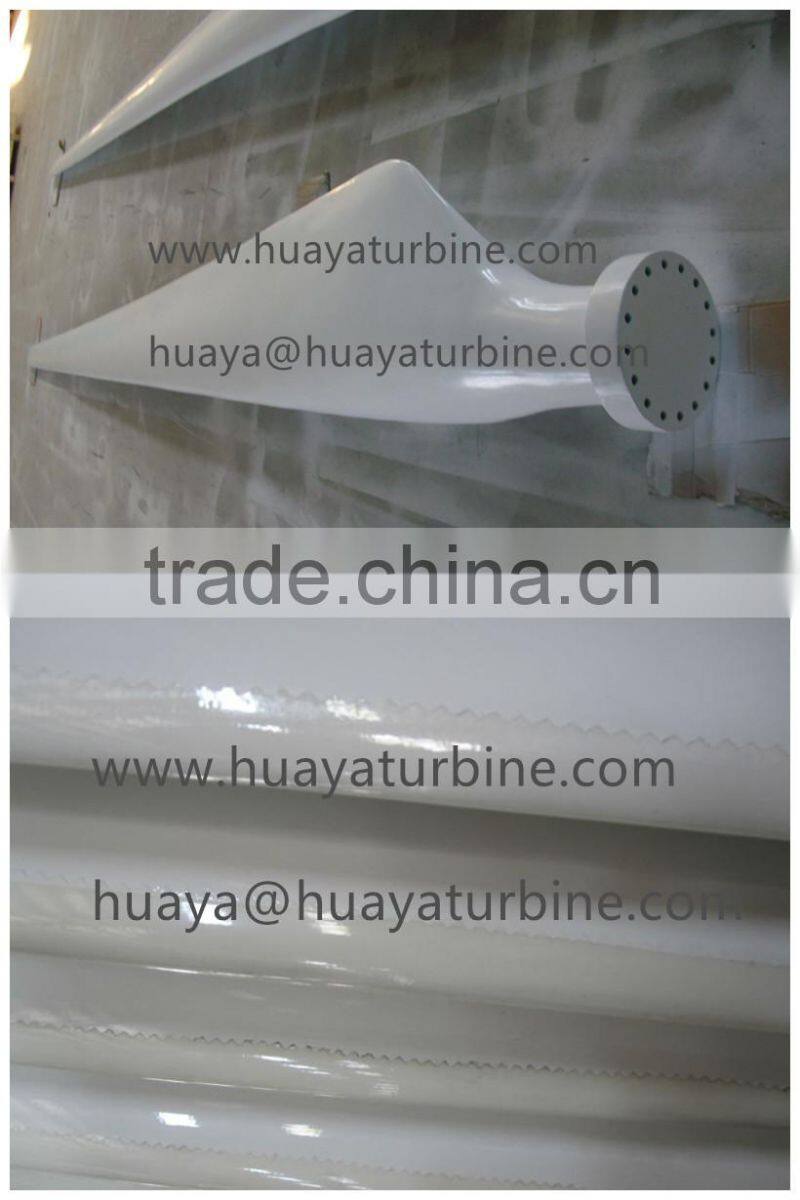

Vacuum mould blades with protection film
C.W blades, low noise level, high efficiency
FRB material, 3 pcs blades per set
Adjust blades rotor balance before delivery

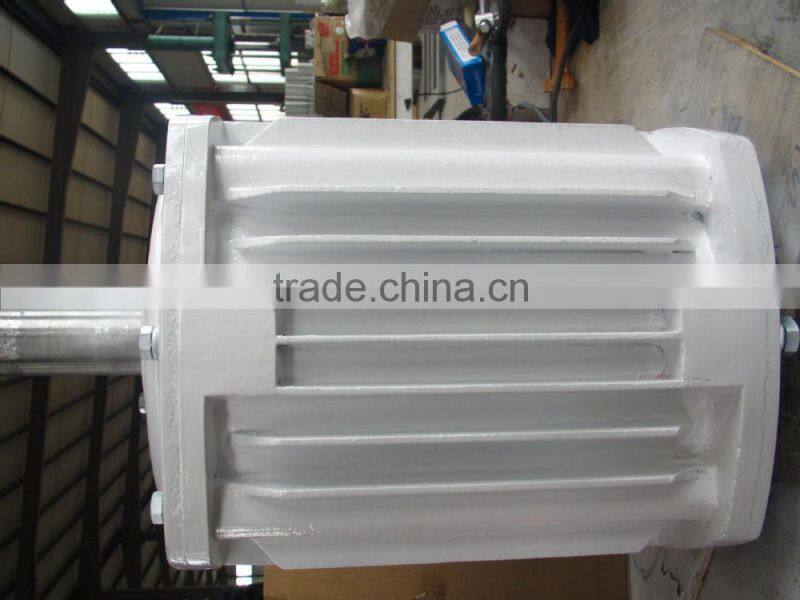

Iron cast housing made by losting mould. Beautiful and antirust. Rare earth material, high efficiency and low start up torque

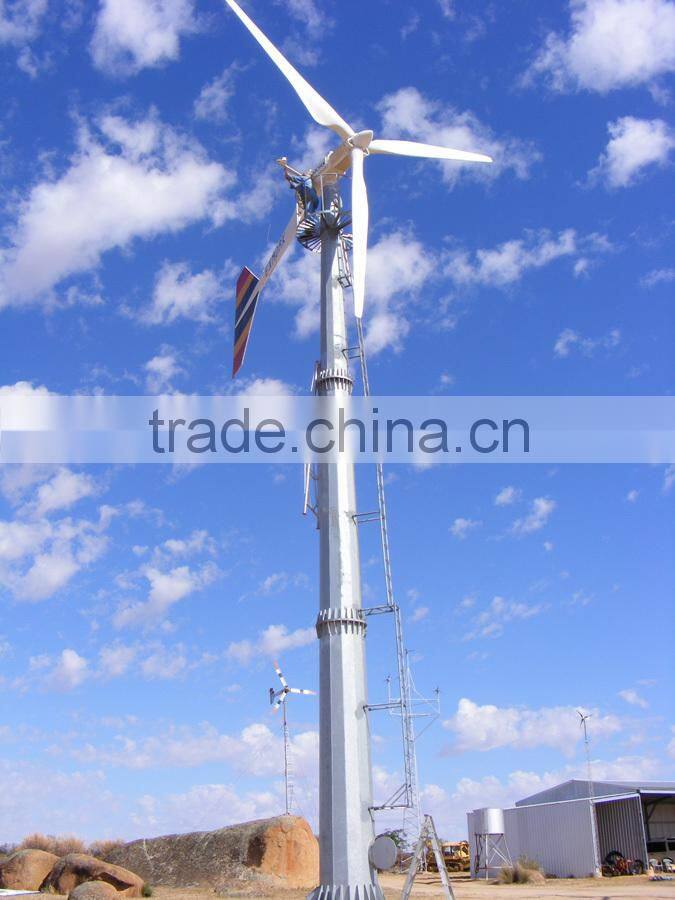

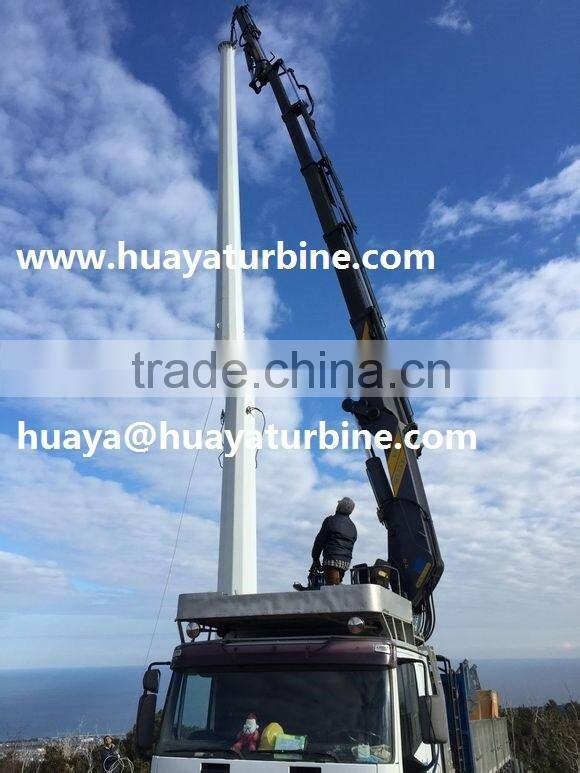

9. Tower type: stand lone tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.

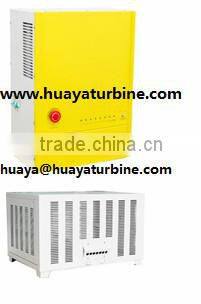

10. Matched controller
Controller converts 3 phrase AC power to Dc and charge to the battery group or feed to the grid tie inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched with off grid single phrase/ 3 phrase pure sine wave inverter.
On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.

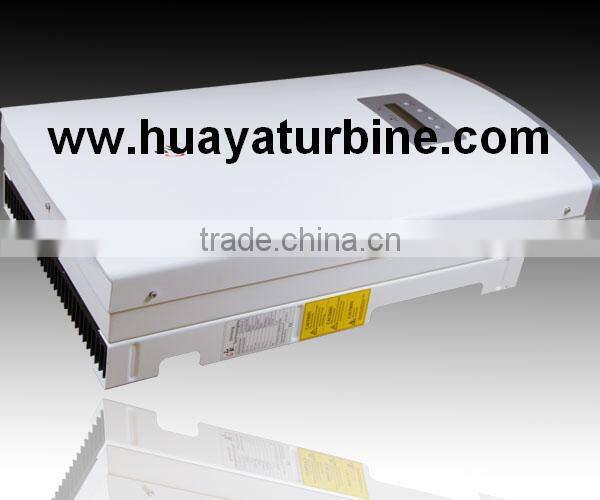

11.Inverter for on/off grid system:

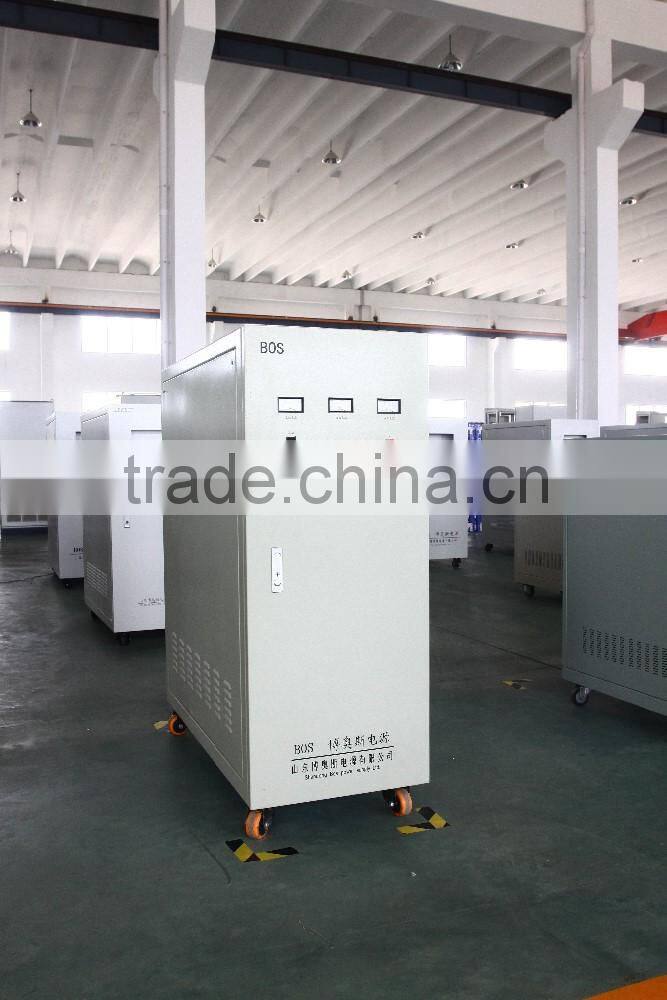

Matched (3 phrase )grid tie inverter 10k*2 sets, add isolation transformer between two grid tie inverter. pure sine wave inverter single phrase/ 3 phrase
Matched 1 Inverter Trio-20.0-TL-OUTD-W
Inverter output voltage, frequency can be manufactured according to different countries request.
Other fixed pitch wind turbine model list:
| Model | Working voltage |
| FD2.2-300W | DC24V |
| FD2.5-500W | DC24V |
| FD2.8-1KW | DC24V/DC48V |
| FD3.2-1.5kw | DC24V/DC48V |
| FD3.2-2KW | DC24V/DC48V |
| FD3.8-2.5kw | DC48V |
| FD4-3KW | DC48v |
| FD4-4KW | DC120v |
| FD5-5KW | DC120v |
| FD8-10KW | DC120V |
| FD8-15kw | DC240 |
| FD10-15KW | DC240V |
| FD10-20KW | DC500V |
| FD10-25KW | DC500V |
| FD12-30KW | DC500V |
| FD2.8-500W | DC24V |
| FD3.2-1KW | DC24V/DC48V |
| FD3.8-2KW | DC24V/DC48V |
| FD6-5KW | DC120V |
| FD10-10KW | DC120V |
| FD12-20KW | DC500 |

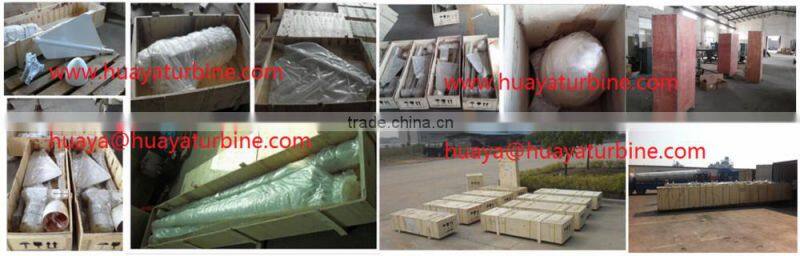

Wind turbine main body, blades, pma, tail, controller, inverter: plywood case
Tower: soft packages
Delivery by sea
FOB/C&F, CIF
500w-3kw wind turbine : 3-5 working days after payment
5kw-30kw wind turbine: 7-10 working days after payment
50kw-60kw 15-20 days after payment
Tower needs about 10 working days after payment
| 20kw WTG packing list | |||||
| Item | Description | Packing | G.W(Kg) | ||
| Packing method | outside size(m) | ||||
| 1 | Hub,nose cone and under cover | plywood box | 0.55 | 150 | |
| 2 | Generator/rotor body | plywood box | 1.77 | 890 | |
| 3 | Blades | plywood box | 2.09 | 390 | |
| 4 | Tail vane | Tail vane plate | plywood box | 0.85 | 255 |
| Tail vane frame | |||||
| Giant-shaped steel & others | |||||
| 5 | Tail rod | soft package | 0.25 | 75 | |
| 6. | On grid controller | carton | 0.10 | 30 | |
| grid tie inverter | plywood case | 0.15 | 40 | ||
| 7. | Unload box | carton | 0.46 | 77 | |
| TTL: | 6.23cbm | 1907 | |||
Provide professional wind turbine technical support;
Provide on/off grid system design, wind solar hybrid system design service.
Completely system provider and designer;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawing;
Provide OEM service, customized service.
Support paypal /west union payment, TT payment;

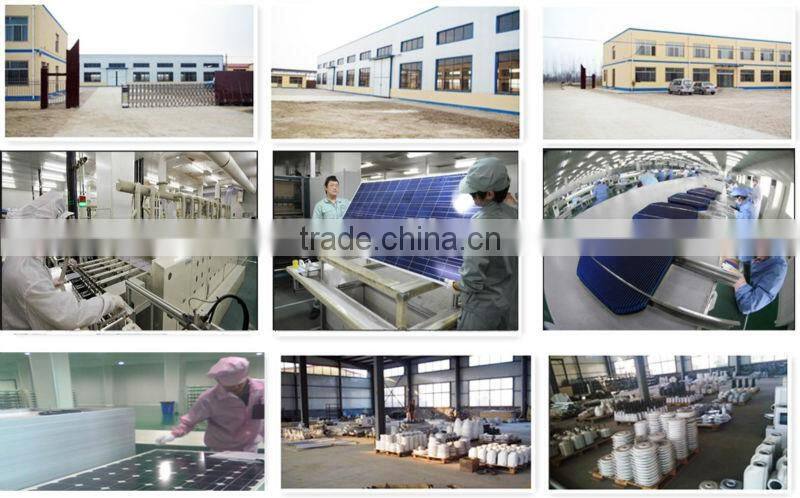

We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind turbine exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.

1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
Contact Us
- Qingdao HenryD Wind Power Equipment Co., Ltd.
- Contact nameAron wang Chat Now
- Phone86-532-82903820
- AddressNo.803 Jin Shui Road, Qingdao, Shandong
Product Categories
| Battery, inverter, controller,tower | Fixed pitch wind turbine | New Products |
New Products
-
Low Noise, Low Rpm, Commercial FD14-30kw Wind Turbine With Permanent Magnet Generator, Wind Electric Generator
-
HOME WIND POWER! 3kw 5kw Wind Turbine Generator for Home Use, Free Energy Generator, Aerogenerator 3kw 5kw
-
5kw Windmill Generator, Wind Energy Generator 5kw for Home Use, 5kw Household Wind Power Generator 3 Phase Low Rpm
-
Low Noise, High Efficiency Horizontal Wind Turbine Generator FRB Blades for HAWT / VAWT,
-
HENRYD! Low Noise High Efficiency VAWT HAWT Wind Turbine Blade for Wind Generator, FRB or Carbon Material
-
HOME! 1.5kw Wind Generator Set With 3.2m / 2.8m Blades Rotor
-
SALES! 3kw Wind Turbines for Home With 3kw on Grid/off Grid Wind Generator Kit
-
FACTORY! Low Wind Speed 3kw Wind Generator, Island Wind Power Generator 3kw 48v 360
-
NEW! 1500W Wind Turbine Generator Kit 3 Phase Permanent Magnet Generator, Horizontal Type Wind Turbine Electric Generator
-
PROMO! 1.5kw Wind Power Generation, Residential Fixed Pitch Small Wind Turbine 1.5kw 24v 48v 240v 360v
-
3kw/3000w Wind Power Equipment, Wind Electric Generator 3000w Wind Energy System US$900/set
-
PROMO! CE and IEC Confirmed Commercial FD6-5KW Wind Generator for Home With Eolic Generator
-
Factory! Low Noise Low Price 30kw Wind Turbine With 12m/14m Blades Rotor, 500v on Grid Wind Power System Kit
-
Wind Energy Generators 30kw Wind Power Generator on Grid System, Windmill Generator FD12-30kw
-
1kw Wind Power Generator Hybrid 1kw Solar Power System, 2kw Wind Solar Hybrid System/solar Wind System
-
Wind Turbine 2kw Wind Power Generator, Aero-generator 2000w Max Output 3kw
-
HLD! Horizontal Axis Wind Generators 3KW With Wind Turbine Price for 5kw Wind Solar Hybrid System
-
2500w! 2500w Wind Turbine Generator Type Wind Power Generator, Fixed Pitch/horizontal Axis/yawing Wind Generators
-
AEROGENERADOR 10kw Wind Power Generator, Wind Electric Generator 380v on Grid System Kit, Wind Generator Kit
-
HOT! 4kw 5kw 6kw Wind Solar Hybrid System With 3kw Wind Generator for Home Use 24v 48v Quality Choice
-
HOT SALES! 5000w Wind Turbine Generator/wind Generator Price,windmill Generator 5000w Wind Power HAWT
-
HOT! 2500w Wind Turbine Wind Generators for Home, Horizontal Axis Home Wind Turbines With On/off Grid System
-
X-max Promo! 10kw Wind Generator Horizontal Axis Wind Turbine Generator 10kw
-
CHINA Farm Wind Generator 50kw Wind Turbine With Permanent Magnet Alternator 60rpm 23m Rotor Diameter
Popular Searches
- wind generator
- permanent magnet generator
- wind turbine generator
- vertical wind turbine generator
- wind power generator
- water turbine generator
- horizontal wind generator
- turbine
- alternative energy
- hydro turbine generator
- windmill generator
- turbine power generator
- turbine generator set
- permanent magnet alternator
- wind turbine
- wind power
- turbine generator
- low rpm generator alternator
- energy generator
- free energy permanent magnet generator
- free energy magnet generator
- magnet generator
- hydro turbine
- neodymium magnet generator
- horizontal engine
- steam turbine
- hydro power
- pmg
- alternative energy generator
- wind mill
Recommended Products
- Hydraulic Disc Brake
- Wind Power Using Duplex Stainless Steel PSA Fall Protection Anchor
- 20KW MOBILE DC Charging Pile User Manual for Car Charging Station
- 40KW MOBILE DC Charging Pile User Manual for Car Charging Station
- Hydraulic Lockpin for Wind Turbine
- 120KW DC Fast EV Charger With Two Connectors for Car Charging Station
- 120KW DC Fast EV Charger With Two Connectors for Car Charging Station
- Fast Electric Car Charging Station ev Charger Pile DC 40kw 5m Cable 1 MOQ to Deliver in Stock
- Full Automatic Solar Panel Production Line Equipment
- 500MW Solar Panel Production Line Equipment
- 450MW Solar Panel Production Assembly Line Equipment
- Full Automatic Solar Module Production Line Equipment
Find Similar Products By Category
- Industrial Equipment & Components > Power & Generating Sets > Wind Generator
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now-
Aron wang
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile






HENRYD! Low Price, Low Noise Horizontal Axis 20kw Wind Generation With Permanent Magnet Generator for on Grid Wind Power System
HOT SALES! 2kw Home Wind Turbine, Wind Electric Generator 2kw for Wind Solar Hybrid System 3kw 4kw 5kw
Wind Turbine FRB Blades, Wind Turbine Aluminum Blades, Wind Turbine Carbon Blades for 10w-60kw Wind Turbine Generator Quality Choice
Wind Turbine Generator Blades, Wind Power Generator Blades FRB/Carbon Fiber
5KW! Windkraftanlage 5KW Wind Power Permanent Magnet Generator
1500W! Micro Wind Turbine 1.5kw Aerogenerator, Turbine Eoliche/vindur Hverfla/Turbiny Wiatrowe/Wind Kraftanlagen














Low Noise, Low Rpm, Commercial FD14-30kw Wind Turbine With Permanent Magnet Generator, Wind Electric Generator
HOME WIND POWER! 3kw 5kw Wind Turbine Generator for Home Use, Free Energy Generator, Aerogenerator 3kw 5kw
5kw Windmill Generator, Wind Energy Generator 5kw for Home Use, 5kw Household Wind Power Generator 3 Phase Low Rpm
Low Noise, High Efficiency Horizontal Wind Turbine Generator FRB Blades for HAWT / VAWT,
HENRYD! Low Noise High Efficiency VAWT HAWT Wind Turbine Blade for Wind Generator, FRB or Carbon Material
HOME! 1.5kw Wind Generator Set With 3.2m / 2.8m Blades Rotor
SALES! 3kw Wind Turbines for Home With 3kw on Grid/off Grid Wind Generator Kit
FACTORY! Low Wind Speed 3kw Wind Generator, Island Wind Power Generator 3kw 48v 360
NEW! 1500W Wind Turbine Generator Kit 3 Phase Permanent Magnet Generator, Horizontal Type Wind Turbine Electric Generator
PROMO! 1.5kw Wind Power Generation, Residential Fixed Pitch Small Wind Turbine 1.5kw 24v 48v 240v 360v
3kw/3000w Wind Power Equipment, Wind Electric Generator 3000w Wind Energy System US$900/set
PROMO! CE and IEC Confirmed Commercial FD6-5KW Wind Generator for Home With Eolic Generator
Factory! Low Noise Low Price 30kw Wind Turbine With 12m/14m Blades Rotor, 500v on Grid Wind Power System Kit
Wind Energy Generators 30kw Wind Power Generator on Grid System, Windmill Generator FD12-30kw
1kw Wind Power Generator Hybrid 1kw Solar Power System, 2kw Wind Solar Hybrid System/solar Wind System
Wind Turbine 2kw Wind Power Generator, Aero-generator 2000w Max Output 3kw
2500w! 2500w Wind Turbine Generator Type Wind Power Generator, Fixed Pitch/horizontal Axis/yawing Wind Generators
AEROGENERADOR 10kw Wind Power Generator, Wind Electric Generator 380v on Grid System Kit, Wind Generator Kit
HOT! 4kw 5kw 6kw Wind Solar Hybrid System With 3kw Wind Generator for Home Use 24v 48v Quality Choice
HOT SALES! 5000w Wind Turbine Generator/wind Generator Price,windmill Generator 5000w Wind Power HAWT
X-max Promo! 10kw Wind Generator Horizontal Axis Wind Turbine Generator 10kw
CHINA Farm Wind Generator 50kw Wind Turbine With Permanent Magnet Alternator 60rpm 23m Rotor Diameter
