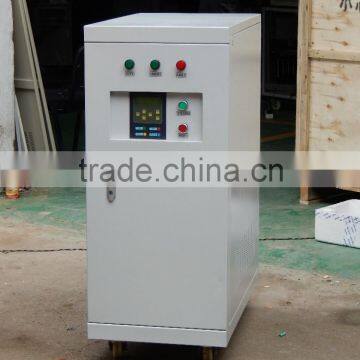

HLD! single phase off grid pure sine wave inverter 30kw for solar wind power system Quality Choice

FOB Price

US$ 4,000 - 4,500 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	HENRYD
Model Number	20kva	Output Power	1 - 200KW
Output Type	Single	Size	6609501300mm
Weight	210kgs	Input Voltage	48v/96v/120v/240v
Output Voltage	110 VAC / 120 VAC / 220 VAC / 240 VAC	Type	DC/AC Inverters
Output Frequency	50Hz/60Hz	Output Current	91A

Product Description

HLD! solar off grid single phase pure sine wave inverter 30kva/ 30kw

Product Description

1. Using IGBT from Mitsubishi company as the power components
    2. Using American ATEMEL company microprocessor as figure controller
    3. Perfect protection and warning functions
    4. Circuit frame compact,Max. Efficiency≥94%
    5. With wide input voltage range
    6.RS232/485 communication,multi communication interface can be selected
    7. Big-screen English LCD, perfect display, interface-friendly

20KVA off grid single phase inverter technical parameters:

Type		NB48-20KD	NB96-20KD	NB110-20KD	NB220-20KD
DC input	Input rated voltage	48 VDC	96 VDC	110 VDC	220 VDC
	Input rated current	416 A	208 A	182 A	91 A
	Input DC voltage range	40-60 VDC	75-135 VDC	80-145 VDC	180-300 VDC
AC input	Allow input voltage range	110 VAC /120 VAC /220 VAC /240 VAC ± 15% VAC
	Input rated current	182A / 167A / 91 A / 83A
	Bypass transfer time	≤4 ms
AC output	Rated capacity	20KVA
	Output rated power	16KW
	Output rated voltage and frequency	110 VAC / 120 VAC / 220 VAC / 240 VAC ,50Hz / 60Hz
	Output rated current	182A / 167A / 91 A / 83A
	Output voltage accuracy	110 VAC / 120 VAC / 220 VAC / 240 VAC±2%
	Output frequency accuracy	50Hz / 60Hz ± 0.05%
	Waveform distortion (THD). (Linear load)	≤3%
	Dynamic response time (Load 0←→100%)	5%
	Power factor (PF)	0.8
	Overload capacity	120%,3 minutes,150%,10 second
	Crest factor (CF)	3:1
	Inverter efficiency	90%
Working Environment	Dielectric strength	1500VAC,1 minute
	Noise (1m)	≤50dB
	Ambient temperature	-10℃~+50℃
	Humidity	0~90%, No condensation
	Altitude	≤5000 m
Production function	Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Size	6109501300mm
Weight	210Kg

2. Technical parameters for other models:

Technical parameters:

Model	BNWA-1KD	BNWA- 2KD	BNWA-3KD	BNWA-5KD	BNWA-10KD	BNWA-20KD	BNWA-30KD	BNWA-50KD
Rating capacity	1KVA	2KVA	3KVA	5KVA	10KVA	20KVA	30KVA	50KVA
Rating AC output power	1KVA	2KVA	3KVA	5KVA	10KVA	20KVA	30KVA	50KVA
Max. AC output power	1.2KVA	2.4KVA	3.6KVA	6KVA	12KVA	24KVA	36KVA	60KVA
Isolation	Low frequency transformer isolation
Recommending wind turbine power	1.2KVA	2.4KVA	3.6KVA	6KVA	12KVA	24KVA	36KVA	60KVA
DC input voltage range	50~780VDC		100~780VDC		150~780VDC		200~780VDC
Max. DC Input current	20A	20A	20A	25A	50A	100A	150A	250A
DC connecting mode	In-line waterproof terminal				Connecting terminal
Max. Efficiency	94%
Euro efficiency	92%
Total current waveform distortion factor	<3%(liner load)
Comm. interfaces	RS485/RS232
electrical insulating performance	1500Vac,1minute
Using environment temperature	-25~+60℃
Using environment humidity	0~100%
Protection	Input short voltage,over voltage,opposing connection,output over current,short circuit,over heat etc
Cooling method	Air cooling
Noise	<40dB				<55dB
Protection class	IP20(indoor)),IP65(outdoor)
Width ×depth ×height(mm)	200420400		225480450		550480980		8006002260
Weight(kg)	18	30	40	60	150	250	360	700

3. LED display

4. 10kw 15kw 30kw 1 phase pure sine wave inverter normal spec

10KVA off grid single phase inverter technical parameters

Type		NB48-10KD	NB96-10KD	NB110-10KD	NB220-10KD
DC input	Input rated voltage	48 V_DC	96 V_DC	110 V_DC	220 V_DC
	Input rated current	208 A	104 A	91 A	45.5 A
	Input DC voltage range	40-60 V_DC	75-135 V_DC	80-145 V_DC	180-300 V_DC
AC input	Allow input voltage range	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC± 15% V_AC
	Input rated current	91A / 104A / 45.5 A / 42A
	Bypass transfer time	within 4 ms
AC output	Rated capacity	10KVA
	Output rated power	8KW
	Output rated voltage and frequency	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC,50Hz / 60Hz
	Output rated current	91A / 104A / 45.5 A /42A
	Output voltage accuracy	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC± 2%
	Output frequency accuracy	50Hz / 60Hz ± 0.05%
	Waveform distortion (THD). (Linear load)	≤3%
	Dynamic response time (Load 0←→100%)	5%
	Power factor (PF)	0.8
	Overload capacity	120%,3 minutes,150%,10 second
	Crest factor (CF)	3:1
	Inverter efficiency	90%
Working Environment	Dielectric strength	1500VAC,1minute
	Noise (1m)	≤50dB
	Ambient temperature	-10℃~+50℃
	Humidity	0~90%, No condensation
	Altitude	≤5000 m
Production function	Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection

15KVA off grid single phase inverter technical parameters:

Type		NB48-15KD	NB96-15KD	NB110-15KD	NB220-15KD
DC input	Input rated voltage	48 V_DC	96 V_DC	110 V_DC	220 V_DC
	Input rated current	312 A	156 A	136 A	68 A
	Input DC voltage range	40-60 V_DC	75-135 V_DC	80-145 V_DC	180-300 V_DC
AC input	Allow input voltage range	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC± 15% V_AC
	Input rated current	136A / 125A / 68A / 62.5A
	Bypass transfer time	within 4 ms
AC output	Rated capacity	15KVA
	Output rated power	12KW
	Output rated voltage and frequency	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC,50Hz / 60Hz
	Output rated current	136A / 125A / 68A / 62.5A
	Output voltage accuracy	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC± 2%
	Output frequency accuracy	50Hz / 60Hz ± 0.05%
	Waveform distortion (THD). (Linear load)	≤3%
	Dynamic response time (Load 0←→100%)	5%
	Power factor (PF)	0.8
	Overload capacity	120%,3 minutes,150%,10 second
	Crest factor (CF)	3:1
	Inverter efficiency	90%
Working Environment	Dielectric strength	1500VAC,1minute
	Noise (1m)	≤50dB
	Ambient temperature	-10℃~+50℃
	Humidity	0~90%, No condensation
	Altitude	≤5000 m
Production function	Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection

Back part of the inverter

30KVA off grid single phase inverter technical parameters

Type		NB110-30KD	NB220-30KD	NB380-30KD
DC input	Input rated voltage	110 V_DC	220 V_DC	380 V_DC
	Input rated current	273A	136 A	79 A
	Input DC voltage range	75-135 V_DC	180-300 V_DC	300-490V_DC
AC input	Allow input voltage range	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC± 15% V_AC
	Input rated current	272A / 250A / 136 A /125A
	Bypass transfer time	within 4 ms
AC output	Rated capacity	30KVA
	Output rated power	24KW
	Output rated voltage and frequency	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC,50Hz / 60Hz
	Output rated current	272A / 250A / 136 A /125A
	Output voltage accuracy	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC± 2%
	Output frequency accuracy	50Hz / 60Hz ±0.05%
	Waveform distortion (THD). (Linear load)	≤3%
	Dynamic response time (Load 0←→100%)	5%
	Power factor (PF)	0.8
	Overload capacity	120%,3 minutes,150%,10 second
	Crest factor (CF)	3:1
	Inverter efficiency	90%
Working Environment	Dielectric strength	1500VAC,1minute
	Noise (1m)	≤50dB
	Ambient temperature	-10℃~+50℃
	Humidity	0~90%, No condensation
	Altitude	≤5000 m
Production function	Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection

50KVA off grid single phase inverter technical parameters

Type		NB220-50KD	NB380-50KD
DC input	Input rated voltage	220 V_DC	380 V_DC
	Input rated current	227 A	132 A
	Input DC voltage range	180-300 V_DC	300-490V_DC
AC input	Allow input voltage range	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC± 15% V_AC
	Input rated current	455A / 417A / 227A /208A
	Bypass transfer time	within 4 ms
AC output	Rated capacity	50KVA
	Output rated power	40KW
	Output rated voltage and frequency	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC,50Hz / 60Hz
	Output rated current	455A / 417A / 227A / 208A
	Output voltage accuracy	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC± 2%
	Output frequency accuracy	50Hz / 60Hz ±0.05%
	Waveform distortion (THD). (Linear load)	≤3%
	Dynamic response time (Load 0←→100%)	5%
	Power factor (PF)	0.8
	Overload capacity	120%,3 minutes,150%,10 second
	Crest factor (CF)	3:1
	Inverter efficiency	90%
Working Environment	Dielectric strength	1500VAC,1minute
	Noise (1m)	≤50dB
	Ambient temperature	-10℃~+50℃
	Humidity	0~90%, No condensation
	Altitude	≤5000 m
Production function	Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection

100KVA off grid single phase inverter technical parameters

Type		NB220-100KD	NB380-100KD
DC input	Input rated voltage	220 V_DC	380 V_DC
	Input rated current	455 A	263 A
	Input DC voltage range	180-300 V_DC	300-490V_DC
AC input	Allow input voltage range	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC± 15% V_AC
	Input rated current	909A / 833A / 455A /417A
	Bypass transfer time	within 4 ms
AC output	Rated capacity	100KVA
	Output rated power	80KW
	Output rated voltage and frequency	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC,50Hz / 60Hz
	Output rated current	909A / 833A / 455A /417A
	Output voltage accuracy	110 V_AC / 120 V_AC / 220 V_AC/ 240 V_AC± 2%
	Output frequency accuracy	50Hz / 60Hz ±0.05%
	Waveform distortion (THD). (Linear load)	≤3%
	Dynamic response time (Load 0←→100%)	5%
	Power factor (PF)	0.8
	Overload capacity	120%,3 minutes,150%,10 second
	Crest factor (CF)	3:1
	Inverter efficiency	90%
Working Environment	Dielectric strength	1500VAC,1minute
	Noise (1m)	≤50dB
	Ambient temperature	-10℃~+50℃
	Humidity	0~90%, No condensation
	Altitude	≤5000 m
Production function	Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection

5. Working system

(1) Wind power off grid system

(2.) Solar power off grid system

6. Inverter function description

Inside photos of the inverter

30kw inverter

Packaging & Shipping

Packed by plywood case, standard export standard

Delivery by sea: Qingdao port

By air : Qingdao airport

FOB/C&F, CIF

Delivery by express: DHL/FEDEX/TNT...

Payment:

Support LC at sight, paypal payment, TT payment;Trade assurance

Our Services

As our corporate users, you enjoy the following service:

(1) The machine warranty for free in 2 year;

(2) Technical support;

(3) Within 24 hours for respond after receiving notification;

(4) Cost maintenance forever.

When you confirm the failure of equipment, please promptly contact us and provide the equipment model and complete description of the problem.

However, any of the following situation happened, are not included in the warranty:

(1) Non-permitted by the company, went ahead with repair and damage;

(2) Install or modify arbitrarily;

(3) Incorrect operation or use;

(4) Do not depending on the manual to do cleaning or maintenance;

(5) Abnormal environment condition exceed the specifications, result in damage;

(6) The deliberate destruction of man-made;

(7) Irresistible natural disasters.
