12-96V 200Amps Battery Discharger/battery Discharge Test LCD Touch Screen

Main Functions and Features:

1,Used to discharge to battery string removed from the system

2,Discharge to Battery string voltage as 12V/24V/36V/48V/72V/80V/96V, Cell voltage as 1.2V/2V/6V/12V

3,4 adjustable stop points and multiple alarm designs to control the discharge process intelligently

4,7inch LCD touch screen for easy operation and showing various parameters real time

5,Support real time monitoring by PC through USB port or SD Card download data after discharge

1,On-line monitoring test setting interface:

Online monitoring for battery string: when the battery pack is under the state of online discharge, uniform charge and floating charge, perform real-time online monitoring for all cells. The monitoring includes string voltage, cell voltage, charge/discharge current, monitoring time of battery string, charge/discharge capacity of battery string and etc.

2,Discharge test setting interface:

Perform discharge of constant current taking advantage of intellectualized dummy load after the battery pack is removed from system, set up the parameters of “discharge current”,“discharge time ”,“discharge capacity” ,“final protective voltage of whole pack” and“ final protective voltage of cell”, and the tester could carry out discharge function automatically, display discharge current,battery discharged capacity,the whole pack voltage, cell voltage, discharge time and etc at real time;

Battery String voltage is 12V/24V/36V/48V/72V/80V/96V and single battery voltage is 1.2V/2V/6V/12V. Users can decide how to set single battery voltage

5,Easy to operate: All input is simple Chinese menu, humanized operation, clear procedure, every step and interface will give user brief tips avoid incorrect operation fundamentally

6,The instruments can analyze according to main test function on the histogram and the curve chart. It’s unnecessary to upload the result in PC.

7,Mature correspondence function, including RS232 communication port and SD card connection port. Data will be transferred to PC begin the storage management. It can analyze and store historical data in long time; It’s convenient, reliable and safe if we transfer data via SD card

8,Tester host integrated monitoring part and power part together, and power part adopted latest hi-efficiency components

9,Adopted new special low-heat hi-efficiency loading material and advanced control technology ensure the higher constant current precision.

10,      It can be hung and used for any large volume battery to test the actual volume

11,  Providing data management, print, analyze, count report, automatic generate test report. Amplify or minify the voltage curve for easy observation.

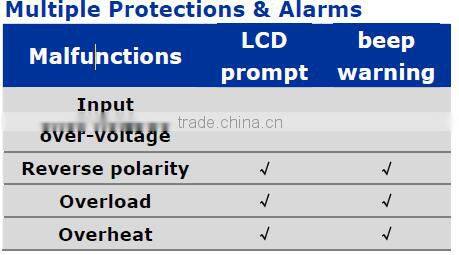

12,  The auto-test and protection function: During test if we find whole battery set or single battery have any problem test will stop automatically to avoid any further damage and completely prevent shock on the device; test can be cut off according to actual condition as well

After test all test result will be displayed automatically and according to these data advise maintenance point.

WORKSHOP AND PRODUCTION LINE :

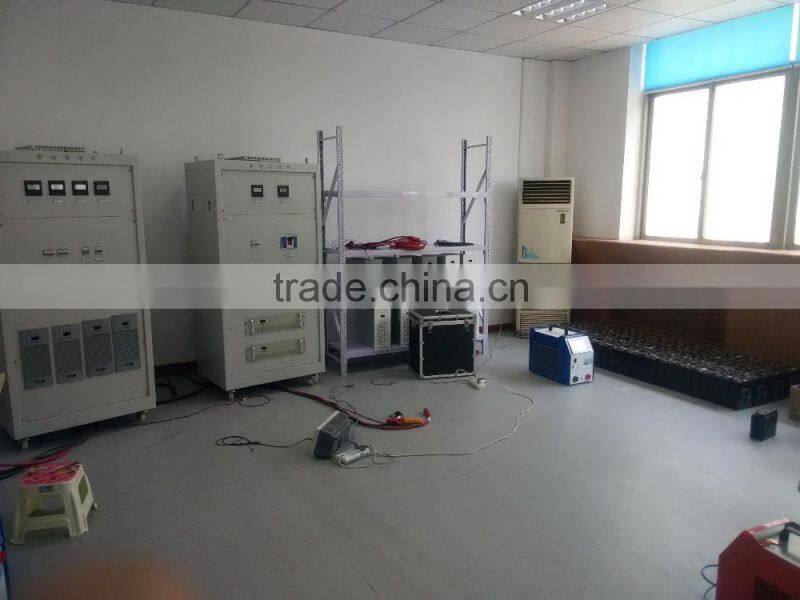

LABORATORY :

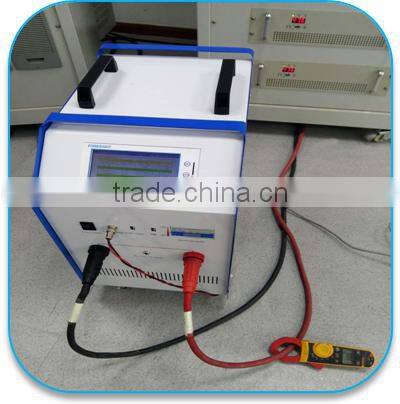

PRODUCT TEST :
