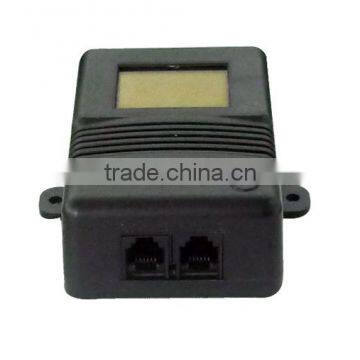

FSIT-TV Cellcheck on Line Battery Monitoring System

CELLCHECKTM Intelligent Battery Monitor

Internal Resistance, Voltage and Temperature Measurements

 Continuous 24/7 on-line monitoring

 One CELLCHECK monitor one cell, including internal resistance, voltage and temperature

 Software is available to collect data from CELLCHECK

Serial port with Optical isolation, meet MODBUS protocol, easy to be accessed by UPS controller

Easy to install without specialized training

Overview

CELLCHECK intelligent battery monitor is designed specifically for single cell. CELLCHECK combines the advanced technology with patented for the most thorough stationary battery health analysis in the industry.

Features

Full resistance, battery temperature and voltage monitoring for comprehensive battery state of health analysis

String current and ambient temperature monitoring(need TC module)

Automatic analysis of battery monitoring data, find the batteries that need replacement or maintenance

(need CM module)

Specifications

Environmental

Operating temperature:-5℃-50℃,5%-90%RH

Storage temperature: -10℃-70℃,5%-90%RH

Used for

2V,6V or 12V battery, capacity from 30AH to 2000AH

Power Requirements

CELLCHECK:powered from the battery,less than 60mA(2V) or 25mA(12V)

TC module:DC8-13V,2W

Convertor:DC8-13V,0.3W

CM module:85-264VAC,100V~370VDC,15W

Protection

Test load and power paths are fused

Measurement Range & Accuracy

String voltage:20-600V,±(0.5%+0.2V)

Cell voltage:1.5-2.5V,±(0.1%+1mV)

             9-15V,±(0.1%+10mV)

Internal resistance:100-65535uΩ

Battery temperature:5℃-50℃, ±1.5℃

Ambient temperature: -10℃-+70℃,±0.5℃

String current:0-300A(optional),

±(2%+0.5A)

Communications Interfaces

CELLCHECK:serial port, meet MODBUS protocol, support 200 devices on each bus

TC module:serial port, meet MODBUS protocol

Convertor: serial port, meet MODBUS protocol

CM module:RS232, RS485, Ethernet 10/100 Mbps, meet MODBUS protocol

Insulation

2000VAC

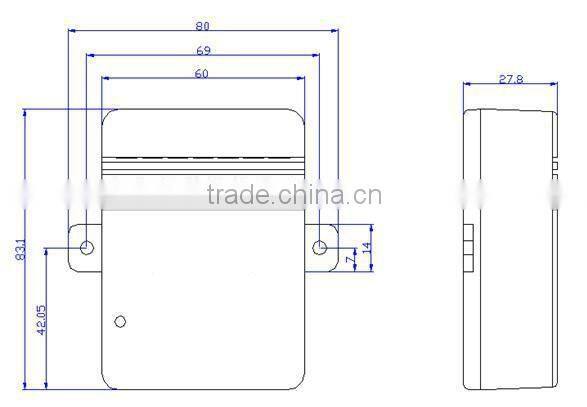

Installation

Paste on battery or rail mounting

Weight

CELLCHECK: 115g    TC module: 260g

Convertor: 40g        CM module: 2.5Kg

With a big storage space to save history data

LED on panel flashes when alarms rise up which also can be read over through serial bus

All operating parameters can be set over through serial bus

Options

1. TC module

  Measure string current and ambient temperature

2. CM module

  Manage up to 4 strings and 200 cells each string

3. Current sensor

  Measure string current with TC module

4. Software

  It can be installed on PC and read and display data from CM module

 A software base on PC is available to manage multiple strings, check real-time alarm and historical data
