Battery Testing System/battery Maintenance System/battery Monitoring System for UPS Power System

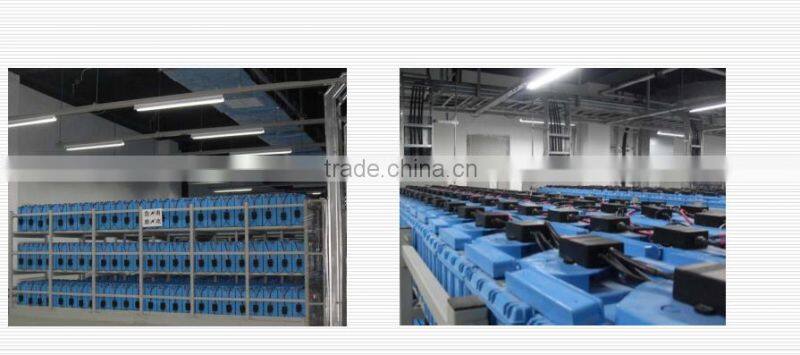

Continuous 24/7 on-line monitoring

• One CELLCHECK monitor one cell, including internal resistance, voltage and temperature

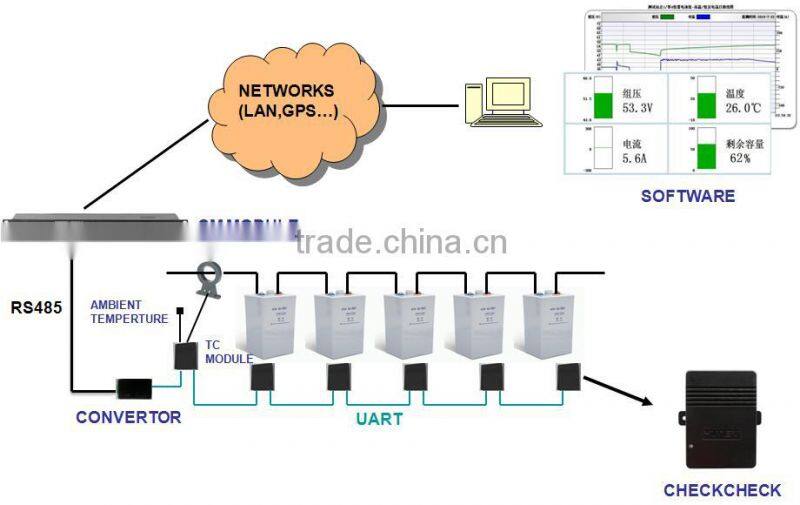

• Software is available to collect data from CELLCHECK

• Serial port with Optical isolation, meet MODBUS protocol, easy to be accessed by UPS controller

• Easy to install without specialized training

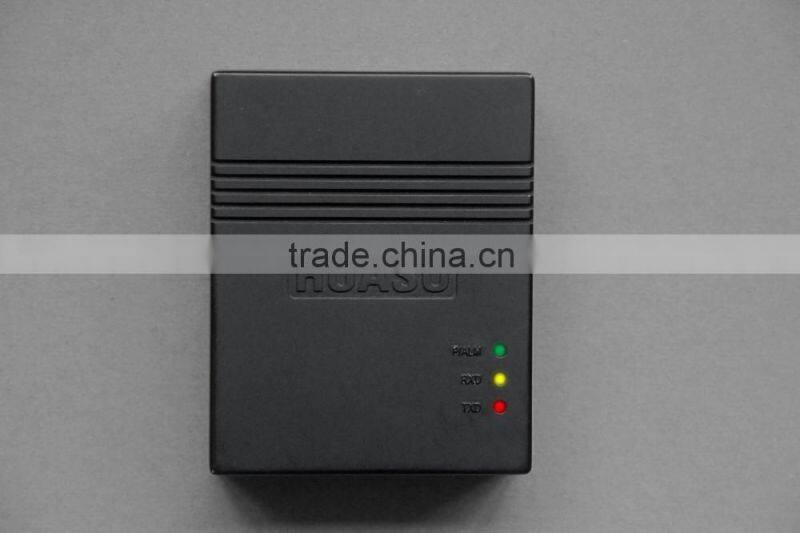

CELLCHECK intelligent battery monitor is designed specifically for single cell. CELLCHECK combines the advanced technology with patented for the most thorough stationary battery health analysis in the industry.

line-height-rule:exactly;mso-layout-grid-align:none;text-autospace:none'>• Software is available to collect data from CELLCHECK

• Serial port with Optical isolation, meet MODBUS protocol, easy to be accessed by UPS controller

• Easy to install without specialized training

 Full resistance, battery temperature and voltage monitoring for comprehensive battery state of health analysis

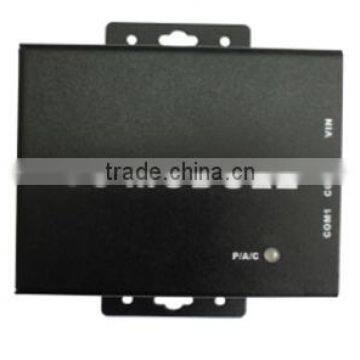

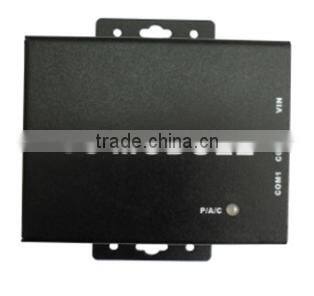

• String current and ambient temperature monitoring(need TC module)

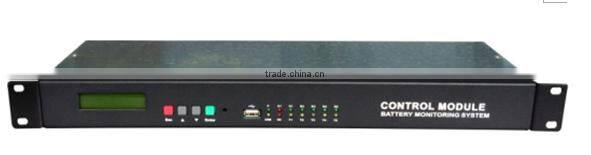

• Automatic analysis of battery monitoring data, find the batteries that need replacement or maintenance

(need CM module)

Environmental

Operating temperature:-5℃~50℃,5%~90%RH

Storage temperature: -10℃~70℃,5%~90%RH

Used for

2V,6V or 12V battery, capacity from 30AH to 2000AH

Power Requirements

CELLCHECK:powered from the battery,less than 60mA(2V) or 25mA(12V)

TC module:DC8~13V,2W

Convertor:DC8~13V,0.3W

CM module:85~264VAC,100V~370VDC,15W

Protection

Test load and power paths are fused

Measurement Range & Accuracy

String voltage:20~600V,±(0.5%+0.2V)

Cell voltage:1.5~2.5V,±(0.1%+1mV)

             9~15V,±(0.1%+10mV)

Internal resistance:100~65535uΩ

Battery temperature:5℃~50℃, ±1.5℃

Ambient temperature: -10℃~+70℃,±0.5℃
